1290 Infinity II High-Speed Pumps User Manual 35

3Using the Pump

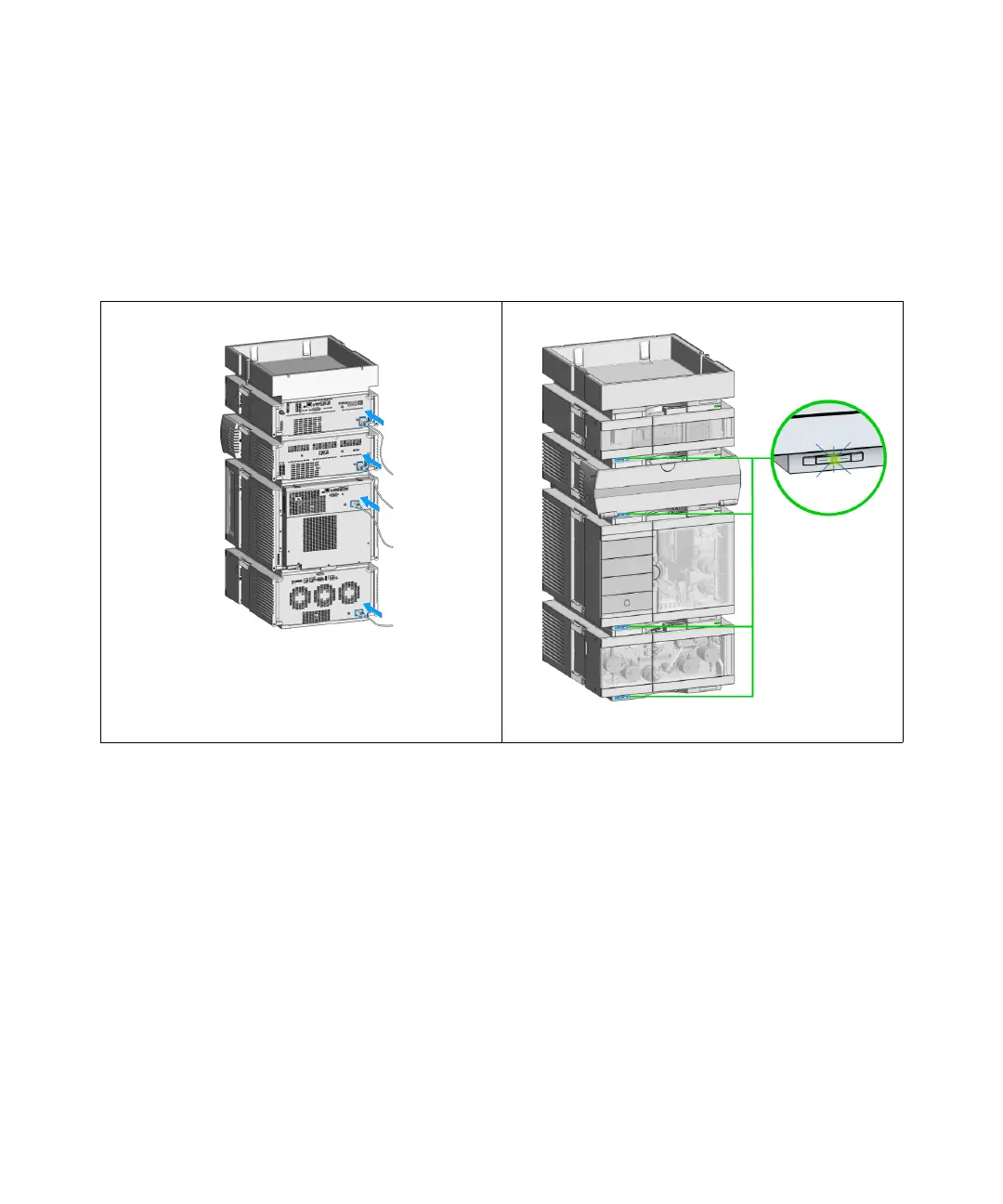

Turn on/off

This procedure exemplarily shows an arbitrary LC stack configuration.

Power switch: On
