Agilent Technologies 1290 Infinity II - Page 199

1290 Infinity II High-Speed Pumps User Manual 199
8Maintenance
Replace the Outlet Valve (G7132A)

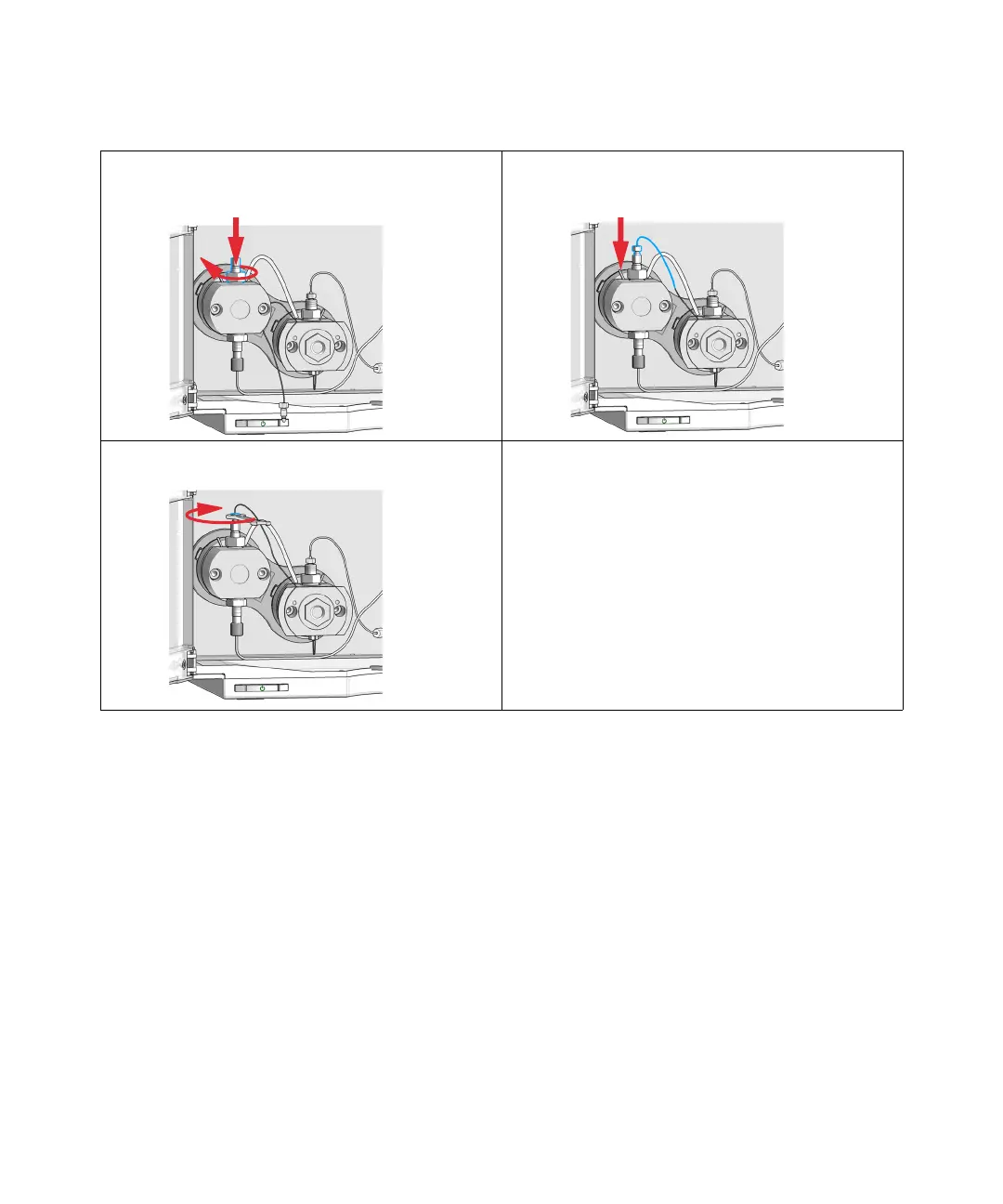

5 Insert the outlet valve into the pump head (1). Using a
torque wrench, set approx. 10 Nm and close the outlet
valve (2).
6 Connect the heat exchanger capillary to the outlet valve.
7 Tighten the screw of the heat exchanger capillary with a
torque wrench set to approx. 3 Nm.
Next Steps:
8 Reconnect all hydraulic connections, and power up the
pump.
9 Open the shutoff valves and purge the system to
remove air.
1.
2.
