Chapter 5 Straightness Measurements
Making the Measurement
5-26 Measurements Reference Guide

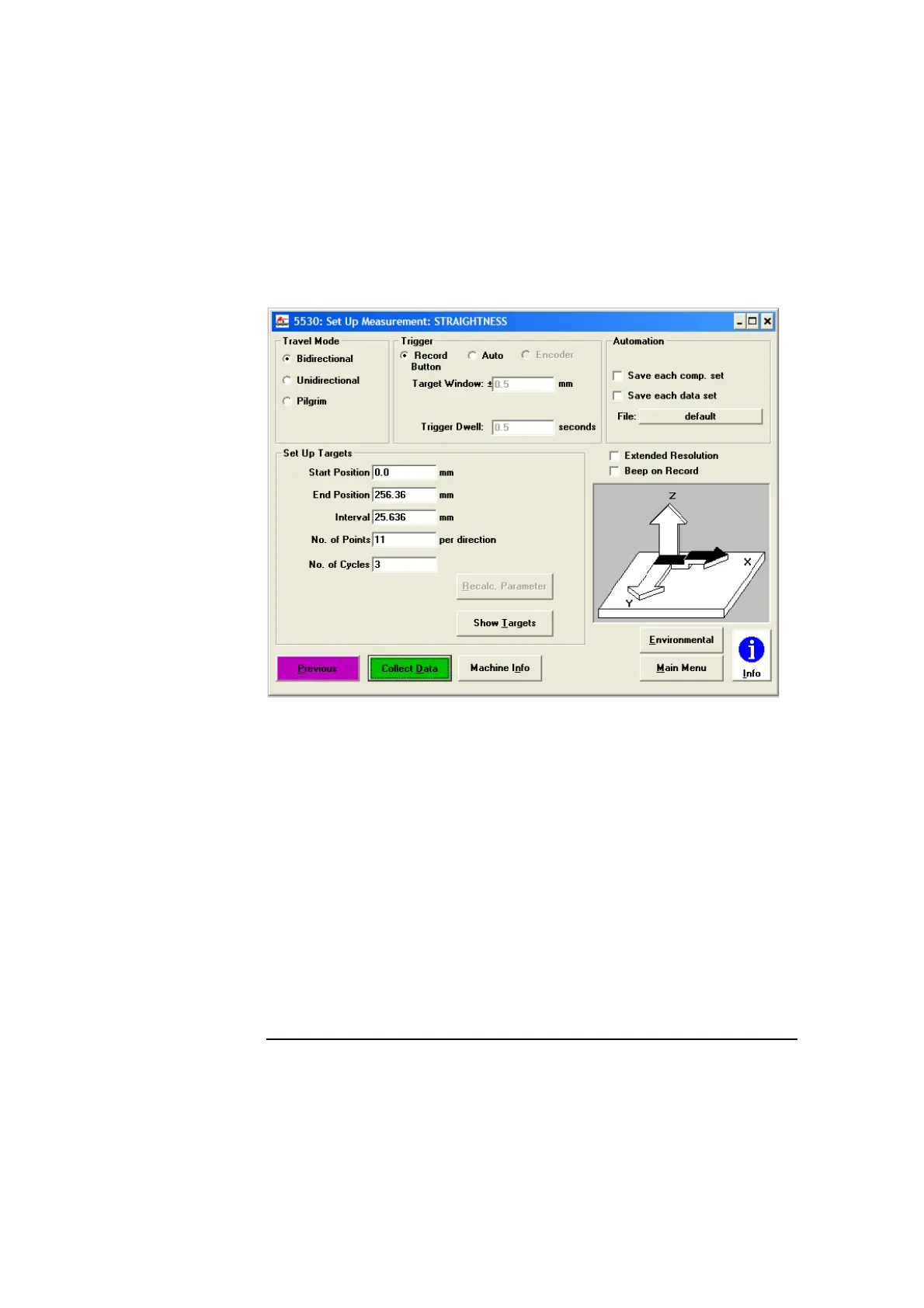

Figure 5-17. Set Up Measurement: STRAIGHTNESS screen
3 Complete the fields on the Set Up Measurement: STRAIGHTNESS
screen.
If necessary, use the online help.
4 Select Collect Data.
The Collect Data: STRAIGHTNESS screen is displayed (Figure 5-18).
