Chapter 5 Straightness Measurements
Making the Measurement
Measurements Reference Guide 5-27

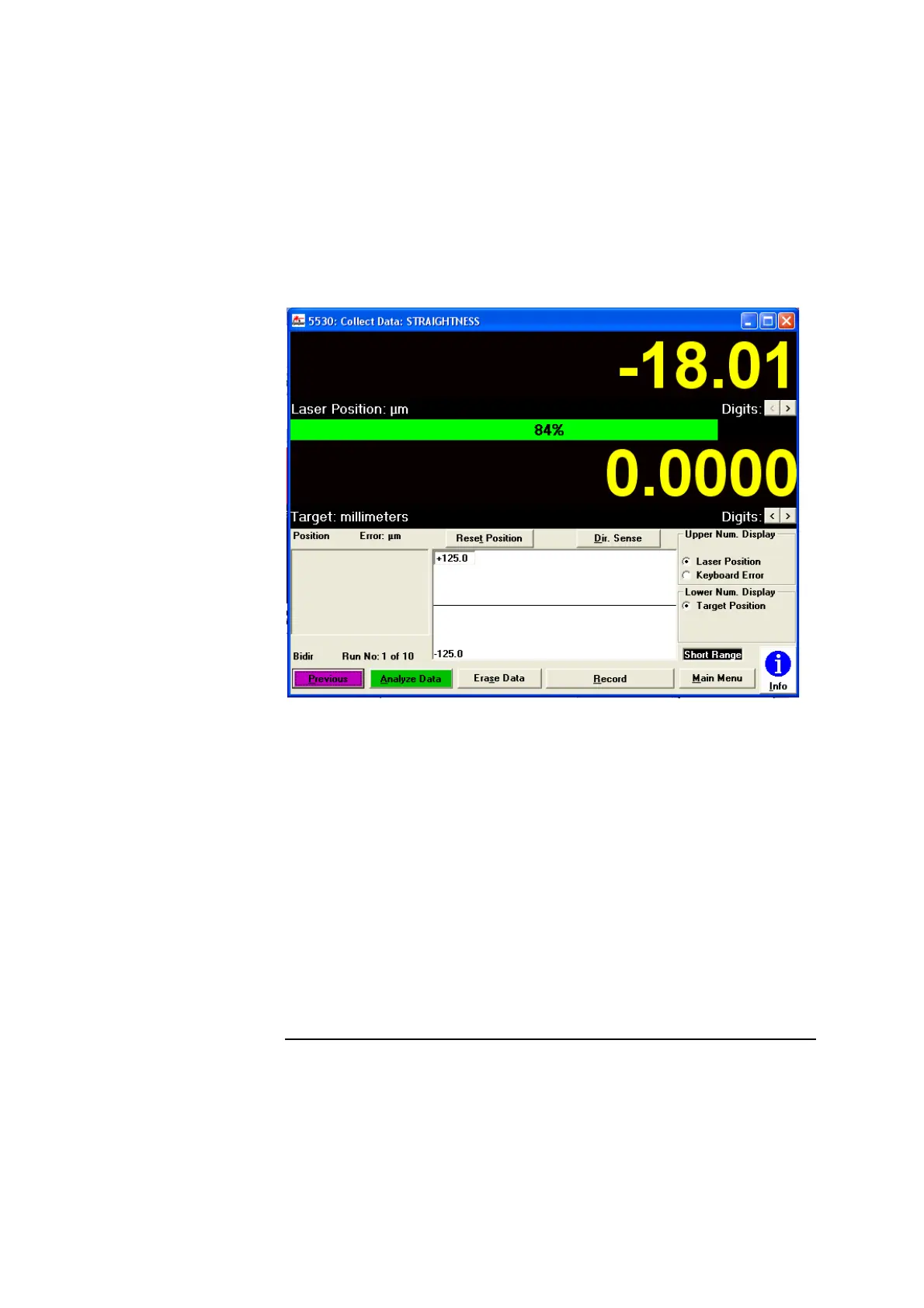

Figure 5-18. Collect Data: STRAIGHTNESS screen
5 On the Collect Data: STRAIGHTNESS screen, select Reset Position.
This tells the system that the current position of the reflector is the “zero”
point from which all distances will be measured.
If necessary, use the online help to complete the rest of the fields on this
screen.
6 Move the machine to the first measurement point.
