Chapter 7 Squareness Measurements in a Vertical Plane
Making the First Axis Measurement
7-10 Measurements Reference Guide
• In the Measurement Axis box, select the pair of axes that you are
measuring for squareness.
• In the Measurement Axis box, select the pair of axes that you will
measure first.
3 Select Set Up Meas.
The Set Up Measurement: SQUARENESS screen is displayed
(Figure 7-4).

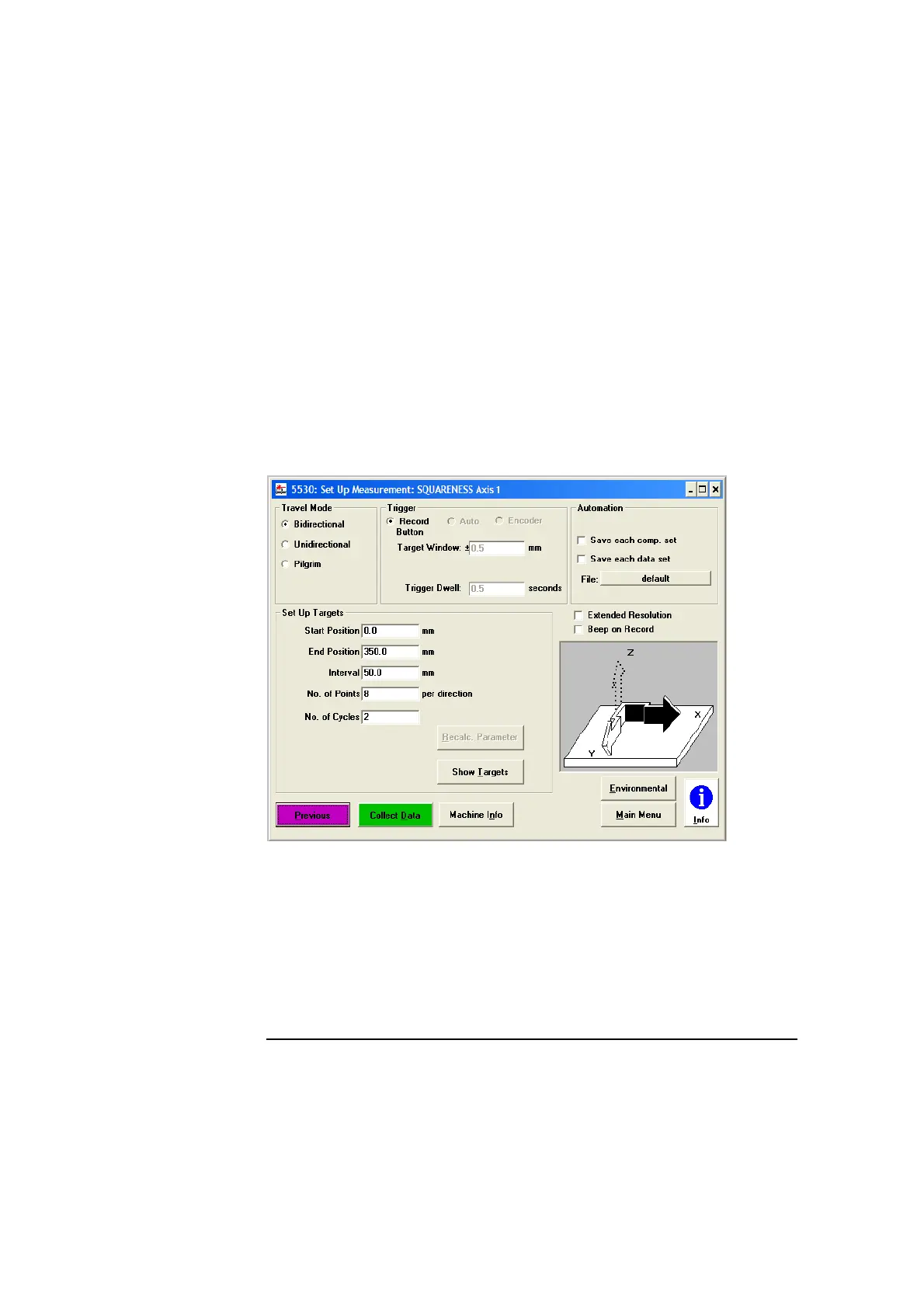

Figure 7-4. Set Up Measurement: SQUARENESS screen
4 Complete the fields on the Set Up Measurement: SQUARENESS screen.
If necessary, use the online help.
5 Select Collect Data.
The Collect Data: SQUARENESS screen is displayed (Figure 7-5).
