Chapter 7 Squareness Measurements in a Vertical Plane
Making the First Axis Measurement
Measurements Reference Guide 7-11

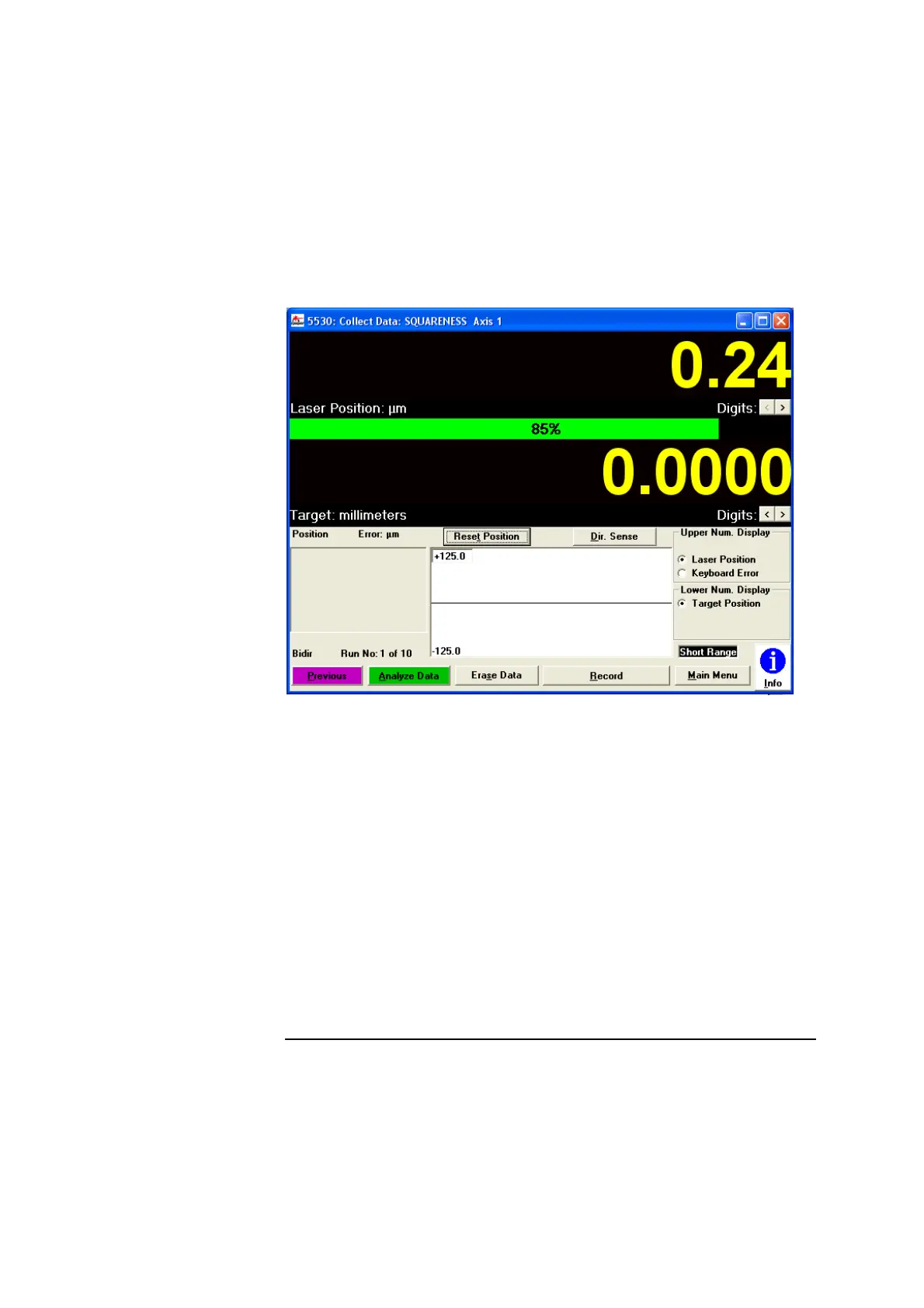

Figure 7-5. Collect Data: SQUARENESS screen
6 Complete the fields on the Collect Data: SQUARENESS screen.
If necessary, use the online help.
7 Select Reset Position.
This tells the system that the current position of the reflector is the “zero”
point, from which all distances will be measured.
8 Move the machine to the first measurement point.
9 Select Record.
If you are using the optional remote control unit, press the Record button.
