Chapter 3 T
imebase Measurements
Setting Up for the Measurement
3-4
Measurements Reference Guide

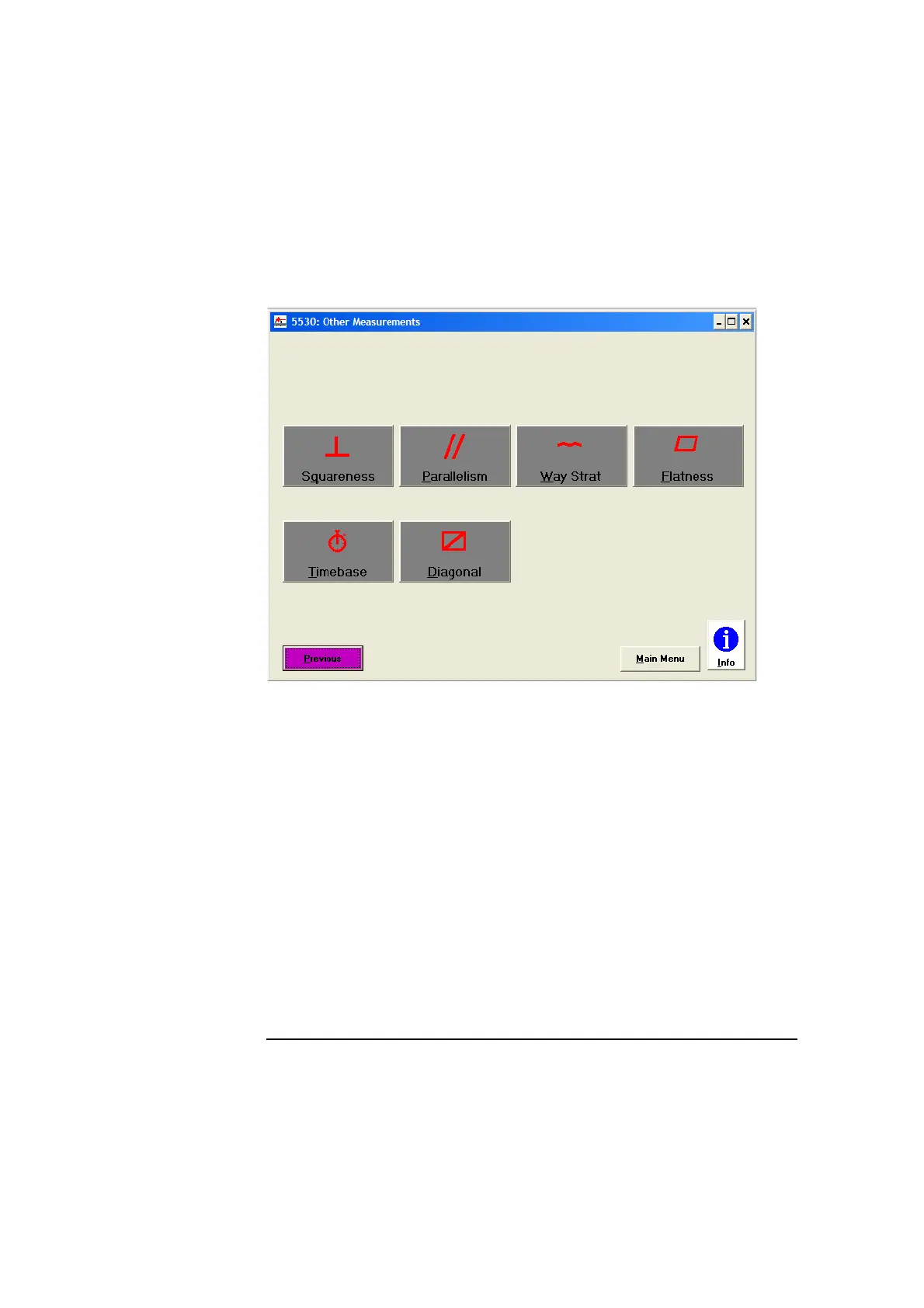

Figure 3-1. Other Measurement
s screen
6
On the Other Measurements screen, select Timebase.
The Set Up Laser: TIMEBASE
screen
(Figure
3-2) is displayed.
