Chapter 3 Timebase Measurements
Setting Up for the Measurement
3-6 Measurements Reference Guide

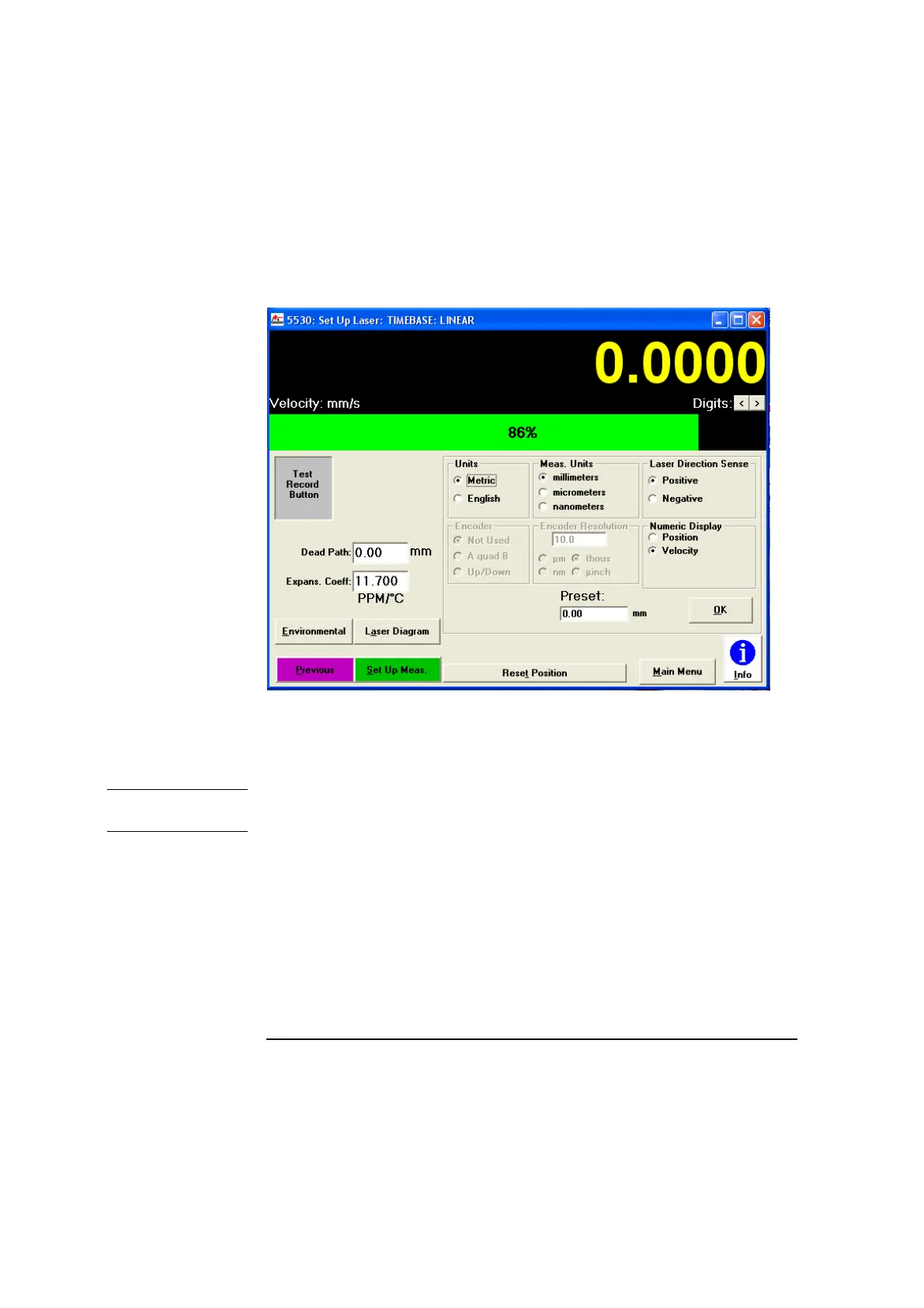

Figure 3-3. Set Up Laser: TIMEBASE, Change Parameters screen
If necessary, use the online help.
NOTE The following options are not available for timebase measurements:
encoder, averaging, and extended resolution.
If you selected linear, complete the Set Up Environmental Compensation
screen following steps 7 through 9 in “Setting Up for the Measurement” in
Chapter 2.
If you selected straightness, complete the instructions in “Positioning the
Laser Head and Target Machine” in Chapter 5.
You are now ready to mount and align the optics on the target machine;
continue with the next section.
