Agilent Technologies 6850 Series II - Page 214

Routine Maintenance: Detectors
Maintaining the flame photometric detector (FPD)
Released: March 2004 6850 Series II GC User Information page 214 of 256

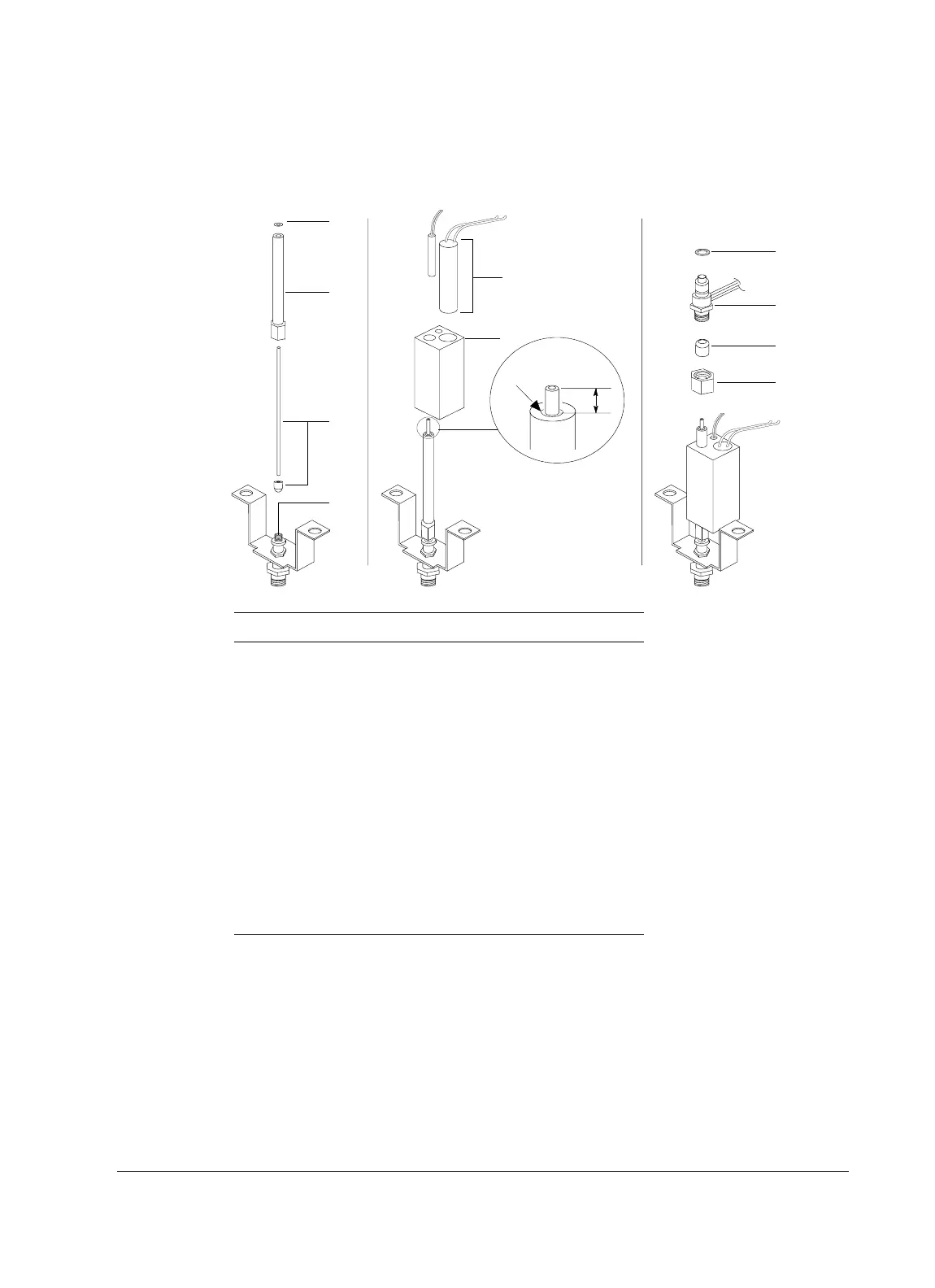

Parts identification
Item Description Part no.
1 Base assembly weldment
2 Gigabore liner/ferrule assembly 19256-60590
3 Transfer tube 19256-80550
4 O-ring, Kalrez, transfer tube 0905-1101
5 Lower heater block
6 Heater/sensor assembly
7 Nut, brass, 1/4-inch 0100-0056
8 Ferrule, Vespel, 1/4-inch id 5080-8774
9 Jet cartridge G1535-80500
10 O-ring, Kalrez, jet cartridge 0905-1103
5
6
3 to 6 mm
7
8
9
10
1
2
3
4
4
