Installation
Prepare the cryogenic oven cooling system
Released: March 2004 6850 Series II GC User Information page 248 of 256
Install the cooling coil
1. Inside the oven, locate the coil bracket at the bottom center of the oven. It
is secured by the same screw that holds the bottom of the heater shroud.
2. Place the cooling coil in the oven with the fitting at the upper left. The
bottom center of the coil should rest on the coil bracket.
.
3. Remove the stainless steel plug from the fitting on the end of the restrictor
tube. Leave the rest of the fitting in place.
4. Connect the fittings on the restrictor tube and the coil. Tighten the
1/16-inch nut finger tight.

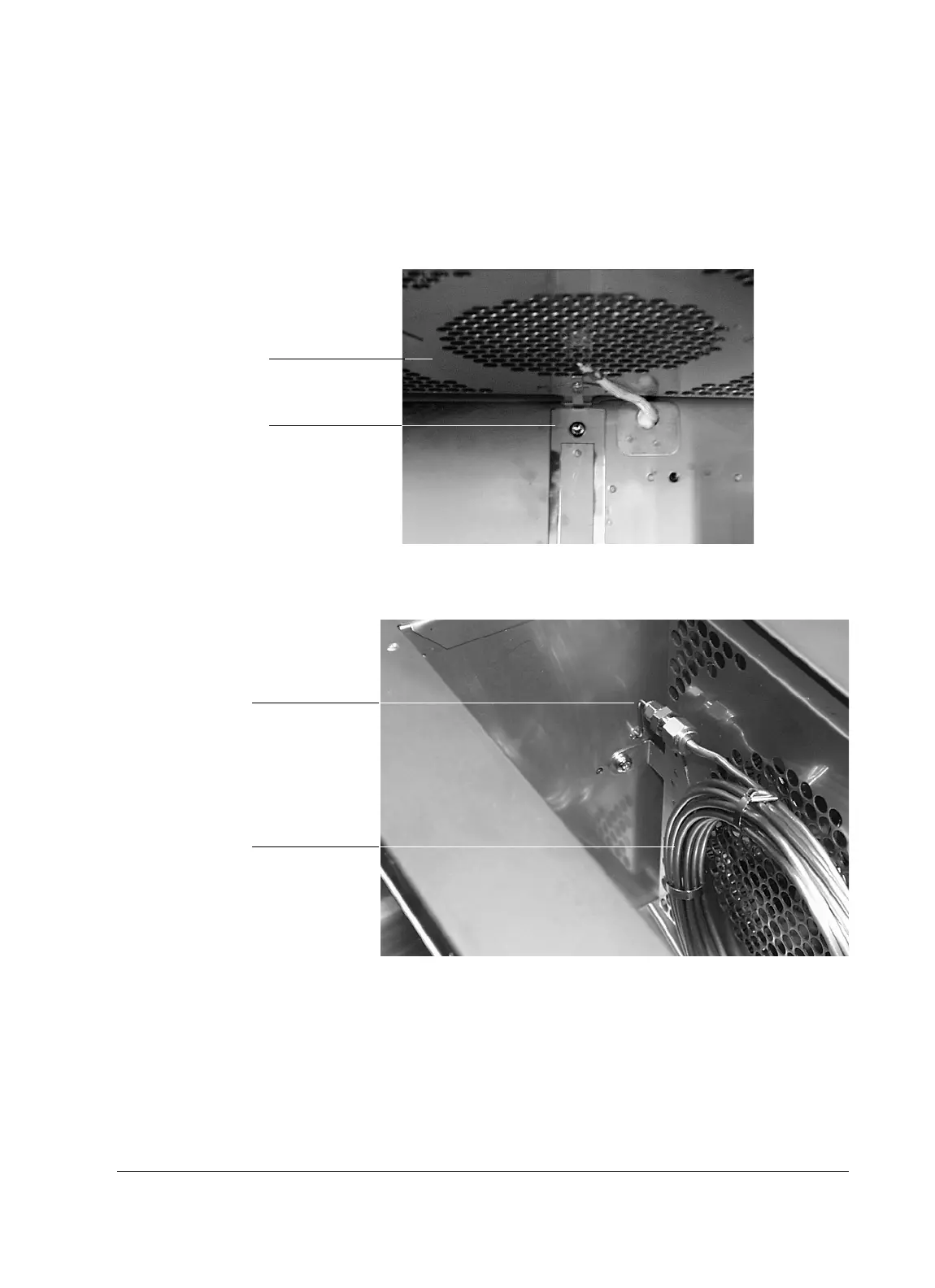

Heater shroud
Coil bracket
Cooling coil
Restrictor tube
