24 Agilent 8453 Dissolution Testing System Installing and Operating Manual
2Setting Up
Setting Up Your Sampling System
There are eight colors for identifying the tubing in the different vessels and
flow cells. If you assemble the tubing system according to Table 8 these colors
correspond to the colors in the software for the dissolution profiles. However,
the dissolution testing software cannot show brown and uses black for these
brown fittings.

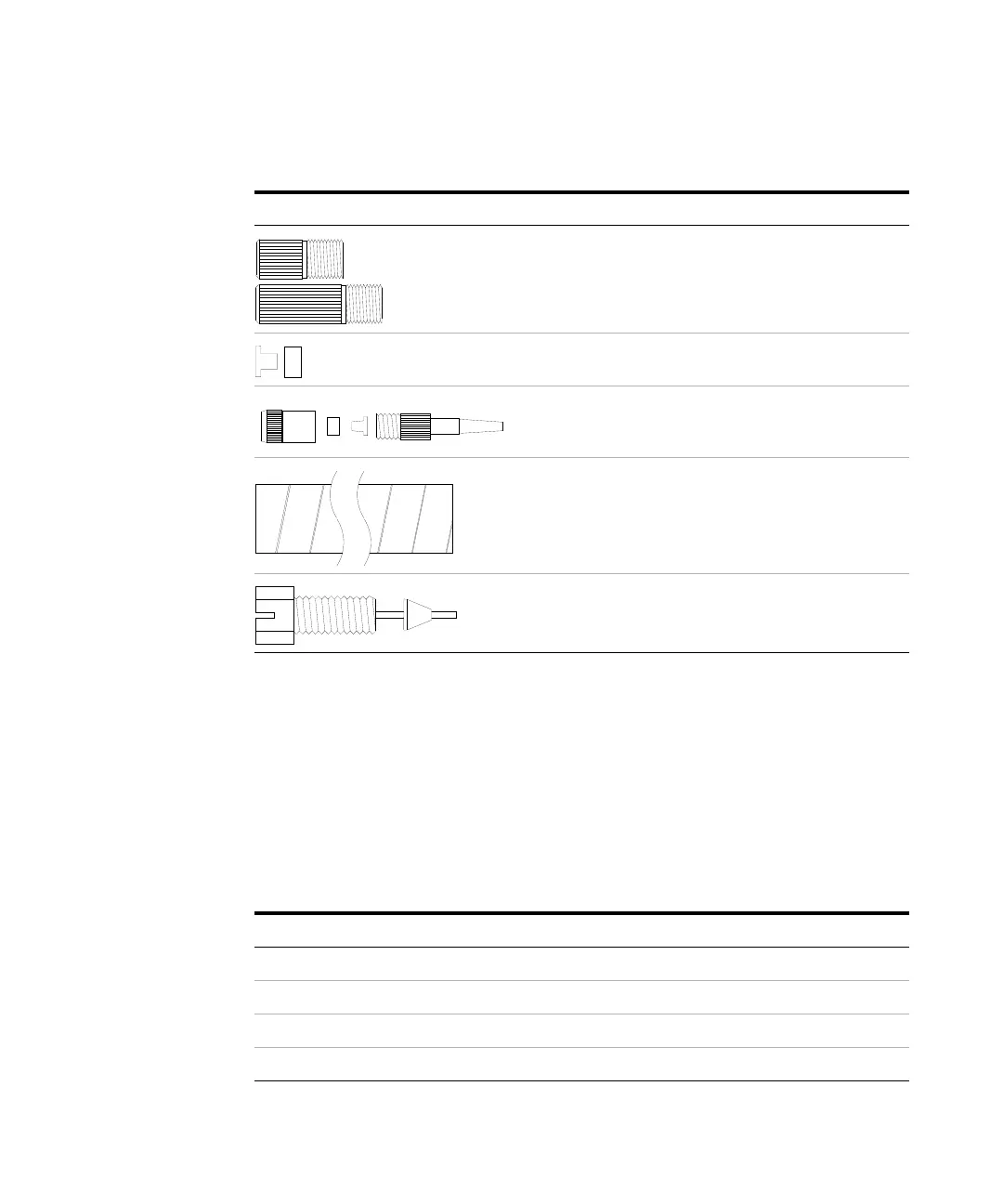

Cell fittings, short and long
Cell ferrule
Conical adapter
Spiral tubing wrap
Fitting and ferrule for connection to valve unit
* For more detailed descriptions and part numbers, see UV-visible section of Agilent’s Accessories
and Supplies for UV-visible Spectroscopy Catalog.
Tab le 8 Color Coding
Color Vessel
Brown Vessel 1
Red Vessel 2
Yellow Vessel 3
Green Vessel 4
Tab le 7 Descriptions of Fittings (continued)
Parts Description
*
To Next Page
