60 Agilent 8453 Dissolution Testing System Installing and Operating Manual
2Setting Up
Installing Your Multibath System
Connecting Cables
Check you have the cables shown in Table 12.
The cables connect to the rear panels of the valve-pump controller, valve units,
pumps and spectrophotometer.
The valve-pump controller can control up to four valve units and pumps. You
connect the valve unit and its pump to the same channel.
Tab le 16 Cables for Valve Unit and Controller
From Controller: To Connector:
Power socket Line-power source
GPIO-to-controller Agilent 8453 spectrophotometer
Controller-to-Valve 1 through 4 Valve units
Controller-to-Pump 1 through 4 Peristaltic pumps

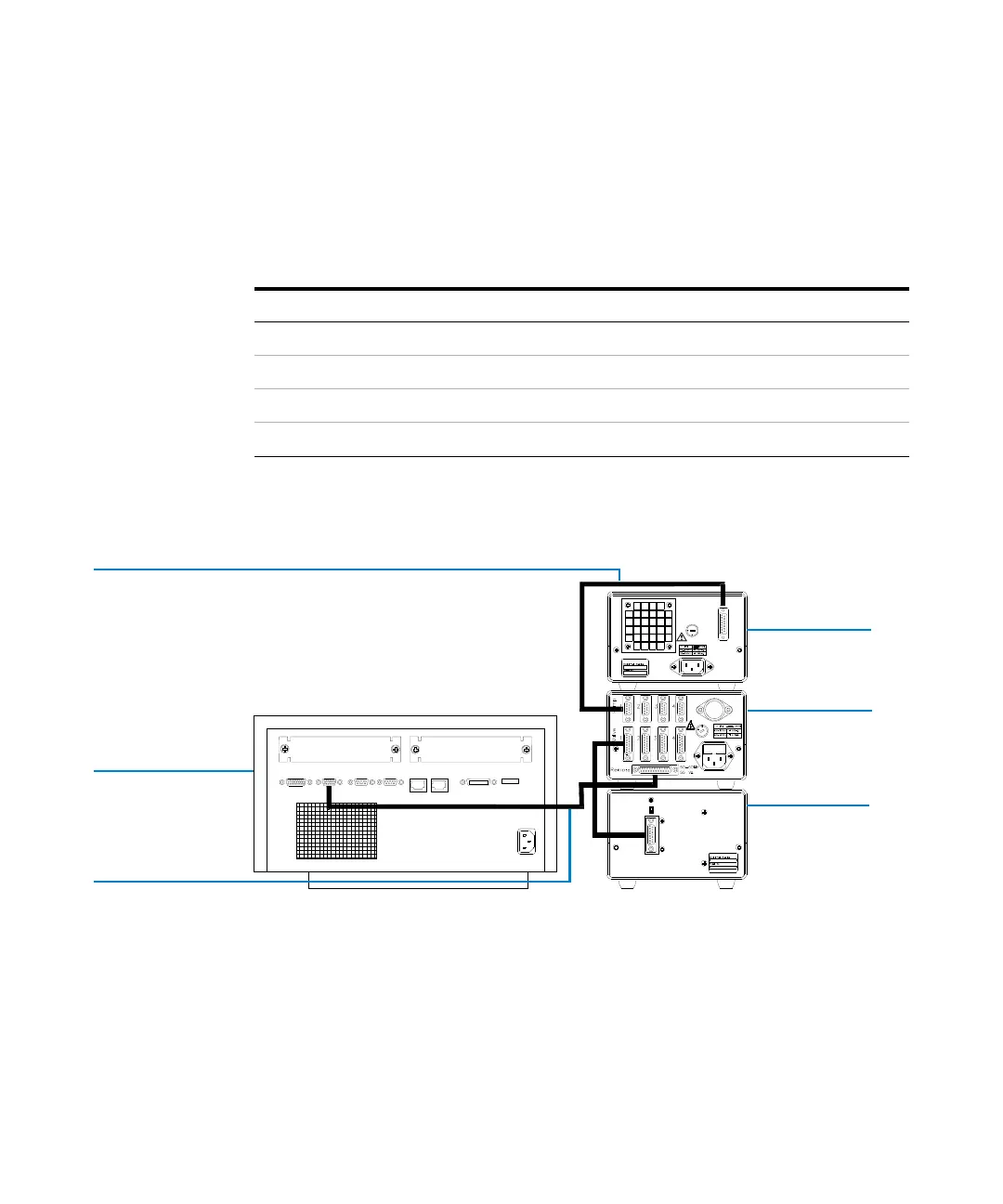

Figure 24 Connecting Cables
Manual Advance
Remote/Manual
Controle
Remote
50-60 Hz
90 VAmax.
Spectrophotometer
GPIO-to-controller cable
GPIO-to-controller cable
Controller
Valve unit
Pump
