Installing a Valve-based Sampling System
Stage 2: Installing the Pump Tubing
The pump tubing for the pump is 2.06 mm i.d. The pump includes one pack of
pump tubing, 12 pieces per pack (part number 5041-2166). There are three
fixing-collars on each piece of pump tubing. This allows you to use the pump
tubing in two positions.
1 Put the pump tubing in the tubing-cassette, locating the fixing-collars on
each side of the cassette in the locating holes. Make sure that the
fixing-collars are pointing upwards and the tubing cannot slide out of the
cassette.
2 Repeat for each of the cassettes.
Stage 3: Installing the Tubing Cassette
1 Put the tubing cassette on the pressure-wheel assembly by placing the
cassette on the mounting pivot, see Figure 15).

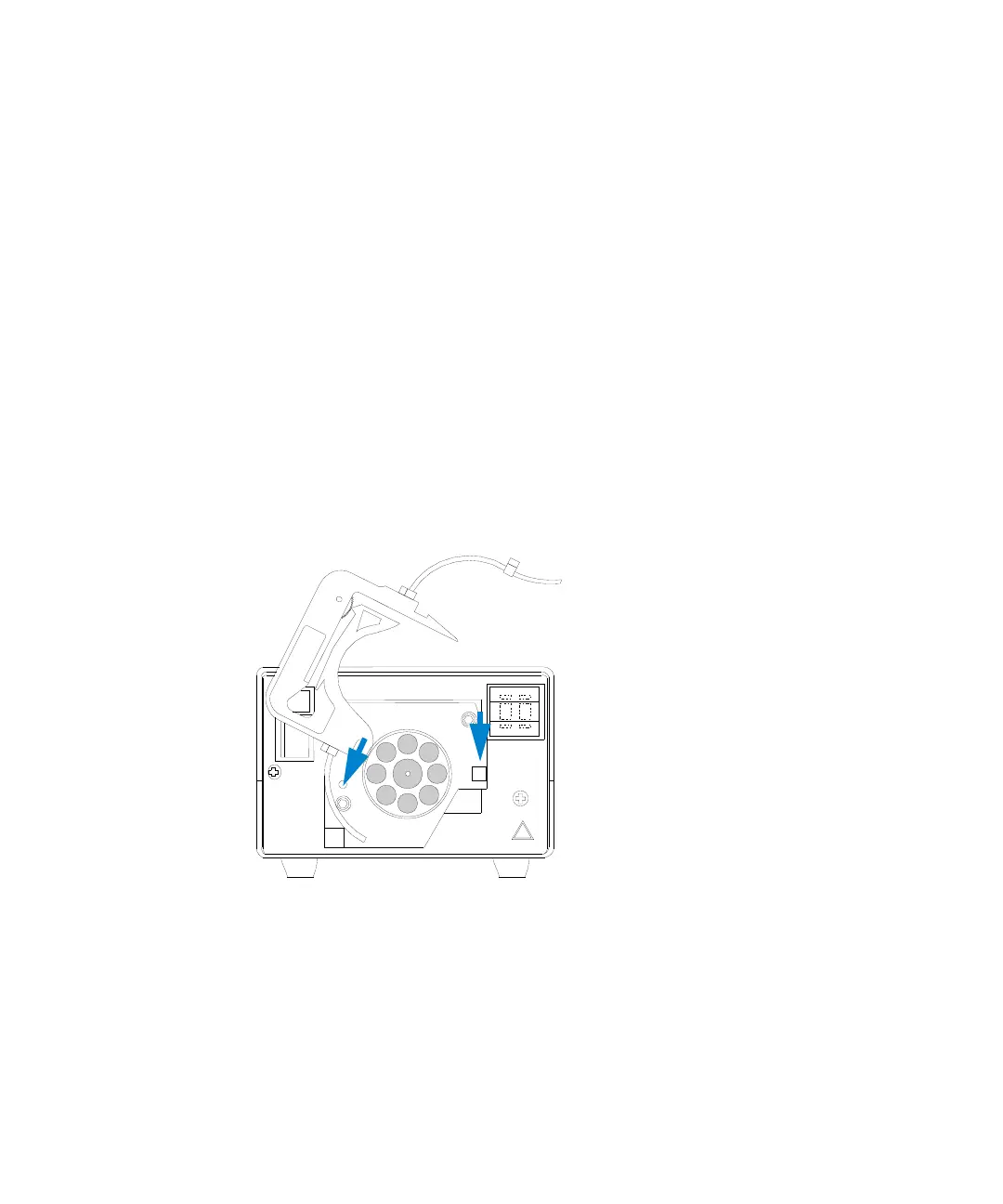

Figure 15 Placing Tubing-Cassette
