Service Guide 3-45
8719ET/20ET/22ET Adjustments and Correction Constants
8719ES/20ES/22ES API Spur Avoidance and 100 kHz FM Sideband Adjustment
RF Network Analyzers

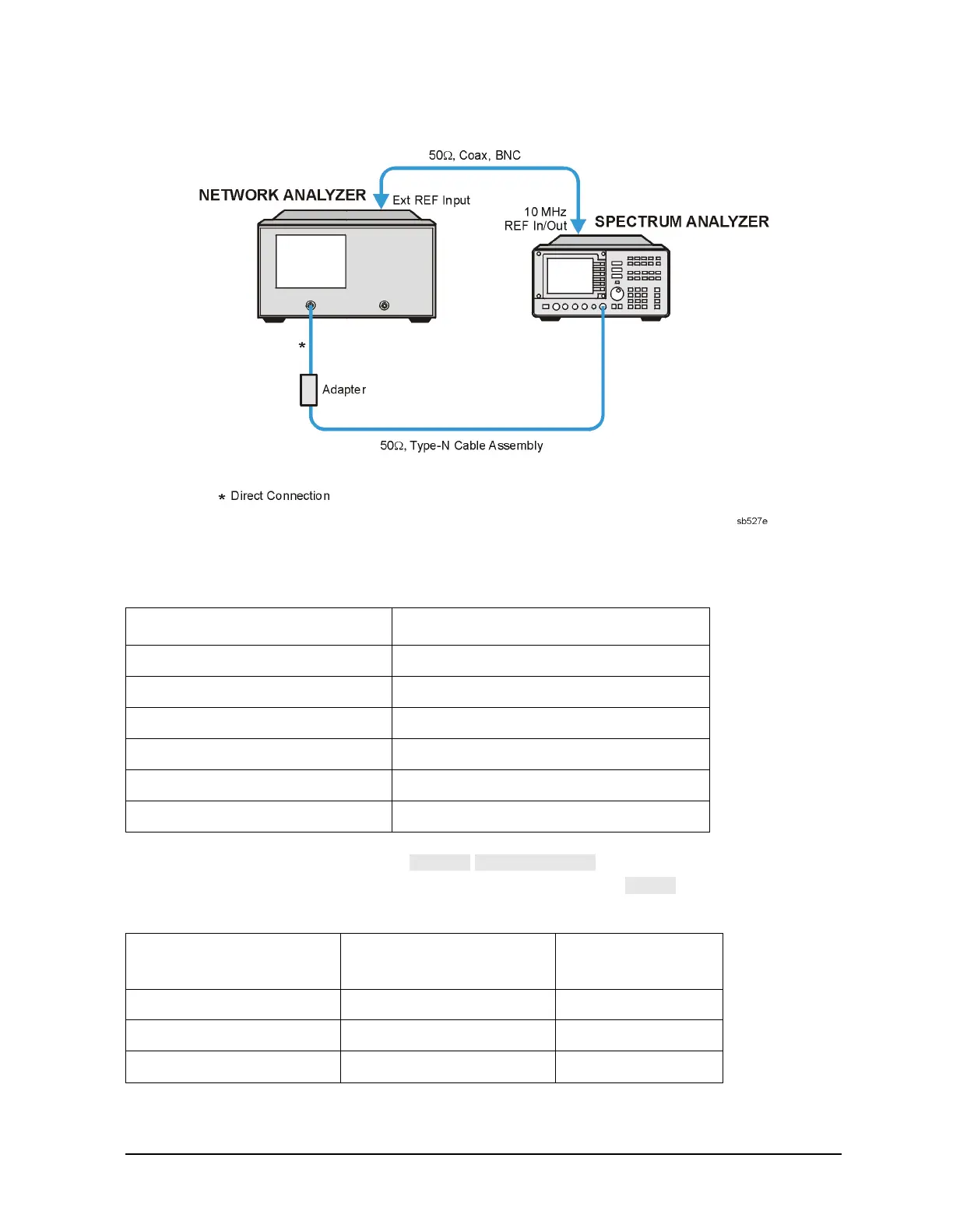

Figure 3-11 Test Setup for Sideband Adjustment
2. Set the spectrum analyzer measurement parameters to the values in Table 3-6:
3. On the spectrum analyzer, press and enter the
spectrum analyzer frequency from # 1 from Table 3-7, press .
Table 3-6 Spectrum Analyzer Setup Values
Parameter Value
Reference Level 0 dBm
Scale 10 dB/division
Attenuator (ATTN) 10 dB
Video Bandwidth (VBW) 1 kHz
Resolution Bandwidth (RBW) 300 Hz
Span 100 Hz
Table 3-7 Frequency Inputs
Frequency Network Analyzer Frequency Spectrum Analyzer
Frequency
# 1 386 MHZ 385.899997 MHZ
# 2 530 MHZ 529.899997 MHZ
# 3 698 MHZ 697.899997 MHZ
