GSM Mobile Measurements
13.Press the Graph (F4) key to access the full graph of the uplink burst.

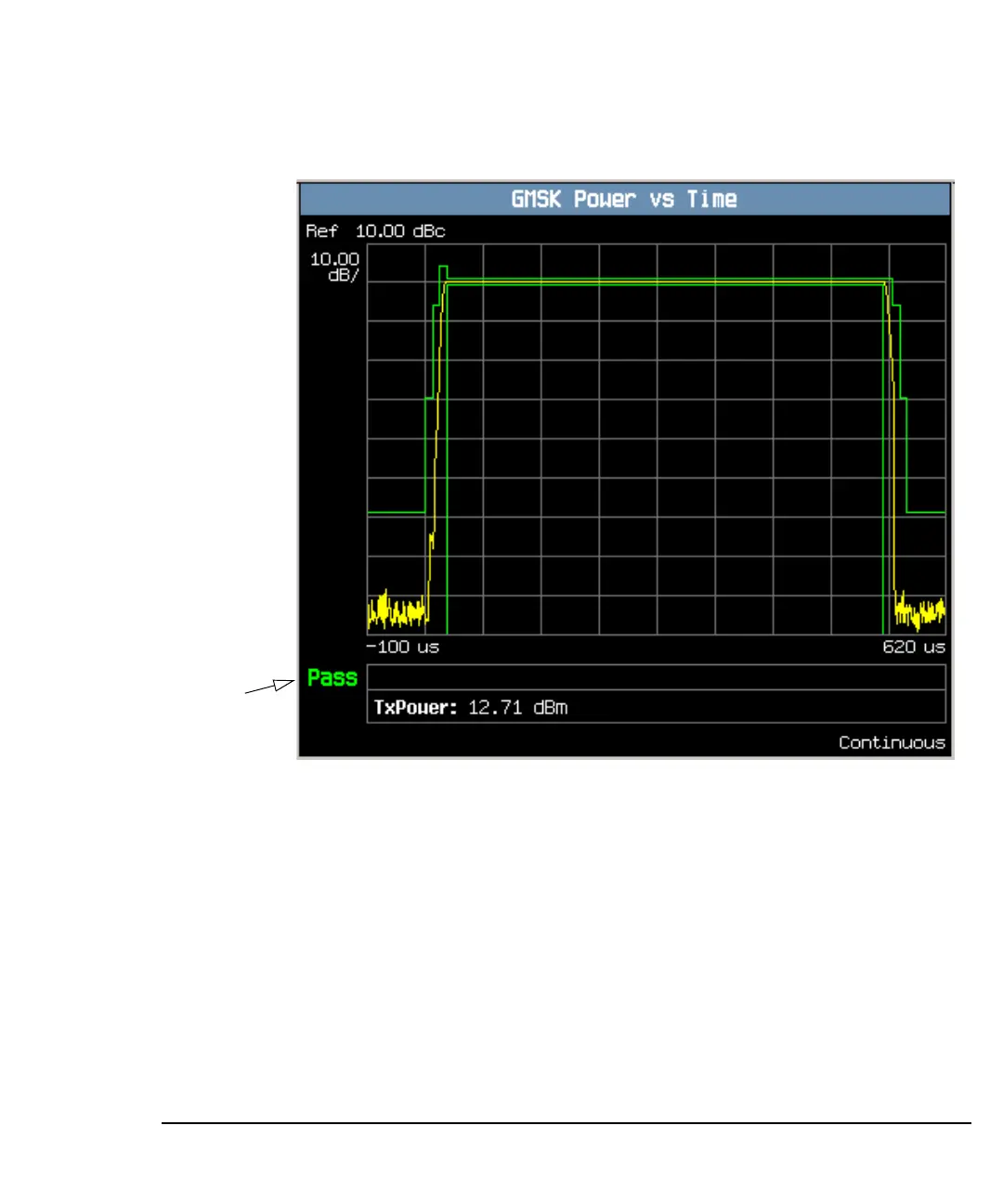

A typical full graph view of the burst is shown above. An overall pass/fail indicator
is positioned in the bottom left corner of the display:
• The text “Pass” is shown in a green-colored font if the measurement has passed
the entire mask.
• The text “Fail” is shown in a red-colored font if the measurement has failed any
part of the mask.
Overall
Pass/Fail
indicator
