cdma2000 Measurement Procedures

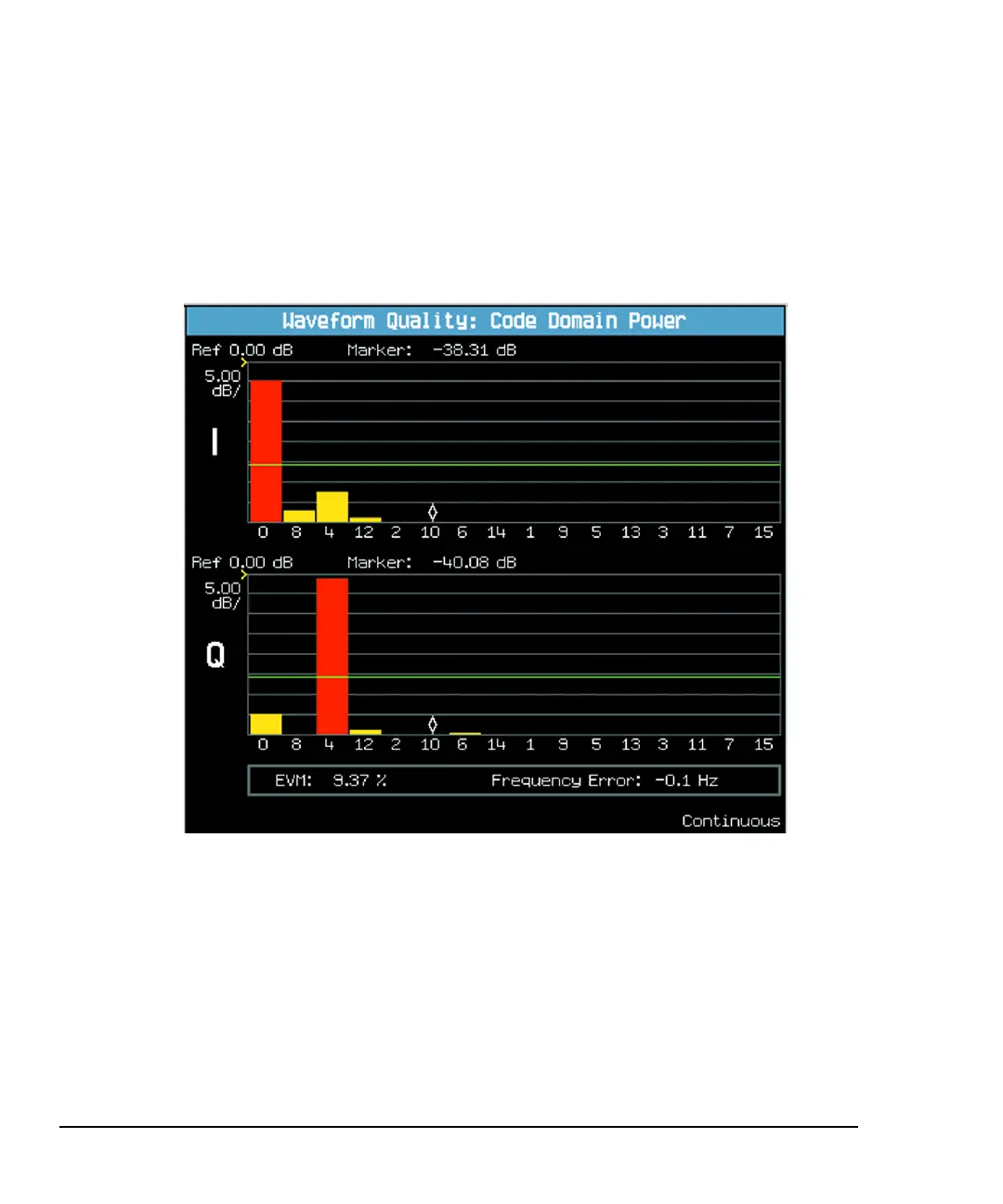

2. Press the Code Domain Power (F3) key. A typical display is shown below.
3. Press the Graph Control key (
F6). Change the value in the Limit field.
Note that both green lines, indicating the I and Q channel noise limits, move
together.
4. Press the Return key (
F6).
5. Press the Code Domain Power + Noise (
F4) key. A typical display is shown
below.
The red bars indicate power levels
The yellow bars indicate noise levels
