cdma2000 Measurement Procedures

6. Return to the numeric Rho display at any time by pressing the Numeric Rho key

(

F2).

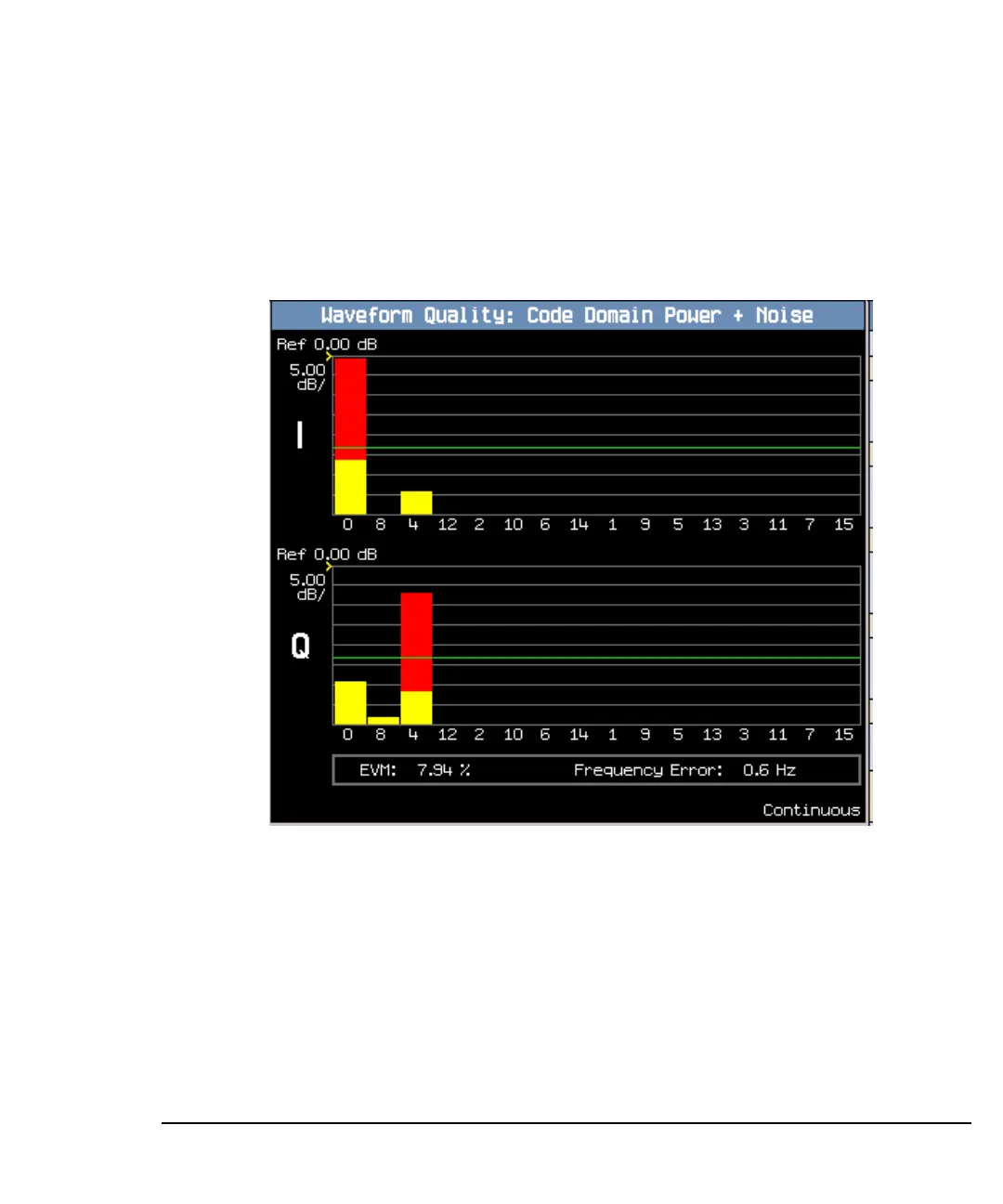

The red bars indicate power levels

The yellow bars indicate noise levels
