Pump Head Procedures
Disassemble the Primary Pump Head
CAUTION
Damage of pump piston
The pump piston is made of ZrO
2
-based ceramic, which is a very hard and resistant
material, but it is sensitive to shearing forces from the side.
➔ Do not try to remove the pump piston from the rear.
➔ Do not use the piston for removing pump seals.

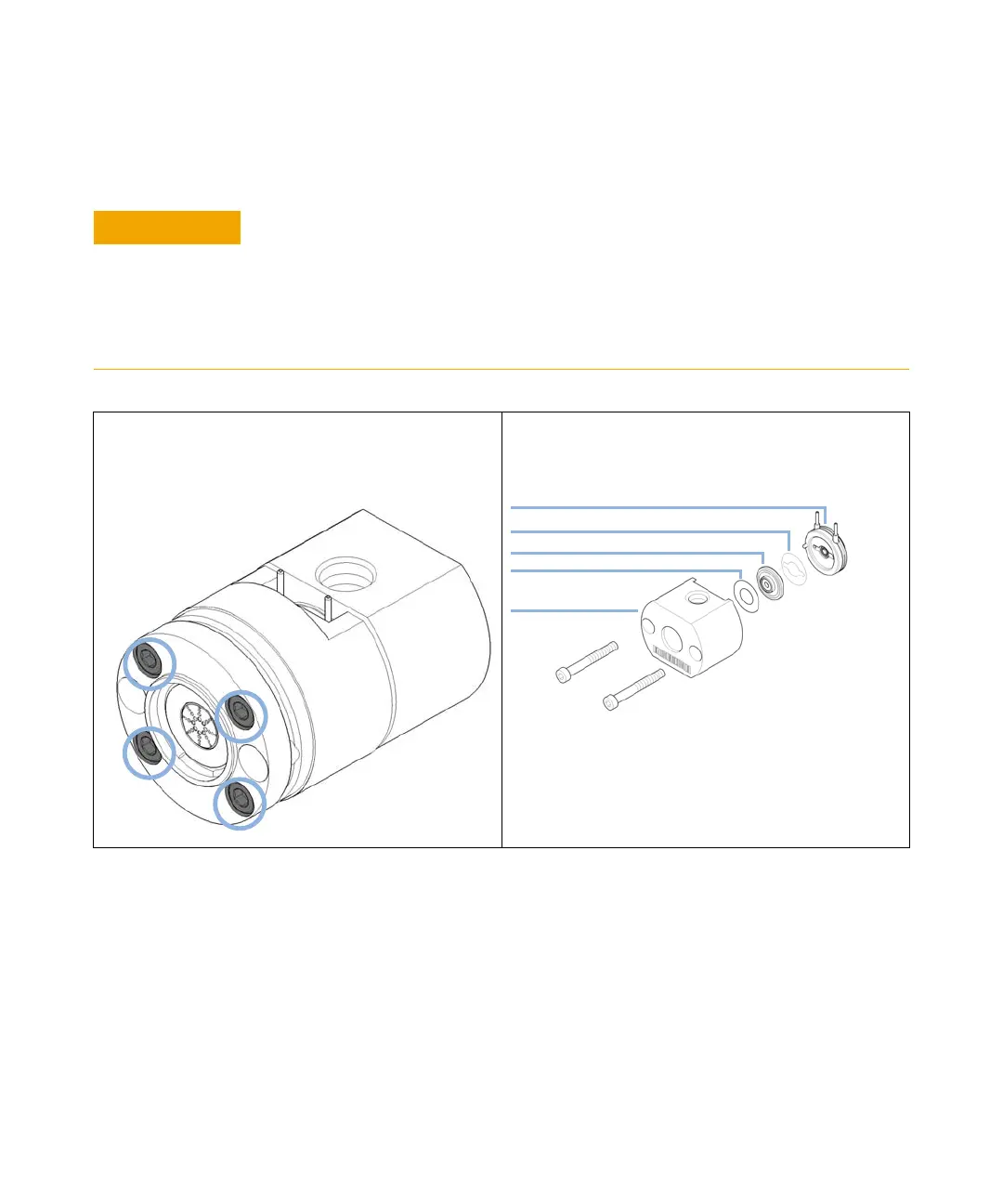

1 For disassembling the pump head, remove the 4 hex
screws at the rear of the pump head.
2 Remove the front part of the pump head including pump
chamber housing with pump seal, distance sheet,
support ring, seal holder including backup ring, and the
gasket.
EjbeX]VbWZg
]djh^c\
9^hiVcXZh]ZZi
HZVa]daYZg
HZValVh]\Vh`Zi
Hjeedgig^c\
