190 Agilent 1290 Infinity II Flexible Pump User Manual
11 LAN Configuration
What You Have To Do First
What You Have To Do First
The module has an on- board LAN communication interface.
1 Note the MAC (Media Access Control) address for further reference. The
MAC or hardware address of the LAN interfaces is a world wide unique
identifier. No other network device will have the same hardware
address. The MAC address can be found on a label at the rear of the
module underneath the configuration switch (see Figure 24 on
page 190).

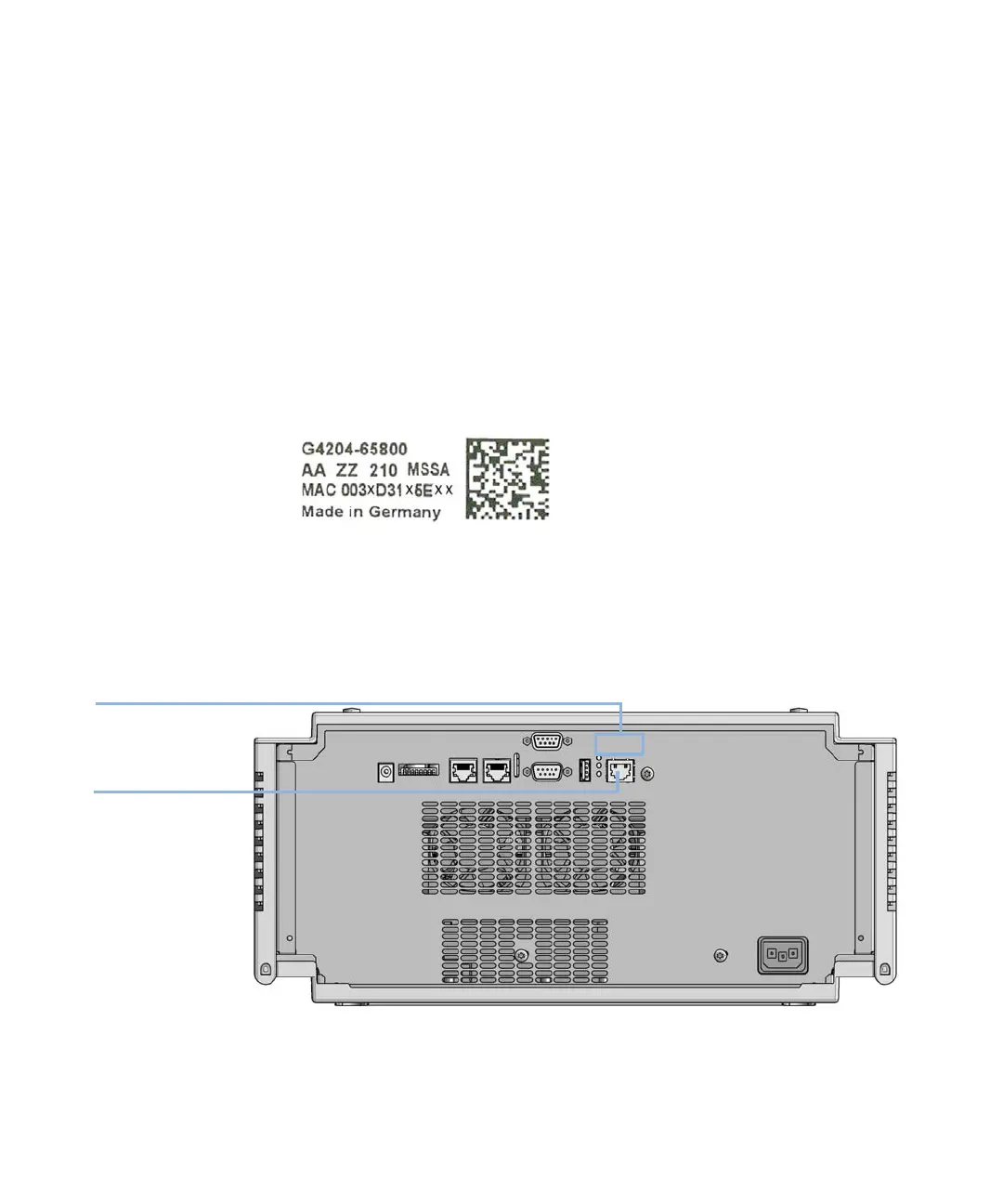

Figure 23 MAC label
2 Connect the instrument's LAN interface (see Figure 24 on page 190) to
• the PC network card using a crossover network cable (point- to- point)
or
• a hub or switch using a standard LAN cable.
Figure 24 Location of LAN interfaces and MAC label
Part number of the pump main board
Revision code, vendor, year and week of assembly
MAC address
Country of origin
A6C^ciZg[VXZ
B68aVWZa
