166 Agilent 1290 Infinity II Flexible Pump User Manual
9 Identifying Cables
Remote Cables
Remote Cables
ERI (Enhanced Remote Interface)
5188- 8029 ERI to general purpose
5188- 8044 ERI to ERI (Connector D_Subminiature 15 pin)

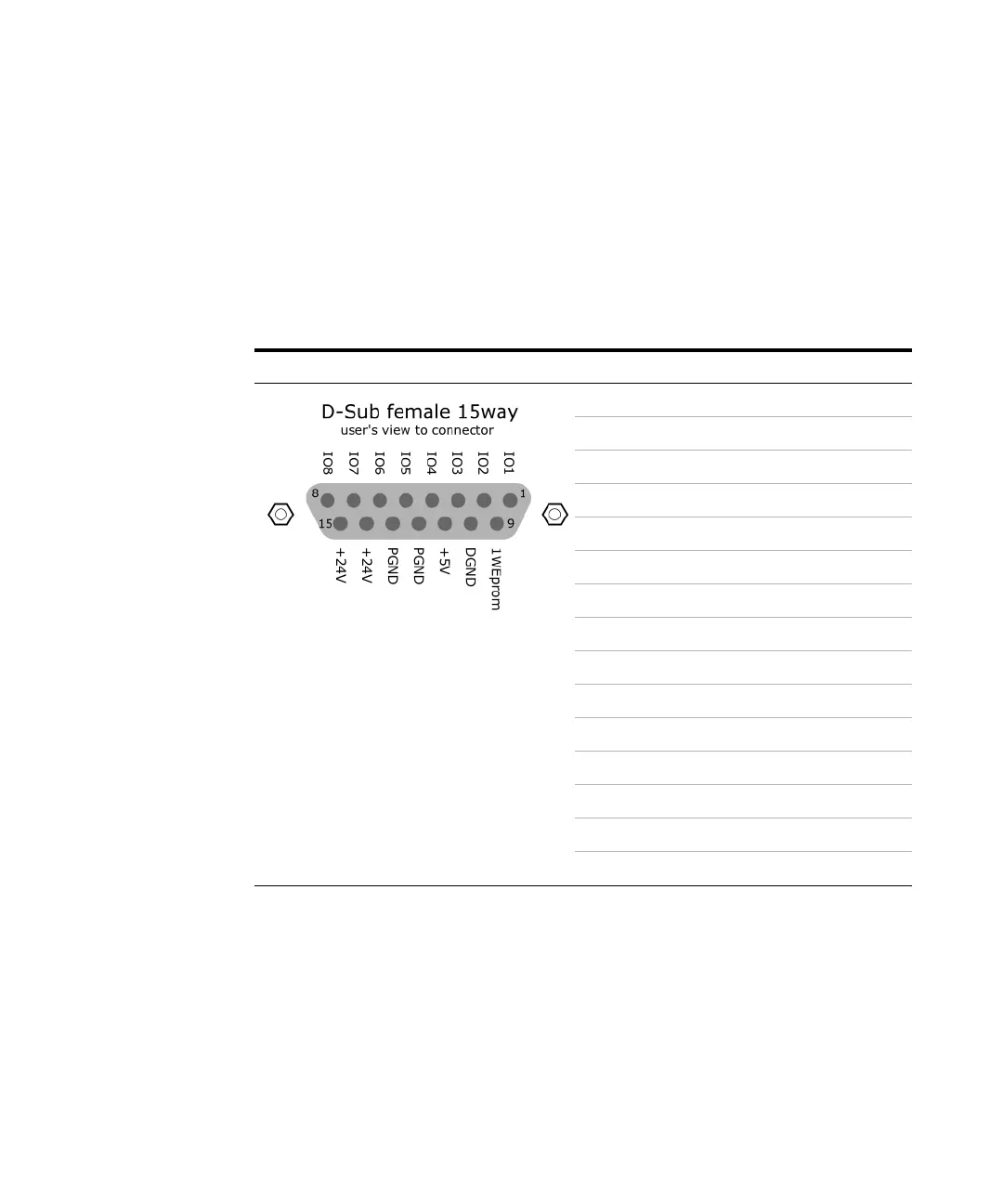

p/n 5188-8029 pin Enhanced Remote Classic Remote
1 IO1 START REQUEST
2 IO2 STOP
3 IO3 READY
4IO4 POWER ON
5 IO5 NOT USED
6 IO6 SHUT DOWN
7 IO7 START
8 IO8 PREPARE
91wire DATA
10 DGND
11 +5V ERI out
12 PGND
13 PGND
14 +24V ERI out
15 +24V ERI out
