Agilent Technologies Infinity II 1290

Agilent 1290 Infinity II Flexible Pump User Manual 167
Identifying Cables
9
Remote Cables
5188- 8045 ERI to APG (Connector D_Subminiature 15 pin (ERI),
Connector D_Subminiature 9 pin (APG))

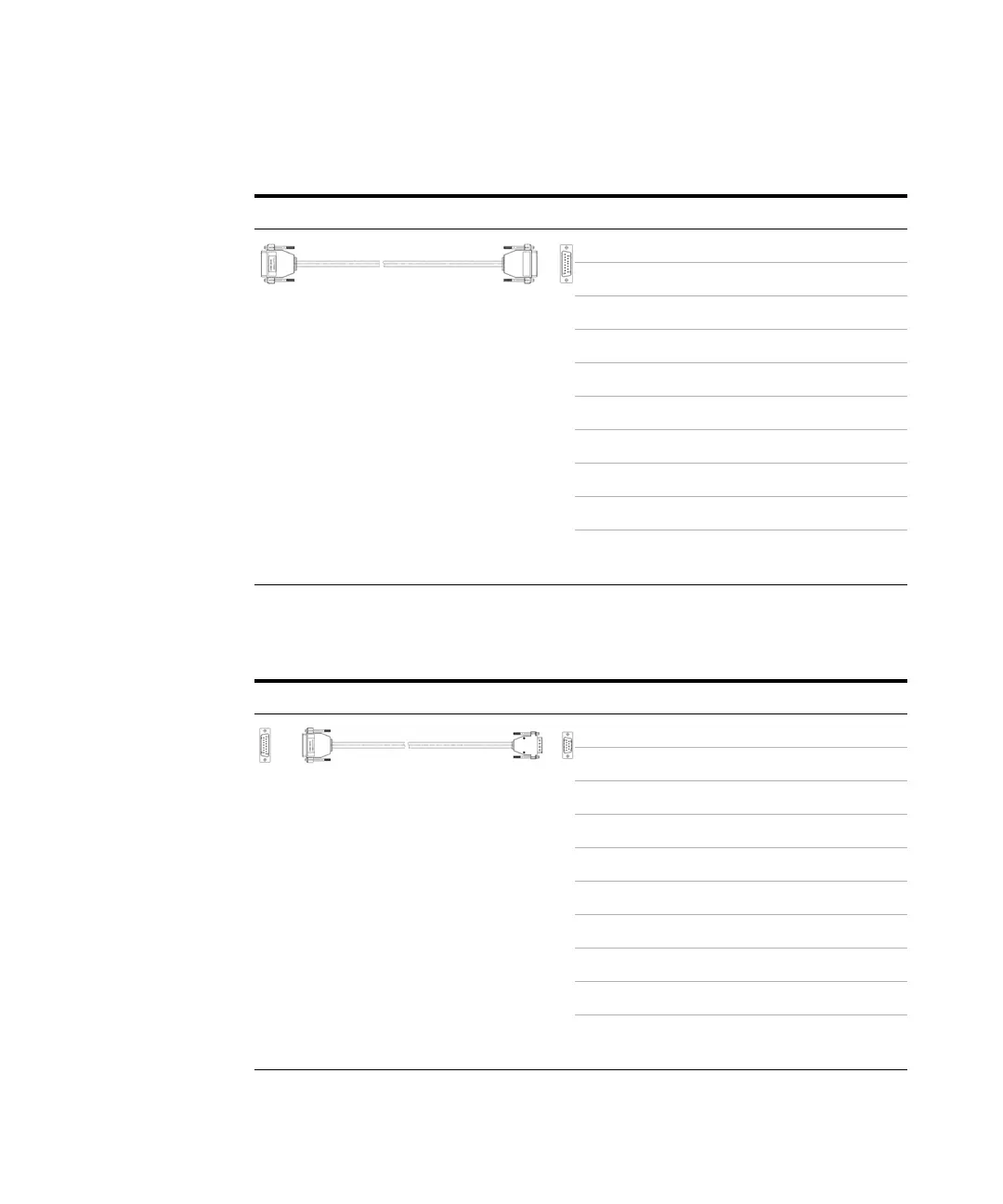

Tabl e 3 5188-8044 ERI to ERI
p/n 5188-8044 Pin (ERI) Signal Pin (ERI)
10 GND 10
1 Start Request 1
2Stop 2
3Ready3
5 Power on 5
4Future4
6 Shut Down 6
7Start 7
8 Prepare 8
Ground
Connection
Cable Shielding NC
p/n 5188-8045 Pin (ERI) Signal Pin (APG)
10 GND 1
1 Start Request 9
2Stop 8
3Ready7
5 Power on 6
4Future5
6 Shut Down 4
7Start 3
8 Prepare 2
Ground
Connection
Cable Shielding NC
