Agilent 1290 Infinity II Flexible Pump User Manual 97
Maintenance
7
Install the Jet Weaver
Install the Jet Weaver
When The optional Jet Weaver 380 µL for 1290 Infinity Quaternary Pump (G4204-68000) is available for
applications which require highest mixing performance, see chapter Optimizing Performance.
Tools required Description
Screwdriver Pozidriv #1
Parts required # p/n Description
1 G4204-68000 Jet Weaver 380 µL for 1290 Infinity Quaternary Pump
containing
2 5067-5416 Capillary ST 0.17 x 120 mm, SLV/SV
Jet Weaver to Multi Purpose Valve
Preparations Switch off the pump at the main power switch

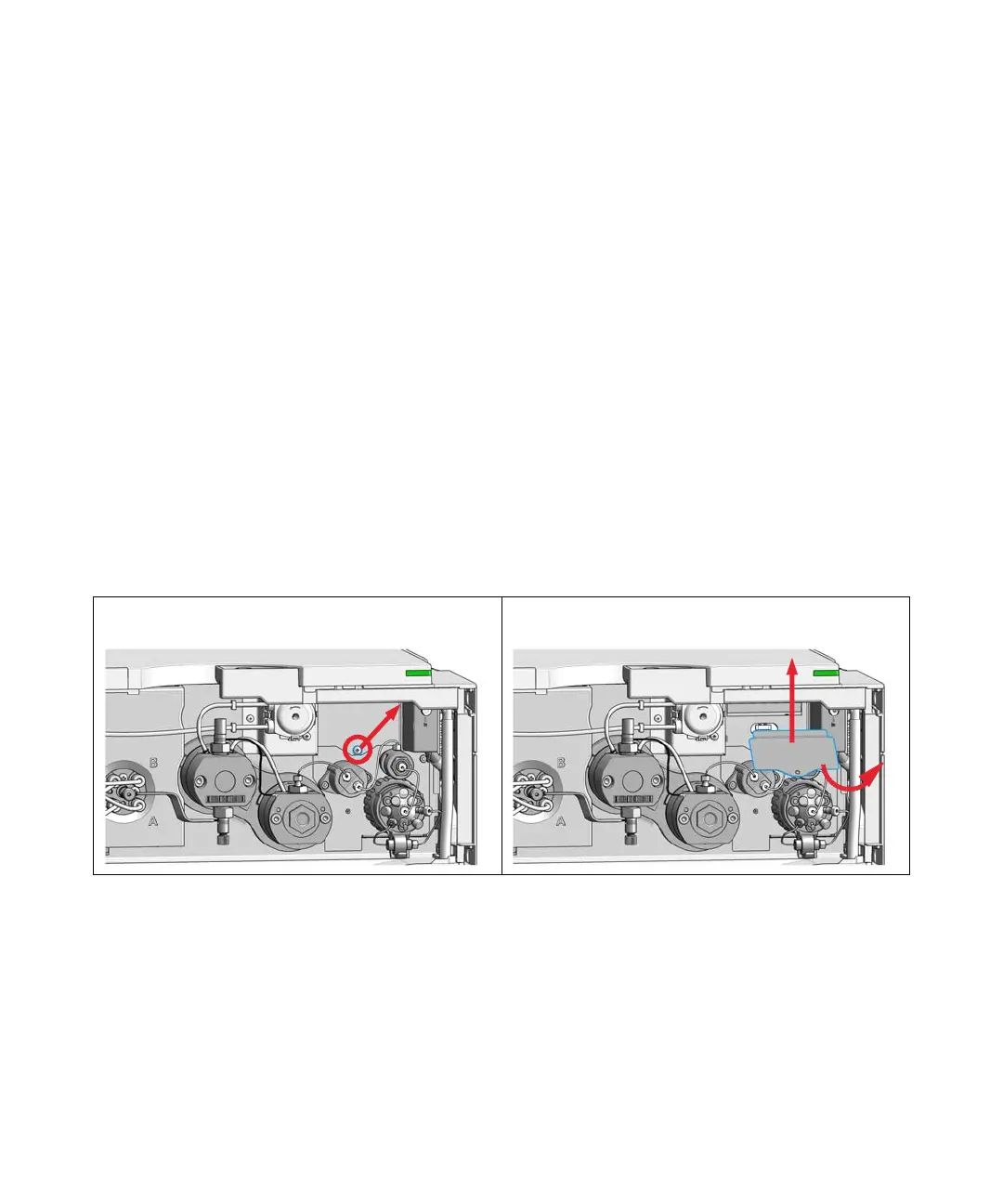

1 Open the screw of the Jet Weaver metal lid. 2 Remove the metal lid by lifting it up (1) and pulling it out
of the front panel (2).
