98 Agilent 1290 Infinity II Flexible Pump User Manual
7 Maintenance
Install the Jet Weaver
3

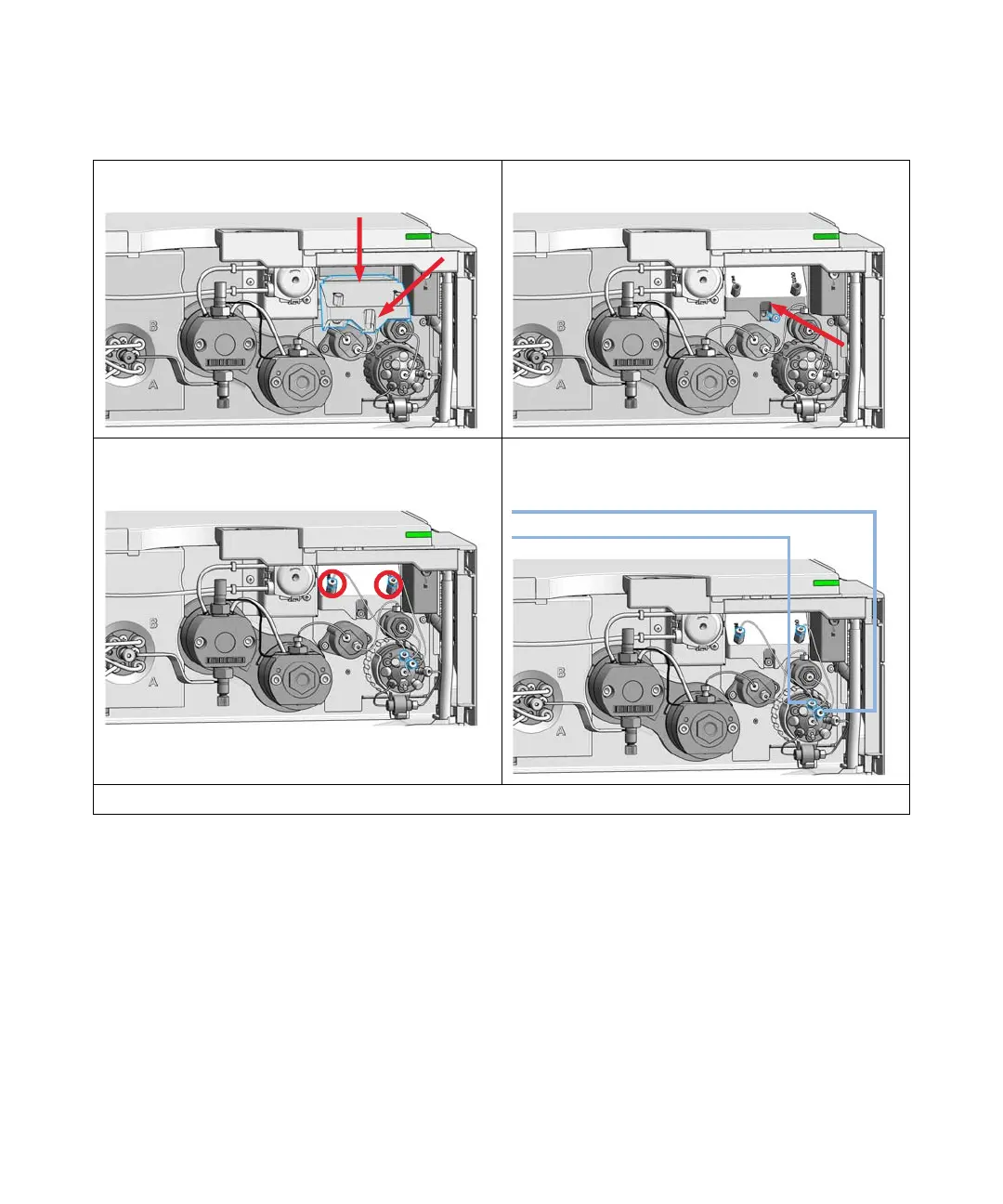

Insert the Jet Weaver to the opening in the front panel (1)
and push it down (2).
4 Fix the Jet Weaver with a screw.
5 Mount both capillary connections to the Jet Weaver
observing the correct orientation.
6 Connect the inlet capillary of the Jet Weaver to port 2 of
the Multi Purpose Valve. Connect the outlet capillary to
port 1.
7 Configure the Jet Weaver as mixer in the user interface.
&
'
Edgi&
Edgi'
