Agilent 1290 Infinity II Flexible Pump User Manual 15
Introduction
1
Positions of the Multi Purpose Valve
Purge Mode
In purge mode, the flow is diverted to the waste container.

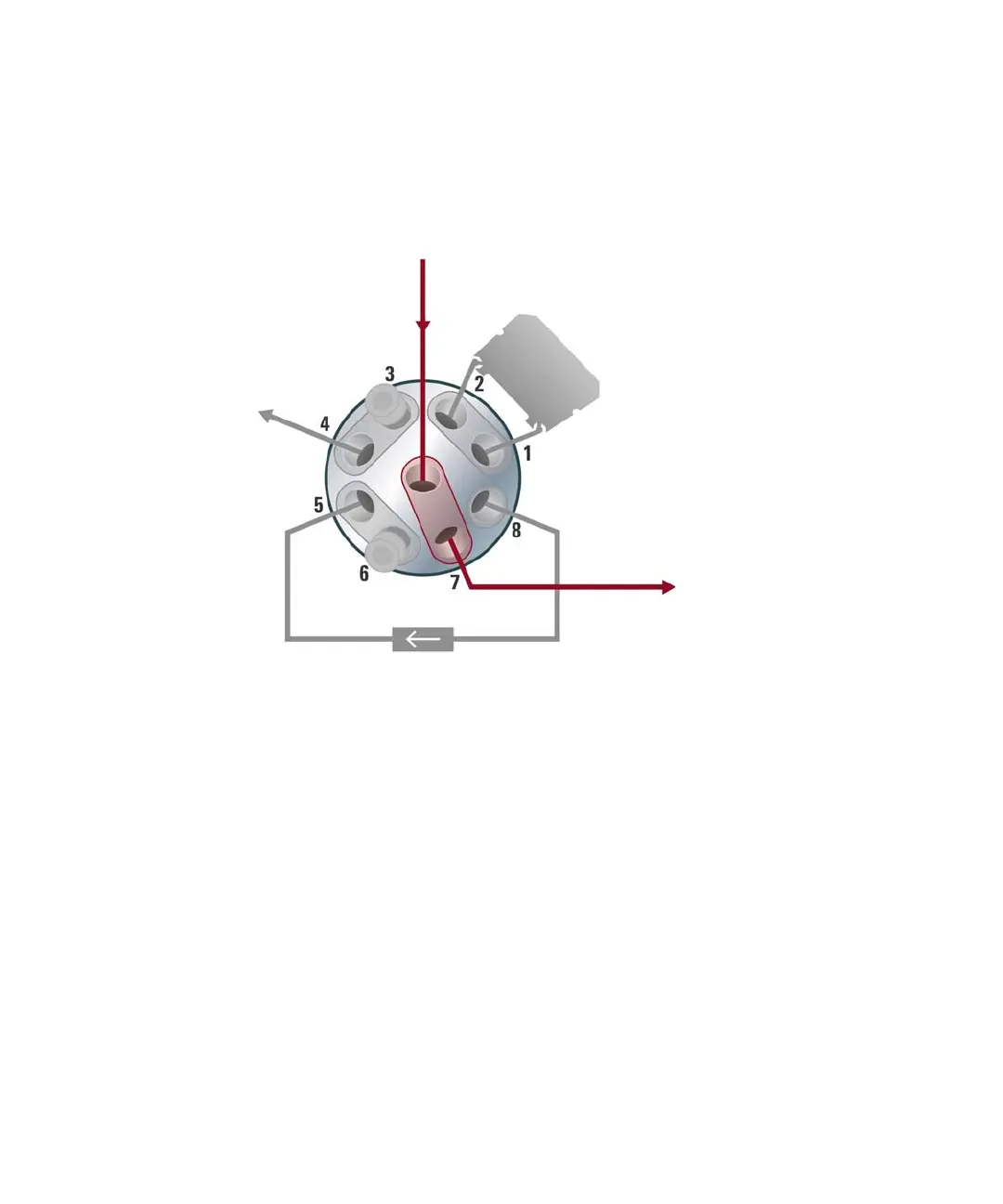

Figure 4 Valve position in purge mode
From pump
To waste
