18 Agilent 1290 Infinity II Flexible Pump User Manual
1 Introduction
Positions of the Multi Purpose Valve
Service Mode
In service mode, the flow is diverted to port 3, where for example a
restriction capillary can be installed for diagnostic tests.

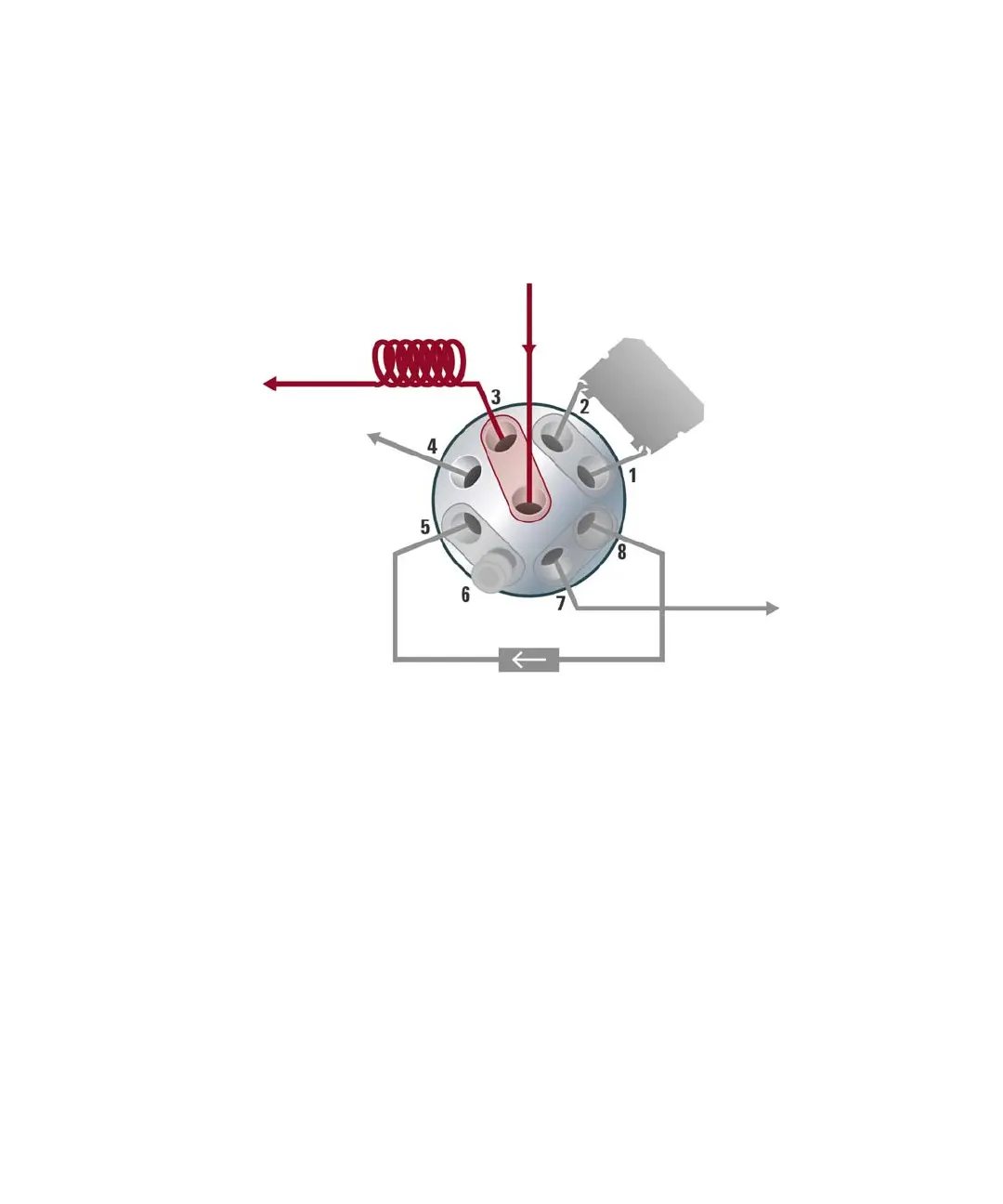

Figure 7 Valve position in service mode
From pump
Restriction
capillary
