Revision H, 11/10 VK 7025 Dissolution Apparatus Page 21
P/N 70-9033 Operator’s Manual Setup
Varian, Inc.
Step 6. Once clear of the packaging materials, use the hand holds grooved into
the base plate to lift the dissolution apparatus onto a sturdy benchtop
(see Figure 2, “VK 7025 Lifting Guide,” below).

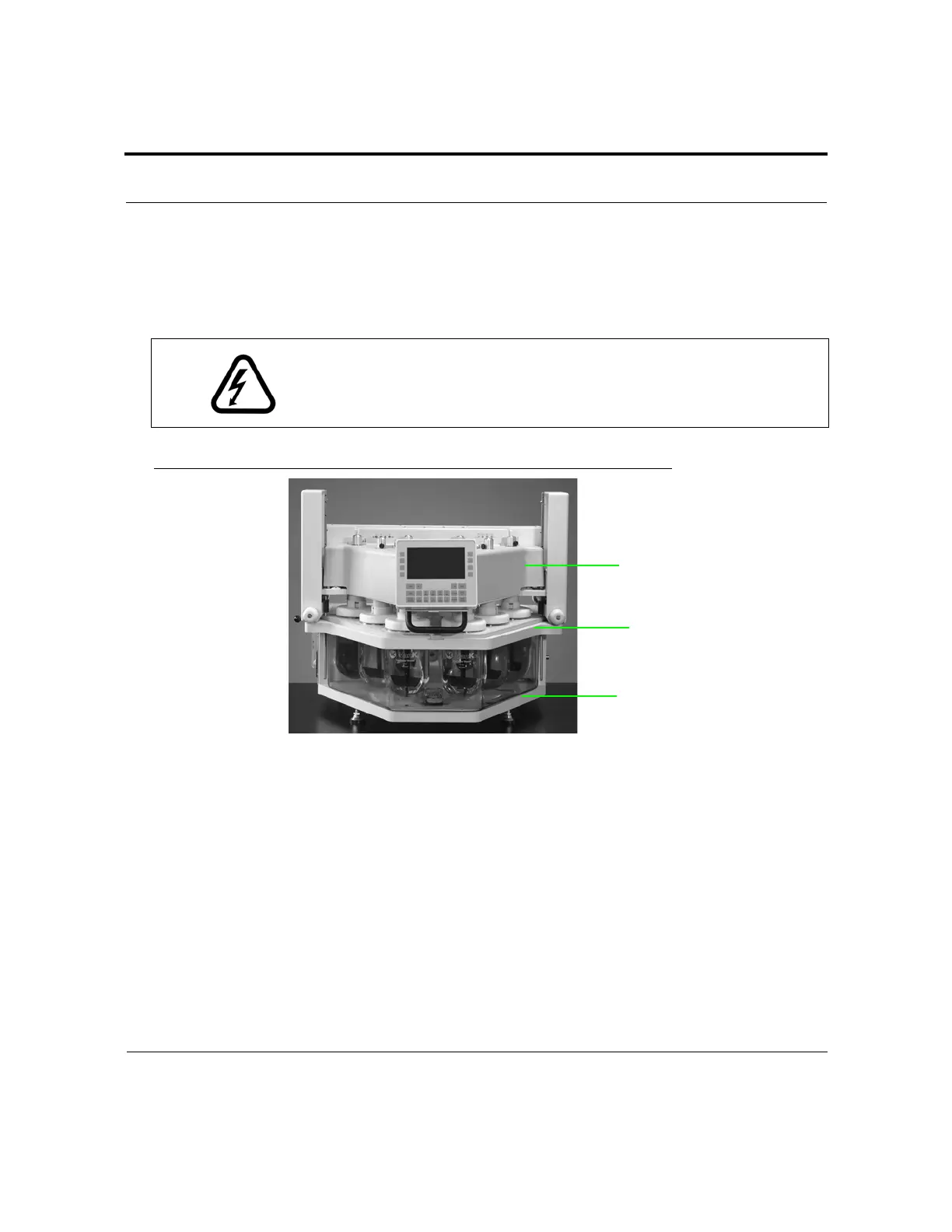

FIGURE 2. VK 7025 Lifting Guide
Warning
The electrical connection at the back of the tester is the primary
disconnect for the instrument. The tester should be positioned
to allow accessibility to the power cords for easy disconnection.
vessel plate (do not lift)
base plate (lift)
drive unit (do not lift)
