Aiwa NSX-430 - ANTENNA CONNECTIONS; CONNECTING THE SUPPLIED ANTENNAS; Positioning FM unipolar antenna; Positioning MW;LW loop antenna

12
TEM
75Q -( —
(COAXIAL)
Ou
0008uu
ANTENNA
gpza
L
TEM
75Q
(COAXIAL)
2
<——_
@) Pe

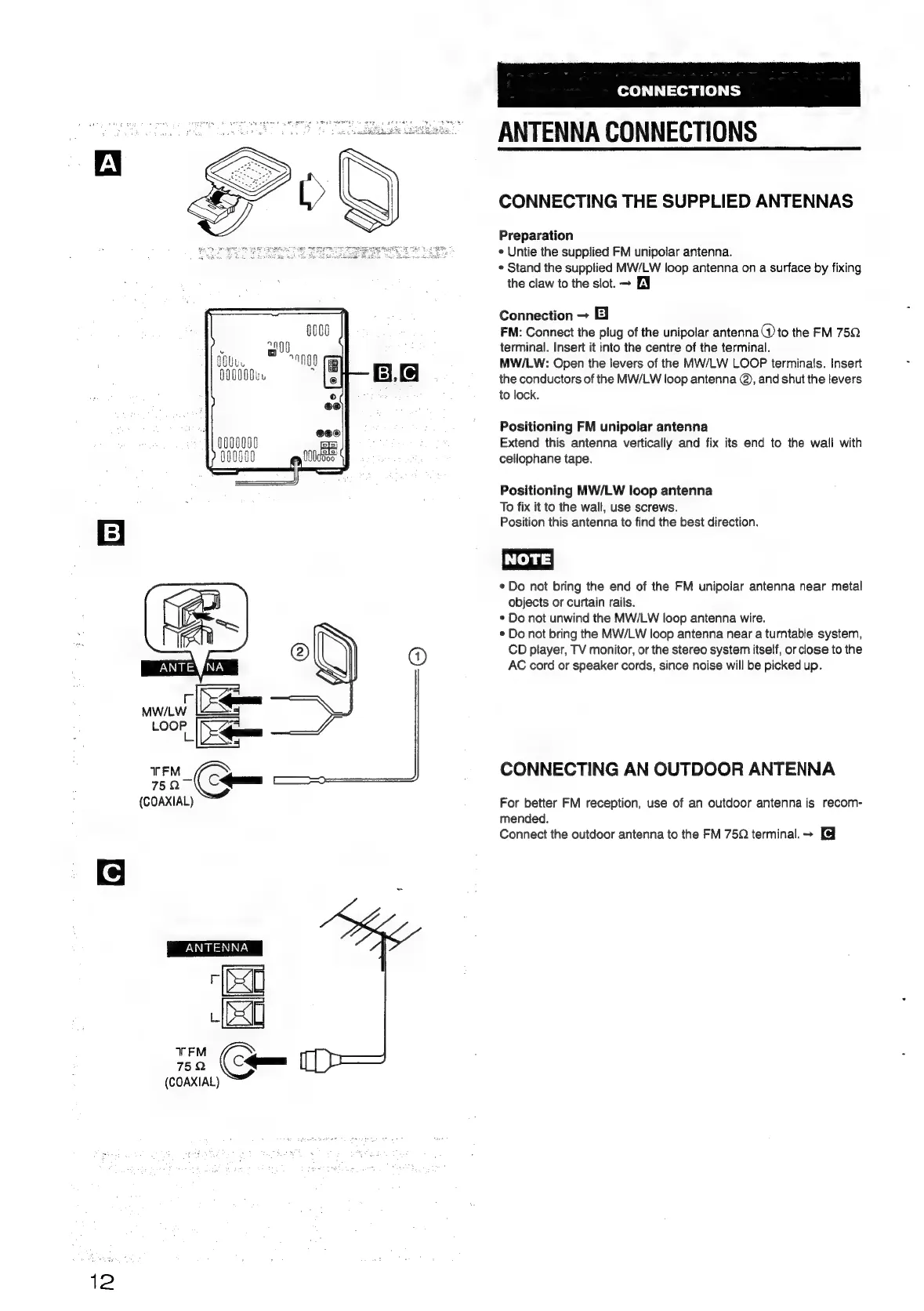

ANTENNA CONNECTIONS
CONNECTING THE SUPPLIED ANTENNAS
Preparation
e Untie the supplied FM unipolar antenna.
¢ Stand the supplied MW/LW loop antenna on a surface by fixing
the claw to the slot. > EY
Connection ~ E]
FM: Connect the plug of the unipolar antenna @ to the FM 752
terminal. Insert it into the centre of the terminal.
MW/LW: Open the levers of the MW/LW LOOP terminalis. Insert
the conductors of the MW/LW loop antenna @, and shut the levers
to lock.
Positioning FM unipolar antenna
Extend this antenna vertically and fix its end to the wali with
cellophane tape.
Positioning MW/LW loop antenna
To fix it to the wall, use screws.
Position this antenna to find the best direction.
INOTE
¢ Do not bring the end of the FM unipolar antenna near metal
objects or curtain rails.
¢ Do not unwind the MW/LW loop antenna wire.
* Do not bring the MW/LW loop antenna near a turntable system,
CD player, TV monitor, or the stereo system itself, or close to the
AC cord or speaker cords, since noise will be picked up.
CONNECTING AN OUTDOOR ANTENNA
For better FM reception, use of an outdoor antenna is recom-
mended.
Connect the outdoor antenna to the FM 75Q terminal. >
