Boot Option Files
7210 SAS M, T, X, R6 Basic System Configuration Guide Page 119
Note: When the operator executes the reset command in the boot loader prompt or admin reboot
auto-init in the TiMos CLI, 7210 SAS resets the current BOF and reboots.
Note: The operator can manage a 7210 SAS node through an external physical network.
Managing a node through an external physical network secures the management network by
restricting access to service customers and service data. The 7210 SAS node can be managed
through the Out-of-band (OOB) Ethernet management port.
Figure 3 displays the bootstrap load process.

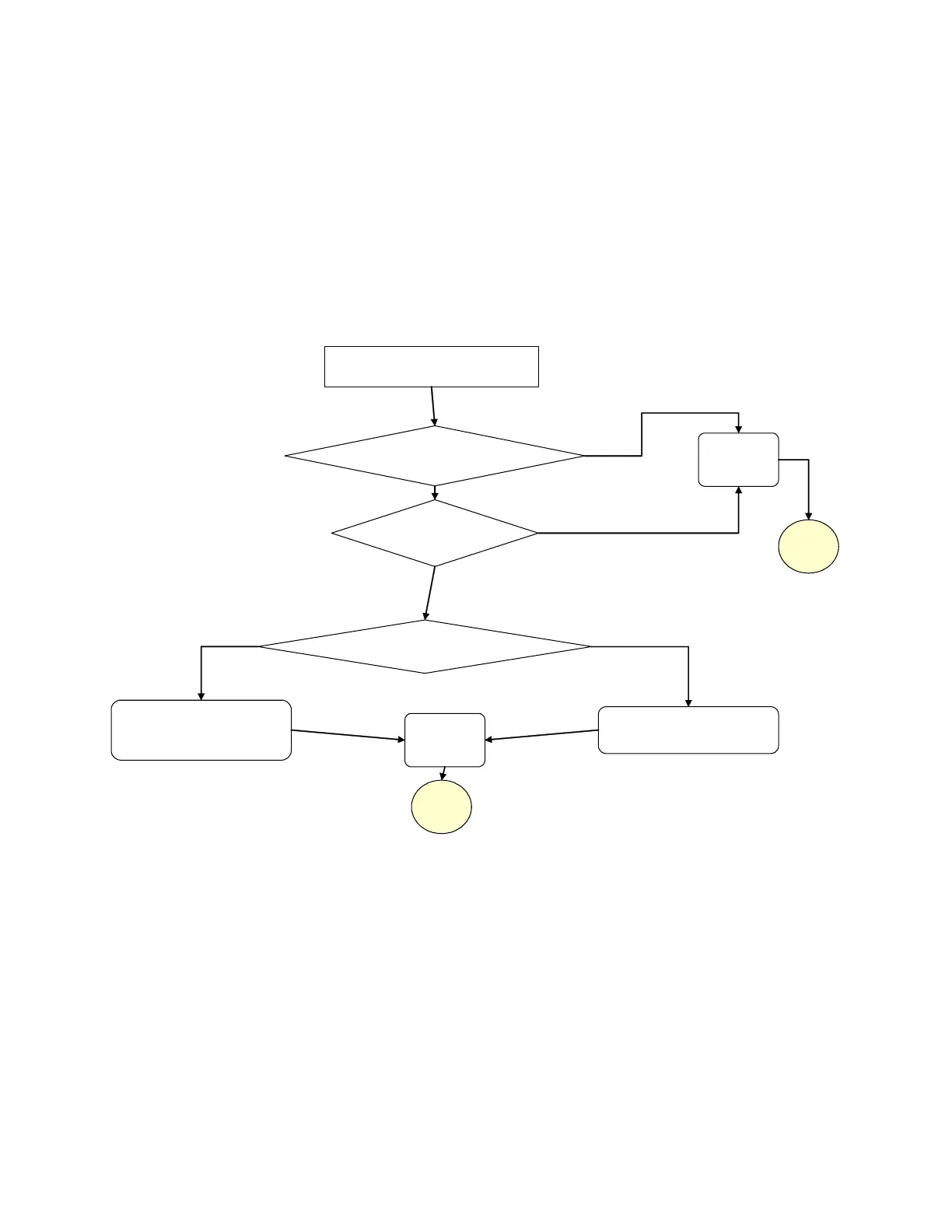

Figure 3: Bootstrap Load Process - System Initialisation - Part I
The sections below provide more details of the various boot options and how the system processes
these options and loads the bootloader (boot.tim), the Timos image (both.tim) and the
configuration file to make the system operational and ready for use.
The following is an example of console display output when the boot.tim file is located on cf1 and
the system boots successfully.
Alcatel-Lucent 7210 Boot ROM. Copyright 2000-2009 Alcatel-Lucent.
Power on/Reboot – Start Bootrom
code
Was Golden image requested
due to bootstrap image
upgrade failure?
Yes
boot.tim present
and valid
No
No
boot.tim a different version from last
good bootstrap image
Yes
Indicate bootstrap-updated flag
to timos and the bootstrap
Indicate bootstrap-no-update
flag to timos and the bootstrap
No
Yes
R
Load
boot.tim
Load golden
bootstrap
R
