Alfa Laval Micro - 3 Product Overview; Product Overview Aquamicro

Alfa Laval Micro
Installation, service and operating instruction
9
3 Product overview
Note: The product overview pictures are shown without the insulation.

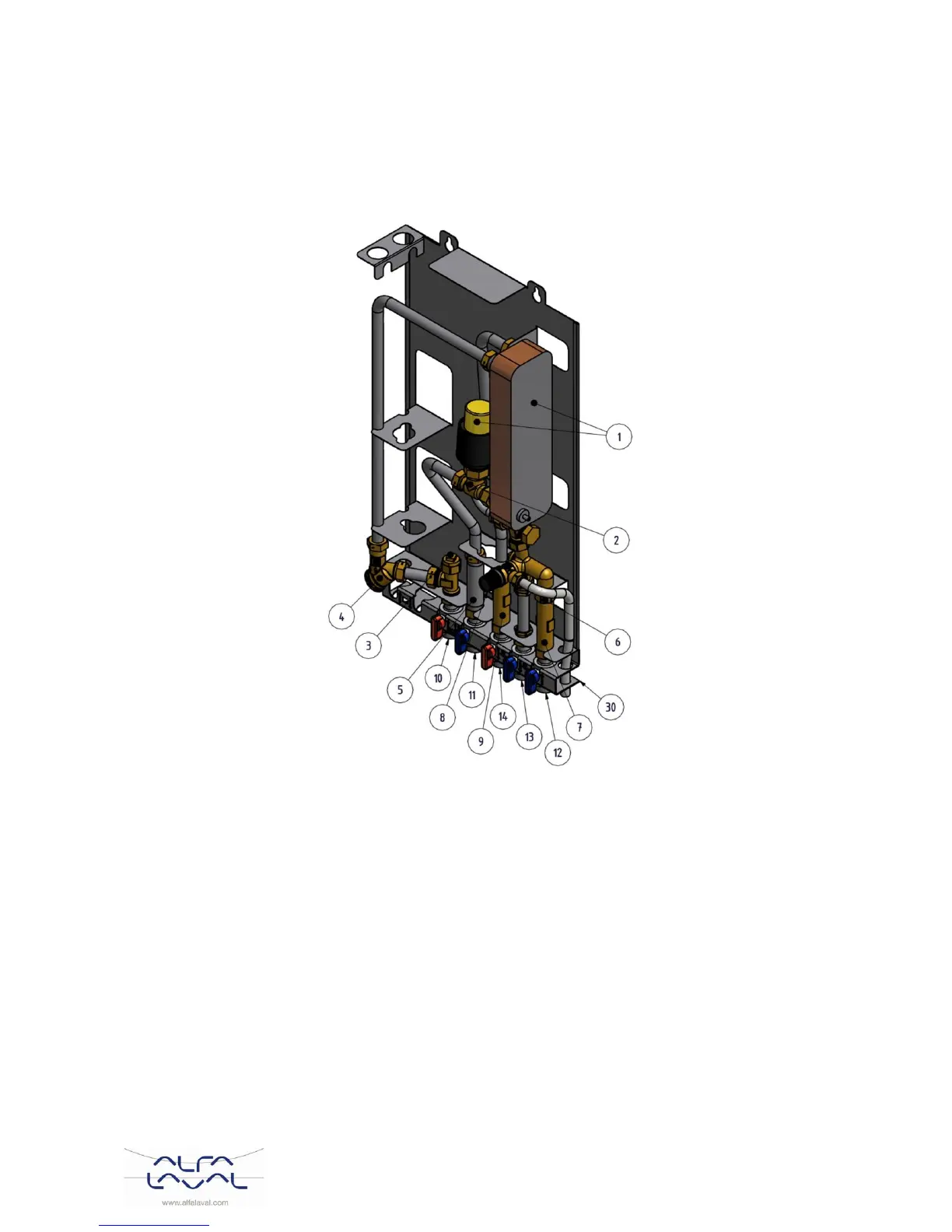

Product overview AquaMicro 3.1
Picture 1
1
Heat exchanger and temperature
controller for hot water
9
Adapter for Hot water flow meter
2
Control valve for hot water
10
Heating network media, supply
3
Temperature sensor connection,
heating media supply
11
Heating network media, return
4
Filter for heating media
12
Cold water (cw)
5
Adapter for energy meter
13
Cold water outlet (cw)
6
Check valve for cold water
14
Hot water (hw)
7
Adapter for Cold water flow meter
30
First fix jig including shut-off valves (option)
8
Safety valve for domestic hot water
