Alfa Laval Micro - Product Overview Micro RTC

Alfa Laval Micro
Installation, service and operating instruction
11
Product overview Micro RTC
3.3

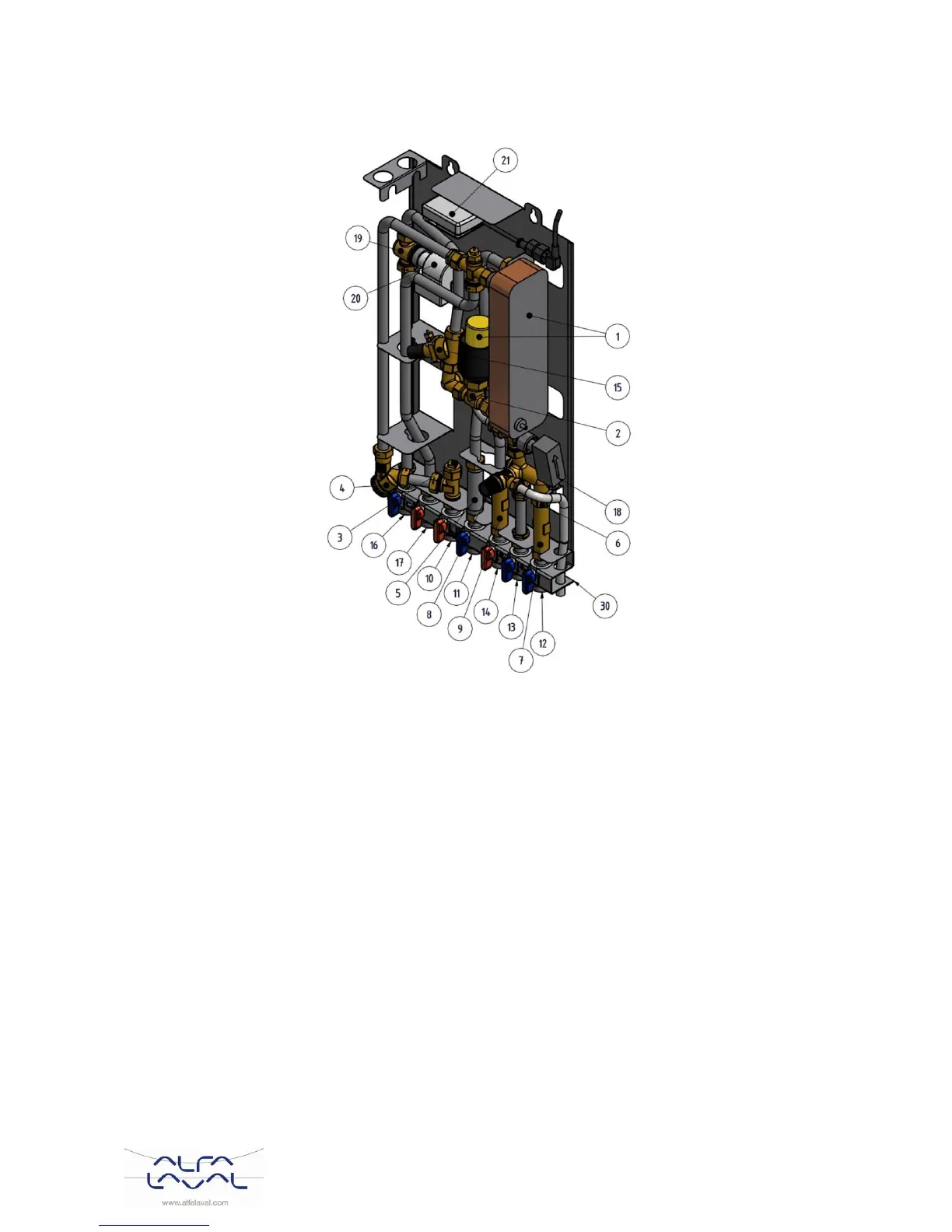

Picture 3
1
Heat exchanger and temperature
controller for hot water
13
Cold water outlet (cw)
2
Control valve for hot water
14
Hot water (hw)
3
Temperature sensor connection,
heating media supply
15
Differential pressure controller
4
Filter for heating media
16
Heating circuit, return
5
Adapter for energy meter
17
Heating circuit, supply
6
Check valve for cold water
18
Flow switch for domestic hot water (option)
7
Adapter for Cold water flow meter
19
Control valve, heating circuit
8
Safety valve for domestic hot water
20
Actuator, heating circuit
9
Adapter for Hot water flow meter
21
Connection box for electric power and
sensors, heating circuit
10
Heating network media, supply
22
Room thermostat/control panel
11
Heating network media, return
30
First fix jig including shut-off valves (option)
12
Cold water (cw)
