Alfa Laval Micro - Product Overview Micro STC2

Alfa Laval Micro
Installation, service and operating instruction
13

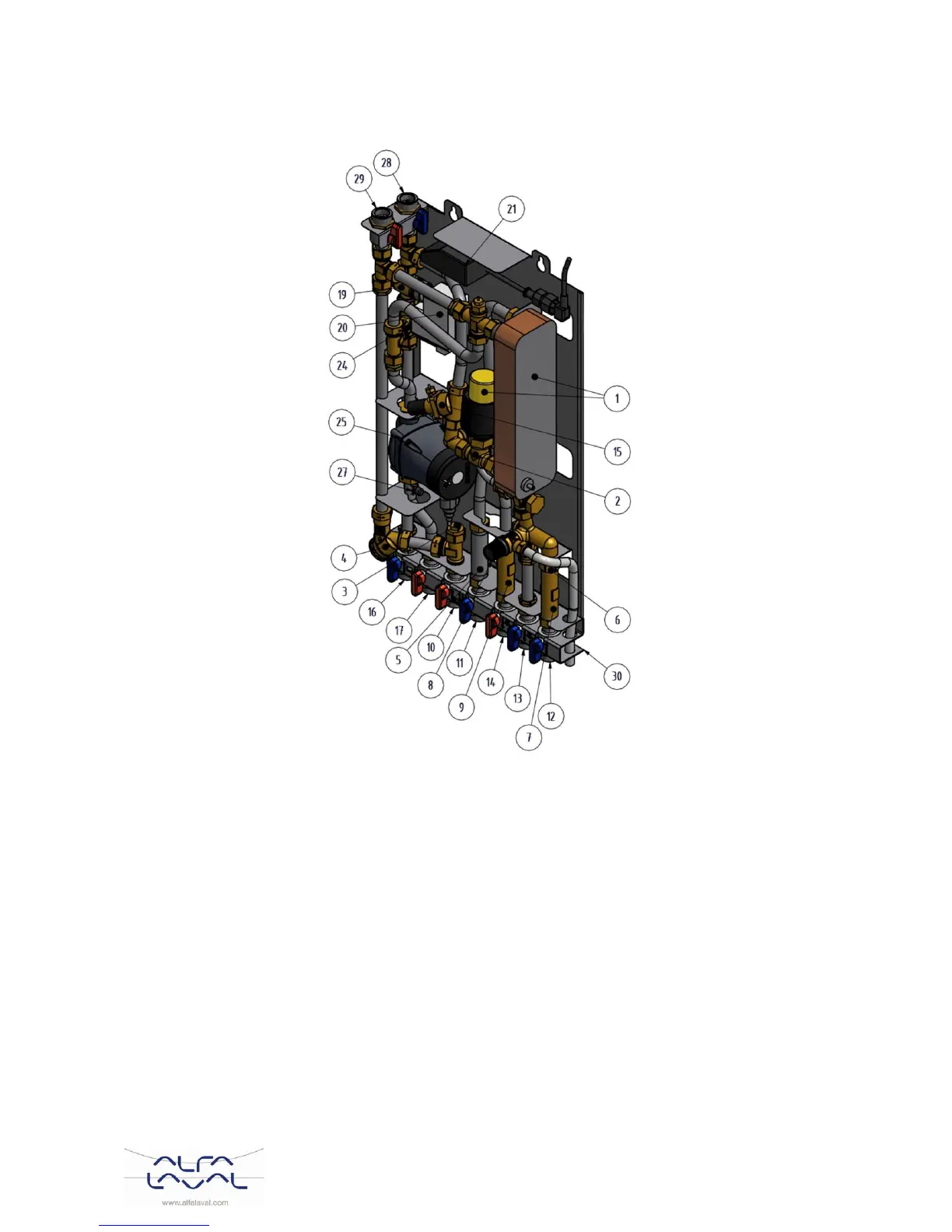

Product overview Micro STC2
3.5
Picture 5
1
Heat exchanger and temperature
controller for hot water
16
Heating circuit, return
2
Control valve for hot water
17
Heating circuit, supply
3
Temperature sensor connection,
heating media supply
19
Control valve, heating circuit
4
Filter for heating media
20
Actuator, heating circuit
5
Adapter for energy meter
21
Connection box for electric power and
sensors, heating circuit
6
Check valve for cold water
22
Room thermostat/control panel
7
Adapter for Cold water flow meter
23
Outdoor temperature sensor (option)
8
Safety valve for domestic hot water
24
Check valve for heating circuit
9
Adapter for Hot water flow meter
25
Circulation pump, heating circuit
10
Heating network media, supply
26
Underfloor heating thermostat (option)
11
Heating network media, return
27
Supply temperature sensor, heating circuit
12
Cold water (cw)
28
Heating circuit primary temp, return
13
Cold water outlet (cw)
29
Heating circuit primary temp, supply
14
Hot water (hw)
30
First fix jig including shut-off valves (option)
15
Differential pressure controller
