Alfa Laval Micro - Product Overview Micro DPC

Alfa Laval Micro
Installation, service and operating instruction
10
Product overview Micro DPC
3.2

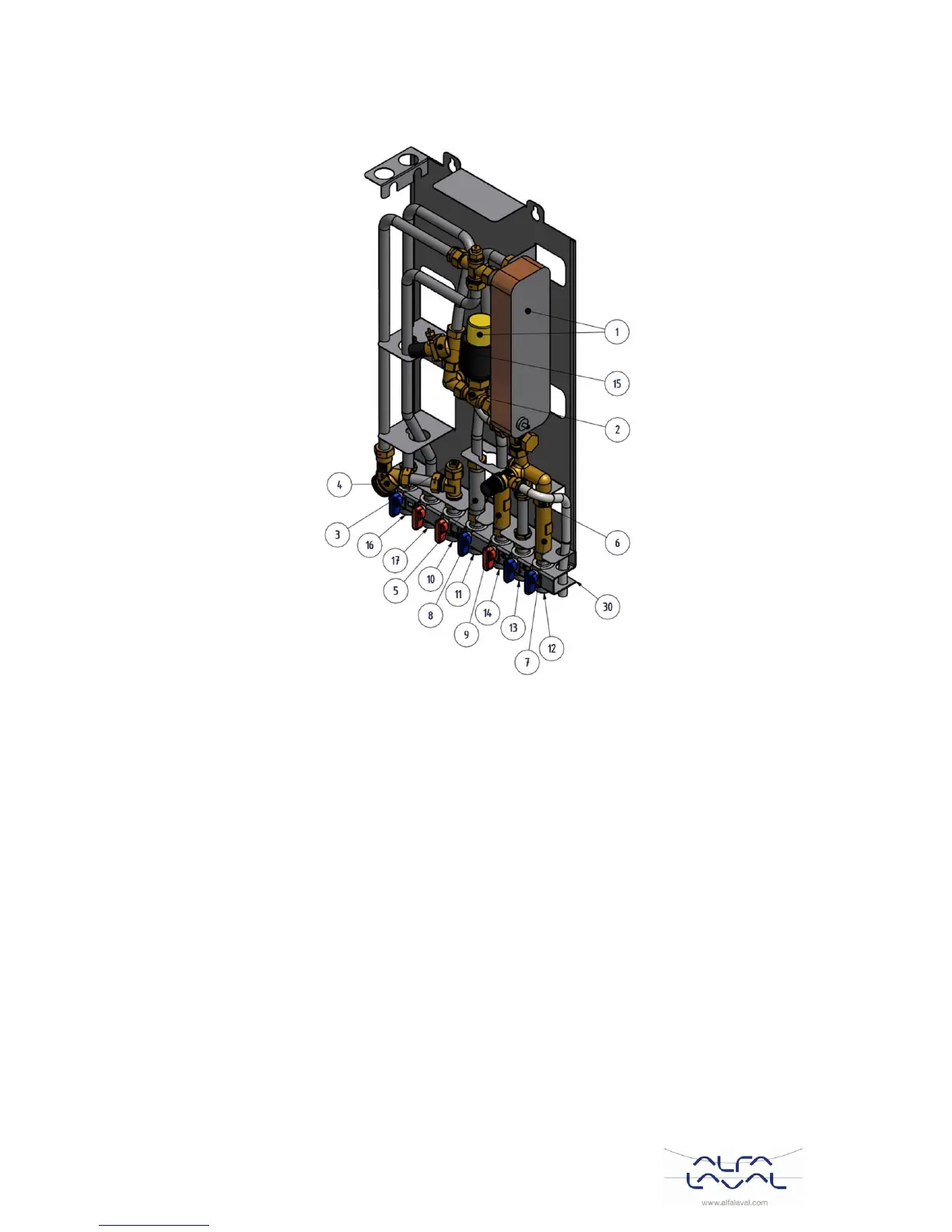

Picture 2
1
Heat exchanger and temperature
controller for hot water
10
Heating network media, supply
2
Control valve for hot water
11
Heating network media, return
3
Temperature sensor connection,
heating media supply
12
Cold water (cw)
4
Filter for heating media
13
Cold water outlet (cw)
5
Adapter for energy meter
14
Hot water (hw)
6
Check valve for cold water
15
Differential pressure controller
7
Adapter for Cold water flow meter
16
Heating circuit, return
8
Safety valve for domestic hot water
17
Heating circuit, supply
9
Adapter for Hot water flow meter
30
First fix jig including shut-off valves (option)
