15 Differential pressure control valve, DPC
Adjusting the DPC must be carried out by an authorized service technician.
Setting the DPC valve 15.1
Set the valve to the differential pressure 25kPa.
Start with the valve at minimum position and then open with 3 numbers of turns.
Use a 4mm hexagonal key.
NOTE: Always start from the minimum position of the valve, before making new settings.

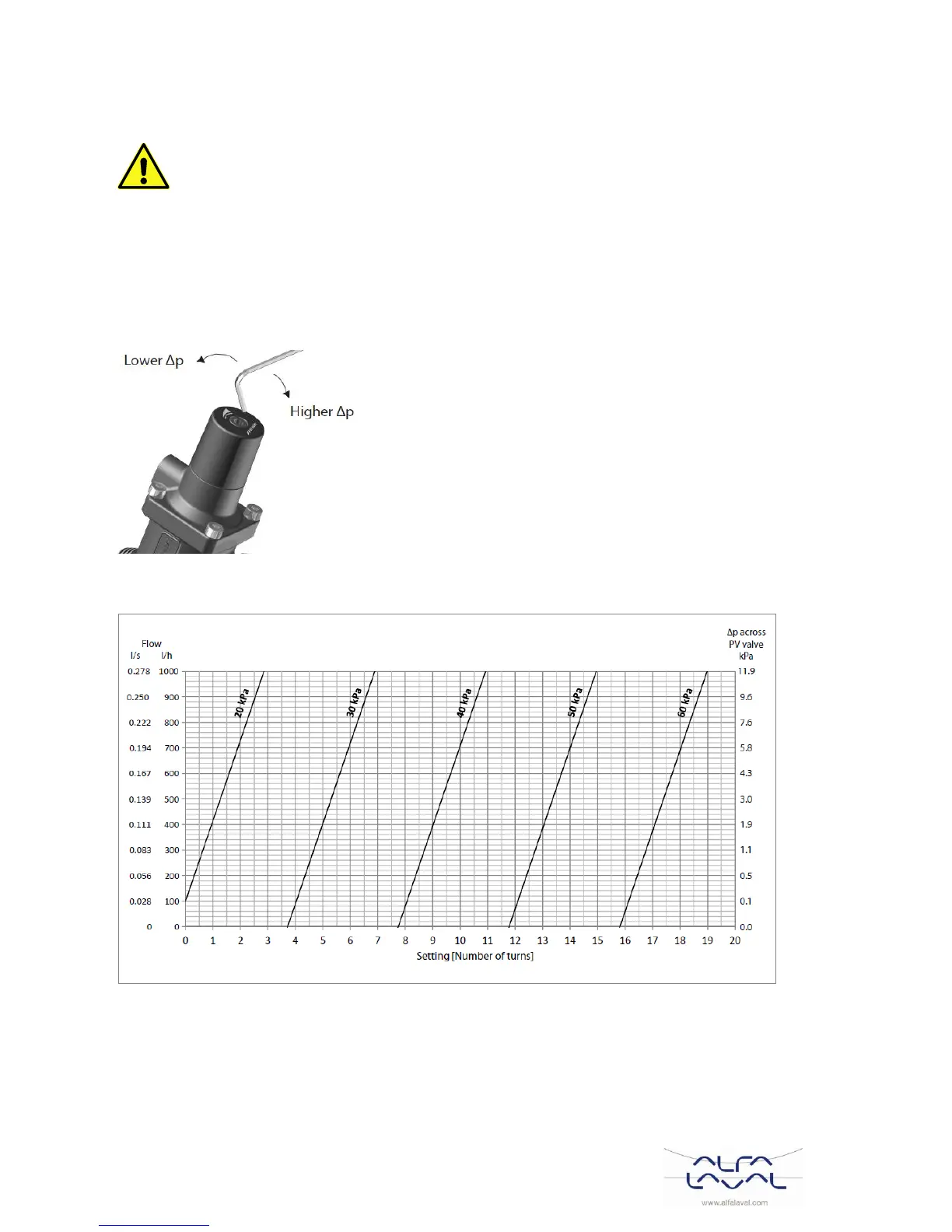

Picture 33
Flow rate graph of the DPC 15.2
Picture 34
