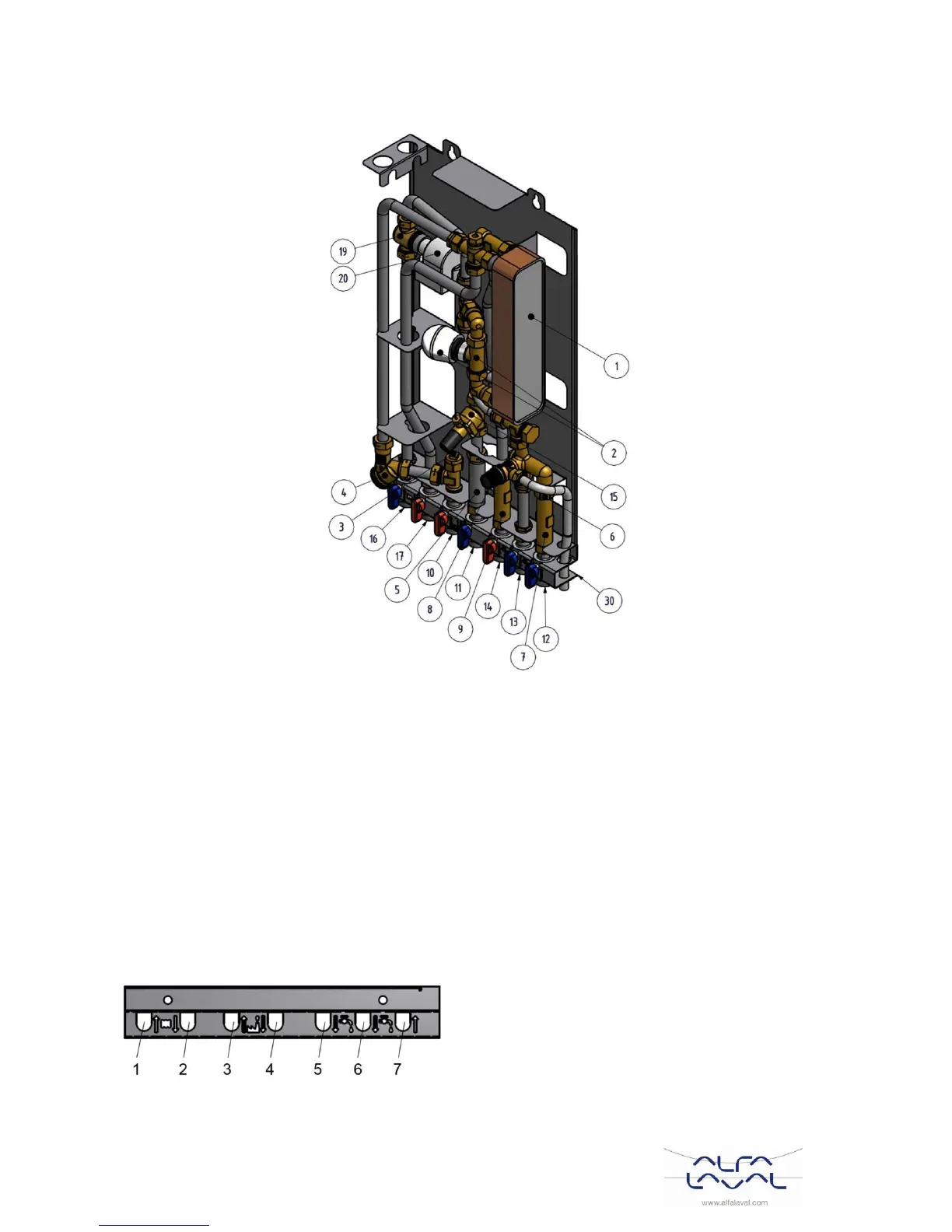

Product overview Micro HTC
3.6
Picture 6
1
Heat exchanger and temperature
controller for hot water
11
Heating network media, return
2
Control valve for hot water
12
Cold water (cw)
3
Temperature sensor connection,
heating media supply
13
Cold water outlet (cw)
4
Filter for heating media
14
Hot water (hw)
5
Adapter for energy meter
15
Differential pressure controller
6
Check valve for cold water
16
Heating circuit, return
7
Adapter for Cold water flow meter
17
Heating circuit, supply
8
Safety valve for domestic hot water
19
Control valve, heating circuit
9
Adapter for Hot water flow meter
20
Actuator, heating circuit
10
Heating network media, supply
30
First fix jig including shut-off valves (option)
Symbols on the first fix-jig 3.7
The first fix-jig has symbols that show which supply and return pipe that should connect to the different
connection points.
Picture 7
1
Heating circuit, return
2
Heating circuit, supply
3
Heating network media, supply
4
Heating network media, return
5
Hot water (hw)
6
Cold water outlet (cw)
7
Cold water (cw)
