Publication 1734-UM011A-EN-P - February 2004
1734-AENT Quick Start D-7
However, if you have downloaded the offline configuration into the
module and then realize that you must modify any of the module’s
configuration parameters, then the preferred way to make these
changes online is to go to the Module Connection tab and inhibit the
module, apply the changes, and then uninhibit the module. Doing
this will break the connection, causing the configuration information
to be downloaded right after the connection is made.
6. Right click on the 1734-AENT adapter and select Properties.

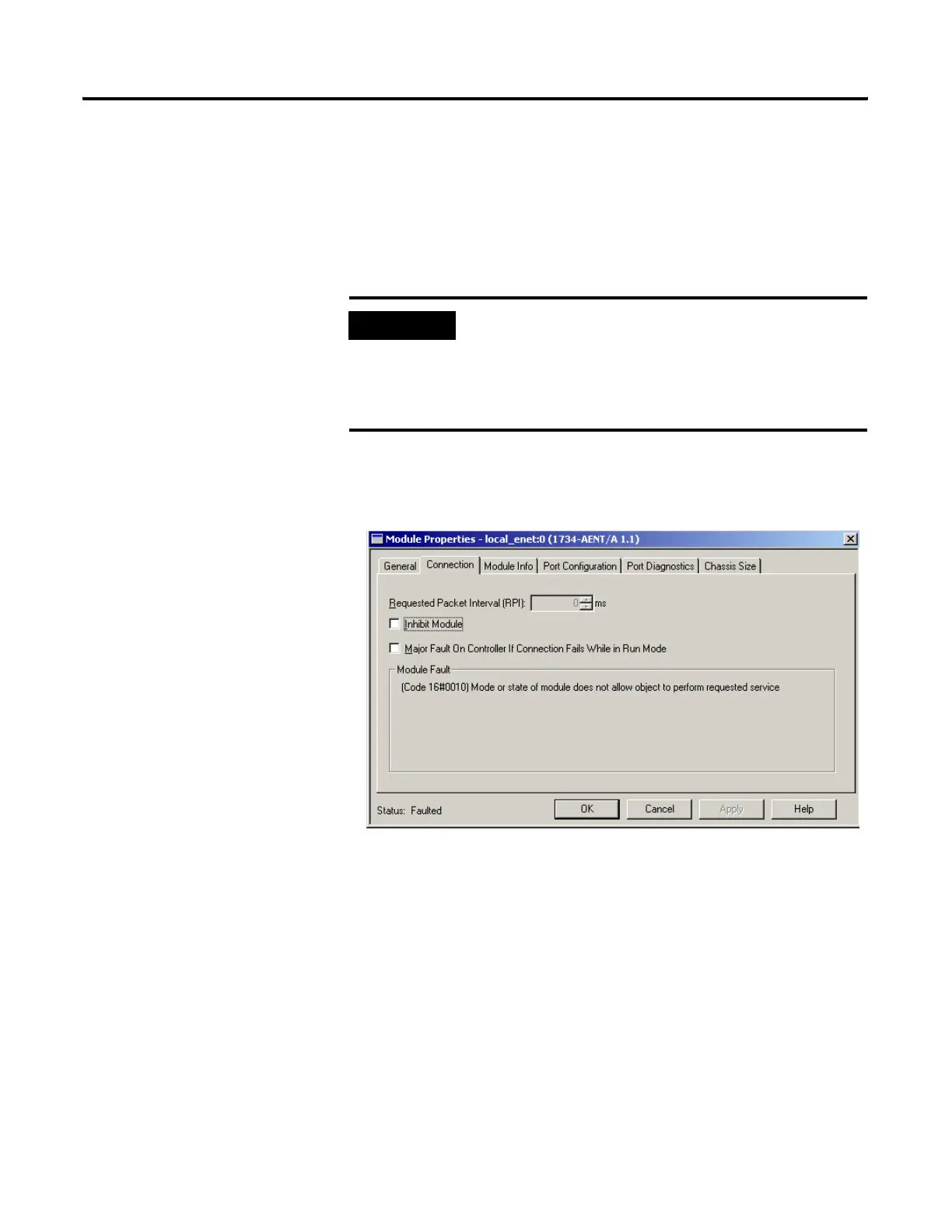

7. Click on Connection Tab. You will see the following message:
The module is faulted because even though you have set up the
1734-AENT’s POINT I/O chassis size to the actual number of the
modules plus the adapter, the adapter still remembers the size of 1 (the
factory default value) until you go and reset this size manually. This
option is available only online.
8. Click on the Chassis Size tab.
9. Click on the Set Chassis Size in Module button and set the chassis size
in the adapter. (Remember to inhibit and unhibit the module for this to
take effect.)
IMPORTANT
Switching the processor from Program to Run mode does
not change the module connection status and does not
re-send module configuration data!
It is highly recommended that the inhibit/uninhibit process
be used and that power cycling be avoided.
