Allen-Bradley Rockwell Automation 1734-AENT User Manua

Publication 1734-UM011A-EN-P - February 2004
Configure the 1734-AENT for Direct Connection in RSLogix 5000 4-9

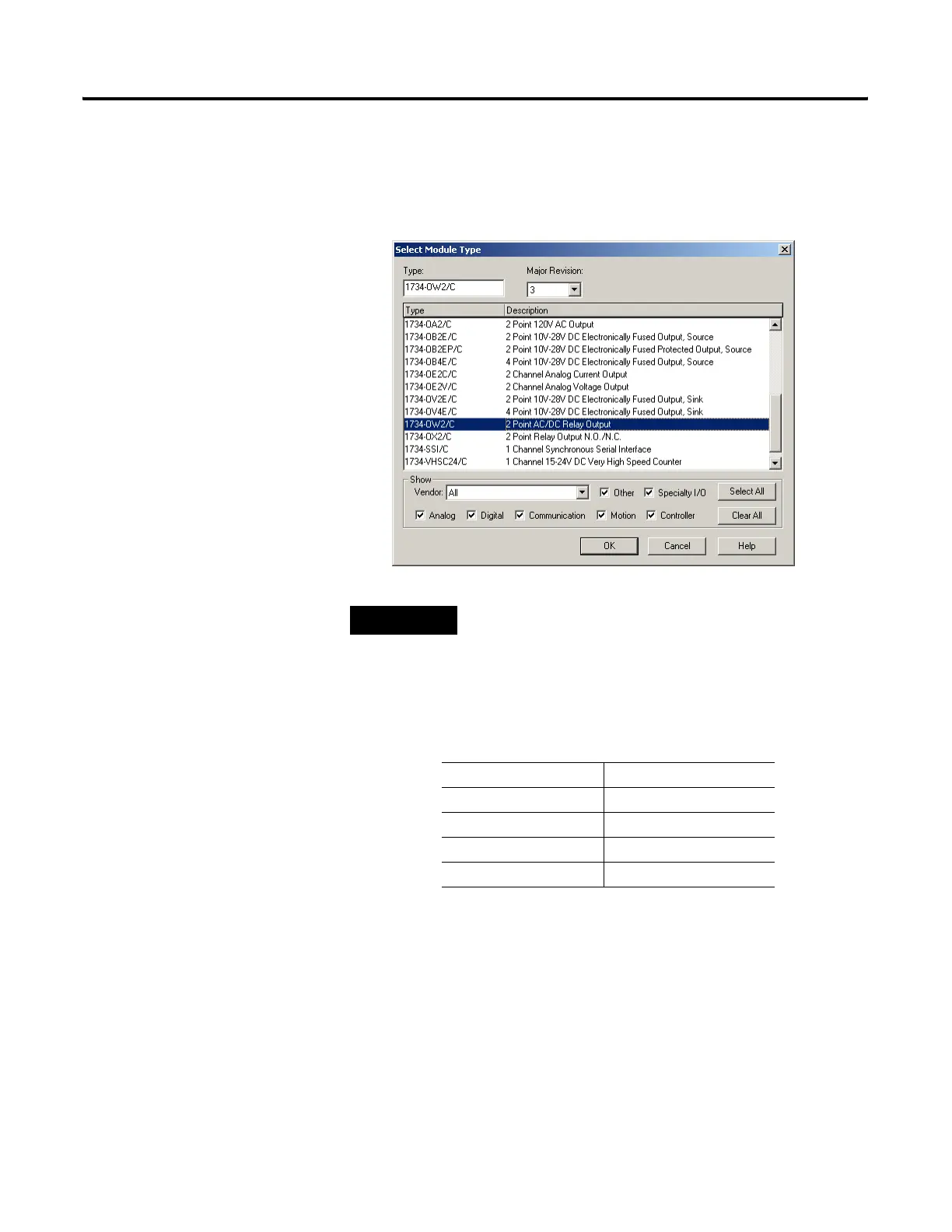

The Select Module Type window will open.
2. Select the 1734-OW2/C relay output module from the list and click on
OK.
The Module Properties window will open.
3. We used the following values:
TIP
At the bottom of the Select Module Type screen, you can
choose Clear All and then select a type of module (analog,
digital, specialty) to narrow your search.
Name POINT_Relay_Output
Slot 1
Comm Format Output Data
Electronic Keying Compatible Module
Revision 3.1

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
