Appendix A
1734-AENT Adapter Web Pages
Web Page Diagnostics

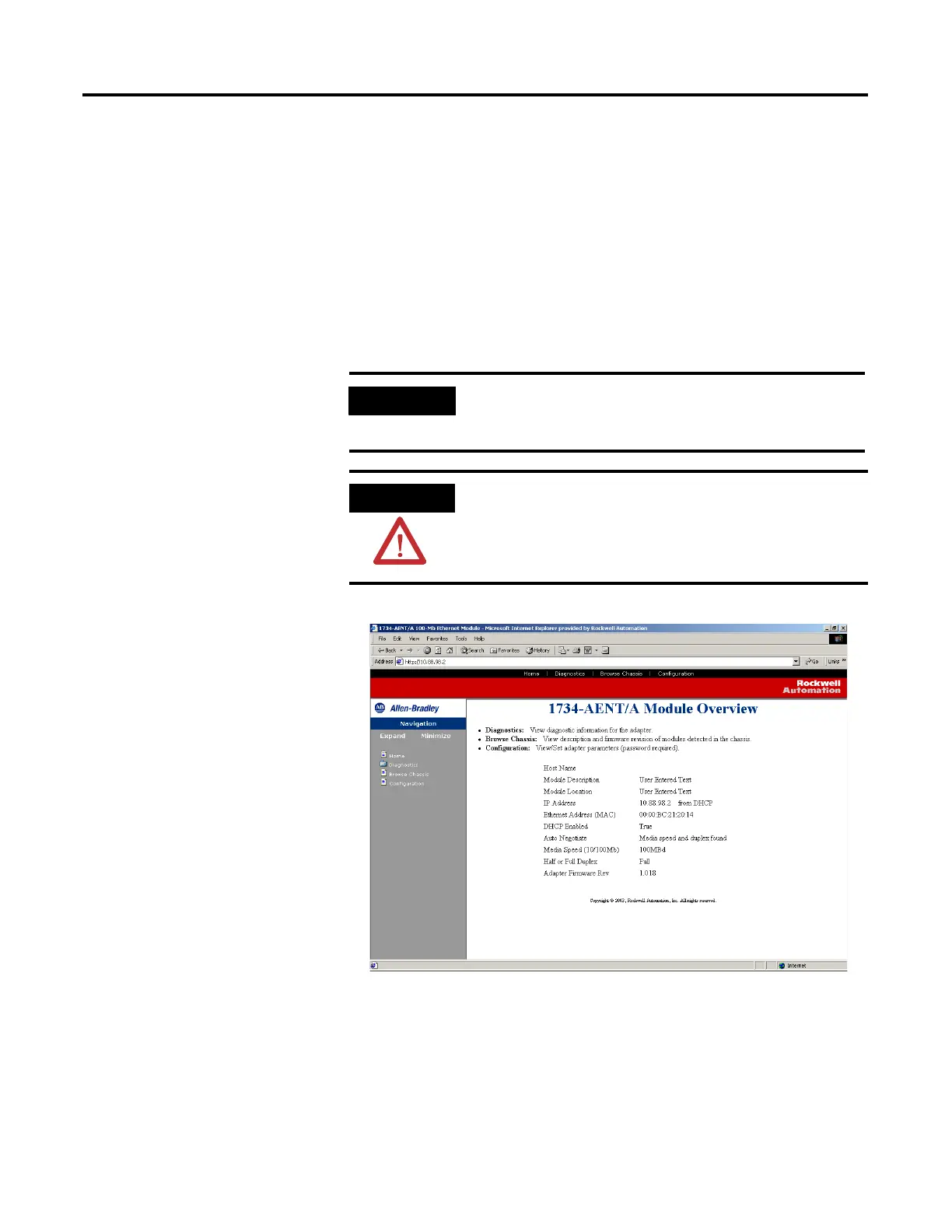

The 1734-AENT adapter’s Web pages offer extensive internal and network
diagnostics. To view the Web pages, enter the adapter’s IP address into
Netscape or Microsoft Internet Explorer. You will see the Web page shown
below:
The adapter’s Web pages provide the following:
• Diagnostic information
• Browse Chassis capability
• Configuration information
Some examples of these pages are shown on the following figures.
IMPORTANT
Make sure that your PC Internet LAN setting and your TCP/IP
settings are configured to access the subnet on which your
adapter communicates.
ATTENTION
You must use Series C POINT I/O modules with the
1734-AENT adapter. Series A or B POINT I/O modules will
not work with this adapter.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
