112 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017

Chapter 4 Install Stratix 5410 Switches

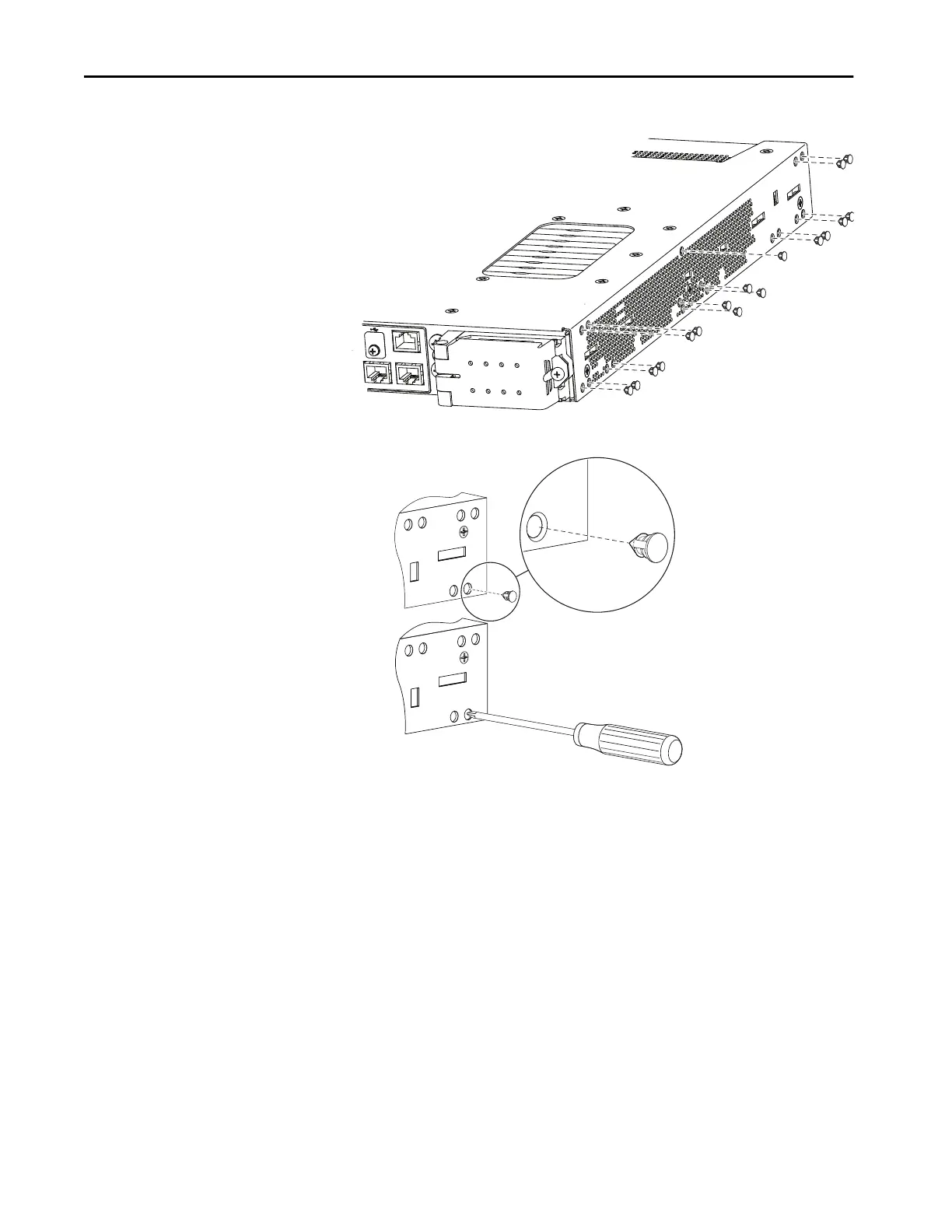

2. Insert the rubber plugs in the unused holes on both sides of the switch.

3. Use a screwdriver or pen to push in the rubber plugs completely.

nsole

larm

TOD

32572-M

32571-M
