Allen-Bradley Stratix 5410 User Manual

534 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Appendix D Cables and Connectors
PoE Port Cable Specifications
For PoE ports, use a Category 5 (Cat 5) cable with a distance of up to 100 m
(328 ft).
Stratix 8000/8300
Cables and Connectors
This section describes how to connect to ports on Stratix 8000/8300 switches.
10/100 and 10/100/1000 Ports
The 10/100 and 10/100/1000 Ethernet ports use standard RJ45 connectors
and Ethernet pinouts with internal crossovers.

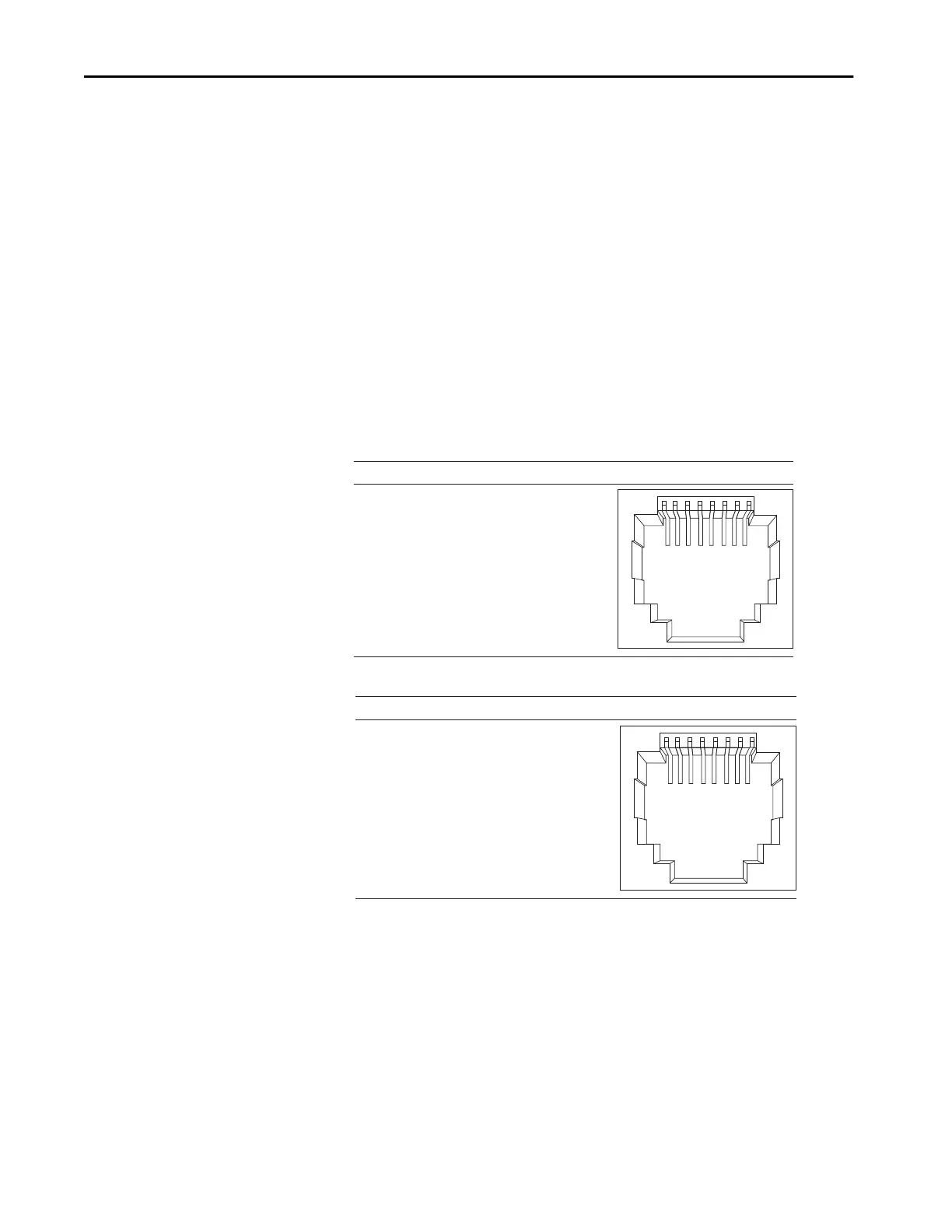

Figure 87 - 10/100 Connector Pinouts
Figure 88 - 10/100/1000 Connector Pinouts
TIP The auto-MDIX feature is enabled by default.
23145678Pin Label
1
2
3
4
5
6
7
8
RD+
RD-
TD+
NC
NC
TD-
NC
NC
23145678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
