Allen-Bradley Stratix 5410 User Manual

116 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Chapter 4 Install Stratix 5410 Switches

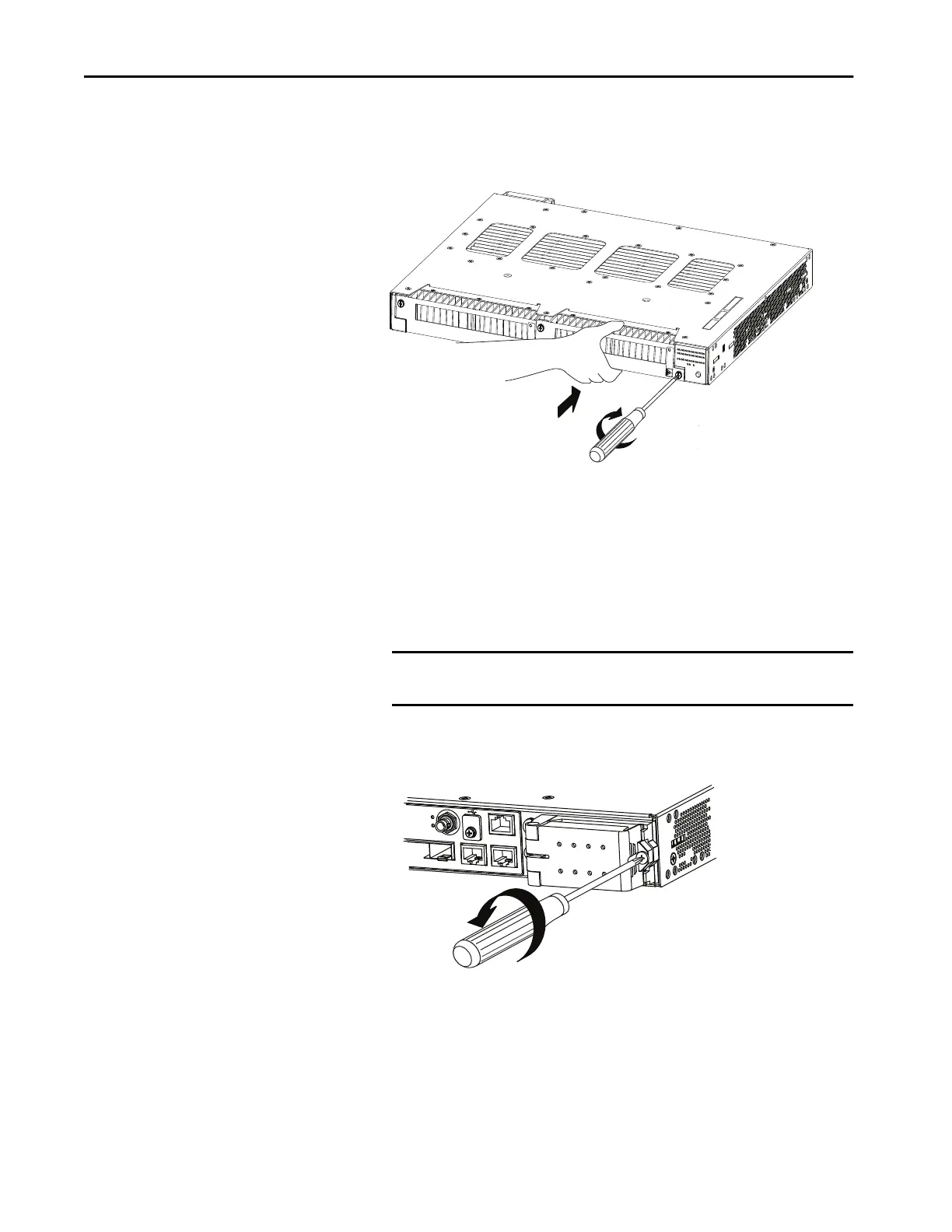

3. Insert the power supply module into the slot, and gently push it in.
When inserted correctly, the power-supply module is flush with the
switch.
4. Use a ratcheting torque screwdriver to torque each screw to 0.904…1.13
N•m (8…10 lb•in).
Wire the Power Source
To wire the power source, follow these steps.
1. Turn power off at the AC and DC circuits.
2. To loosen the captive screw on the power input terminal, use a Phillips
screwdriver.
PSU OK
P
W
R
-
RGD-
A
C
-
DC
PSU
OK
P
W
R
-
R
GD
-
A
C
-
D
C
32557-M
IMPORTANT If the power is not off at the AC or DC circuit breaker, do not touch
the power-input terminal.
32558-M
Con
s
ole
28
ANA.TimeCode
Alarm
TOD
IN
O
U
