Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 529

Cables and Connectors Appendix D

ArmorStratix 5700

Cables and Connectors

This section describes how to connect to ports on ArmorStratix 5700 switches.

For connecting DC power to the power connector, see

page 155.

10/100 Ports

The 10/100 Ethernet ports use M12 D-coded 4-pin connectors and Ethernet

pinouts with twisted-pair crossovers or straight-through cables.

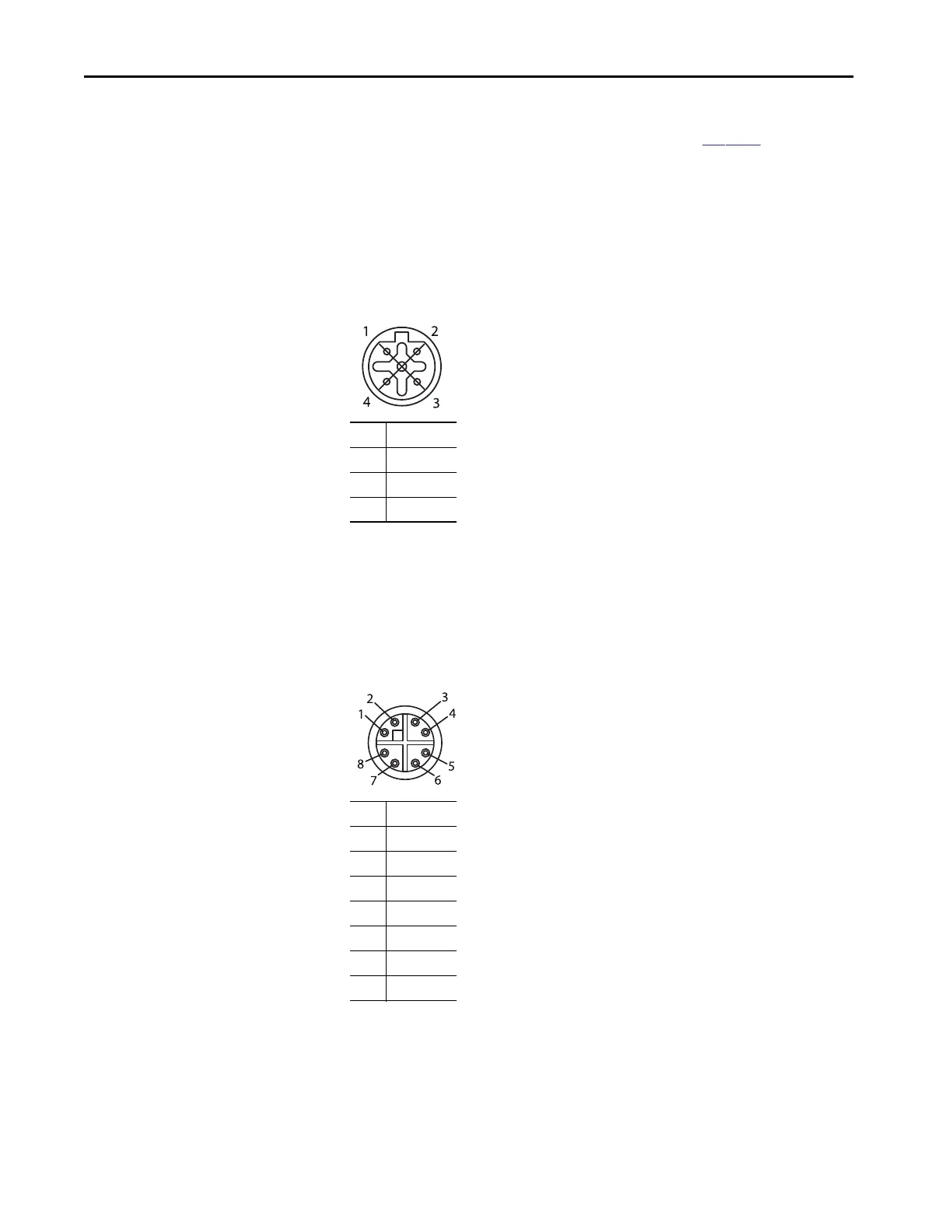

Figure 76 - 10/100 Connector Pinouts

100/1000 Ports

The 100/1000 Ethernet ports use M12 X-coded 8-pin connectors and

Ethernet pinouts with twisted-pair crossovers or straight-through cables.

Figure 77 - 100/1000 Connector Pinouts

1 RD+

2 TD+

3RD-

4TD-

1 BI_DA+

2 BI_DA-

3 BI_DB+

4 BI_DB-

5 BI_DD+

6 BI_DD-

7 BI_DC-

8 BI_DC+
