Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 533

Cables and Connectors Appendix D

Alarm Ports

Alarm ports are included only on ArmorStratix 5700 switches with PoE.

Figure 85 shows the front-panel alarm relay connector and ports. The alarm

connector uses a male 5-pin DC Micro-style (M12) connector configuration

cordset, such as Allen-Bradley Bulletin 889D.

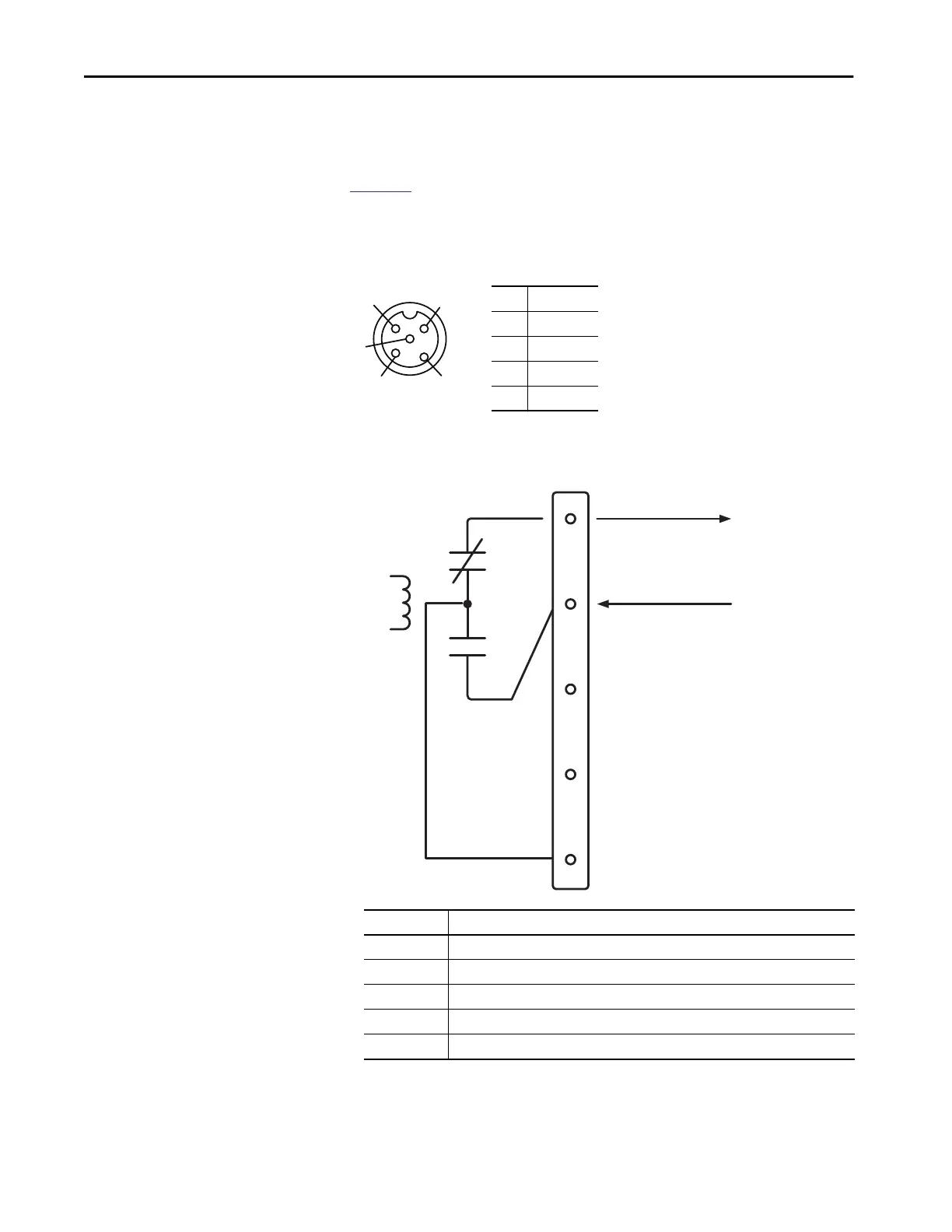

Figure 85 - Alarm Connector Pinout

Figure 86 - Wiring Example for Alarm Inputs and Outputs

1NO

2NC

3 Unconnected

4 Unconnected

5 Common

Alarm

Relay

Coil

+24V DC from User

To Alarm Input

Alarms Connector

COM

Label Connection

NO Alarm Output Normally Open (NO) connection

NC Alarm Output Normally Closed (NC) connection

Unconnected Unconnected

COM Alarm Output Common connection
