Chapter 5 Install Stratix 5700 Switches
Parts List and Required Tools
Verify that you have these items.
The PoE connector ships only with switch models with PoE ports. The
connector is required only if you plan to use PoE.
If needed, an SD card can be ordered separately from the switch.
Obtain these tools:
• Ratcheting torque screwdriver that exerts up to 1.69 N
•m (15 in•lbs) of
pressure
• Small, flat-blade screwdriver
• #6 ring terminal lug for 5.3 mm

(10 AWG) wire, such as Thomas &
Bett part number 10RC6 or equivalent
• Crimping tool, such as Thomas & Bett part number WT2000,
ERG-2001, or equivalent
• 5.3 mm
2
(10 AWG) copper ground wire, such as Belden part number
9912 or equivalent
• Wire-stripping tool
• For panel-mounting without a DIN rail, M5 or #10-24 or #10-32 bolts
or screws with 1.27 cm (0.5 in.) O.D. flat washers

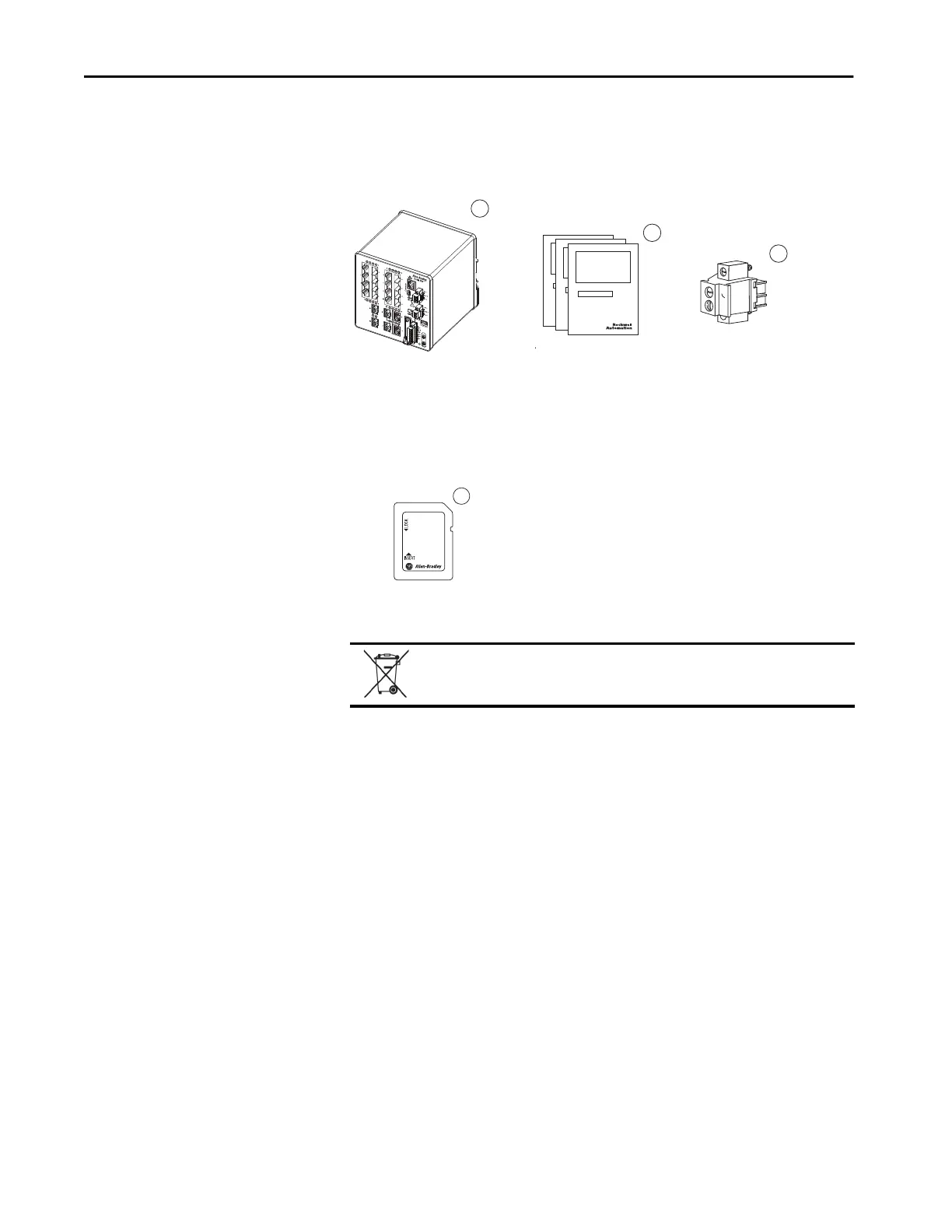

1 Stratix® 5700 switch
2 Documentation
3 PoE connector
4 SD card
At the end of its life, this equipment should be collected separately from any
unsorted municipal waste.
1
2
3
4
