78 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Chapter 3 Install Stratix 5400 Switches
Install or Remove the SD Card
A secure digital (SD) card ships with the Stratix 5400 switch. The SD card
contains the switch firmware and initial configuration. You can order a
replacement SD card from Rockwell Automation, catalog number 1784-SD1,
if needed. The replacement card ships without firmware and must be synced
with the internal memory of the switch. See
page 64.
To install or replace the SD card, follow these steps.
1. On the front of the switch, locate the door that protects the SD card
slot.
2. Loosen the captive thumb screw at the top of the door by using a
screwdriver to open the door.
3. Install or remove the card.

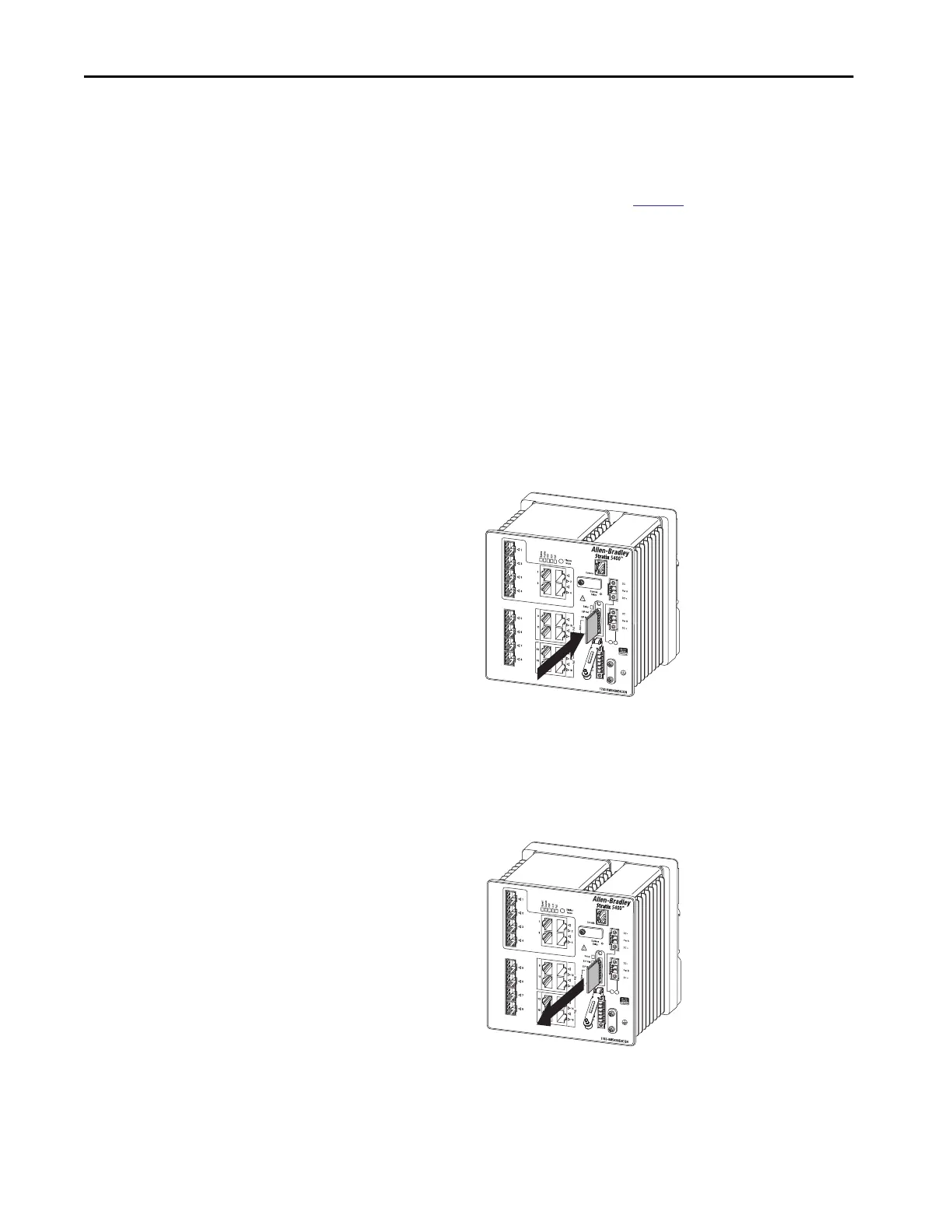

To install the card, slide it into the slot, and press it firmly in place until
it latches in the spring loaded mechanism. The card is keyed so that you
cannot fully insert it the wrong way.
•
To remove the card, push it in and let it pop out via the spring-loaded
mechanism. Grasp the card top and pull it out. Place it in an antistatic
bag to protect it from static discharge.
4. Close the guard door and fasten the captive screw by using a screwdriver
to keep the door in place.
32555-M
32556-M
