274 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Chapter 7 Configure Switch Features

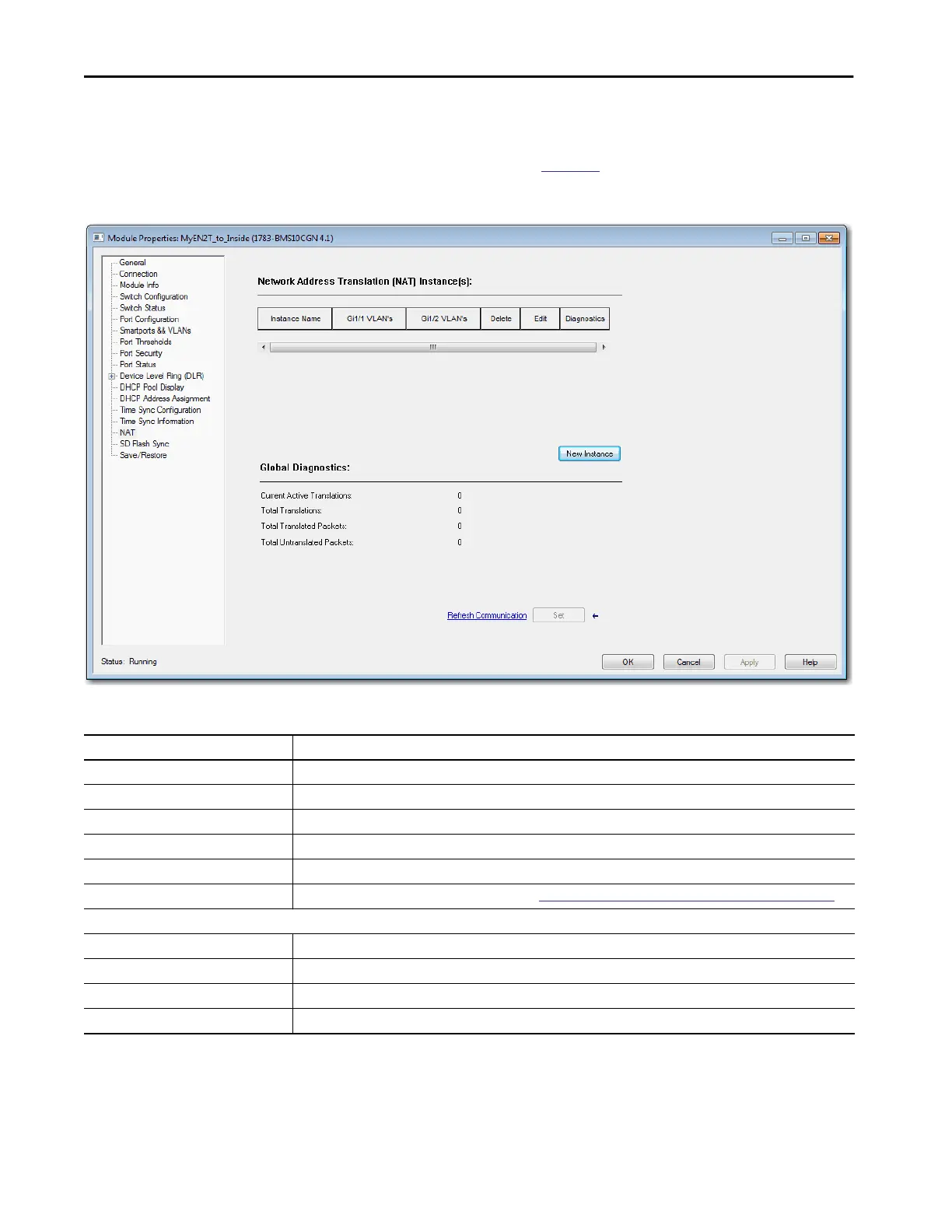

Configure NAT via the Logix Designer Application
For Stratix 5410 switches, see page 286.
In the navigation pane, click NAT.
Table 63 - NAT Fields
Field Description
Instance Name Displays the unique name of the NAT instance.
Gi1/1 VLANs Displays the VLANs assigned to each NAT instance on port Gi1/1.
Gi1/2 VLANs Displays the VLANs assigned to each NAT instance on port Gi1/2.
Delete Click to delete a NAT instance permanently. The switch deletes the instance when you click Set.
Edit Click to modify the configuration of a NAT instance.
Diagnostics Click to view translation diagnostics for an instance. See
Monitor NAT Statistics via the Logix Designer Application on page 399.
Global Diagnostics
Current Active Translations Displays the total number of translations that occurred within the last 90 seconds across all NAT instances.
Total Translations Displays the total number of translations across all NAT instances.
Total Translated Packets Displays the total number of translated packets across all NAT instances.
Total Untranslated Packets Displays the total number of packets that have been bypassed across all NAT instances.
