Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 177

Install Stratix 8000 and 8300 Switches Chapter 6

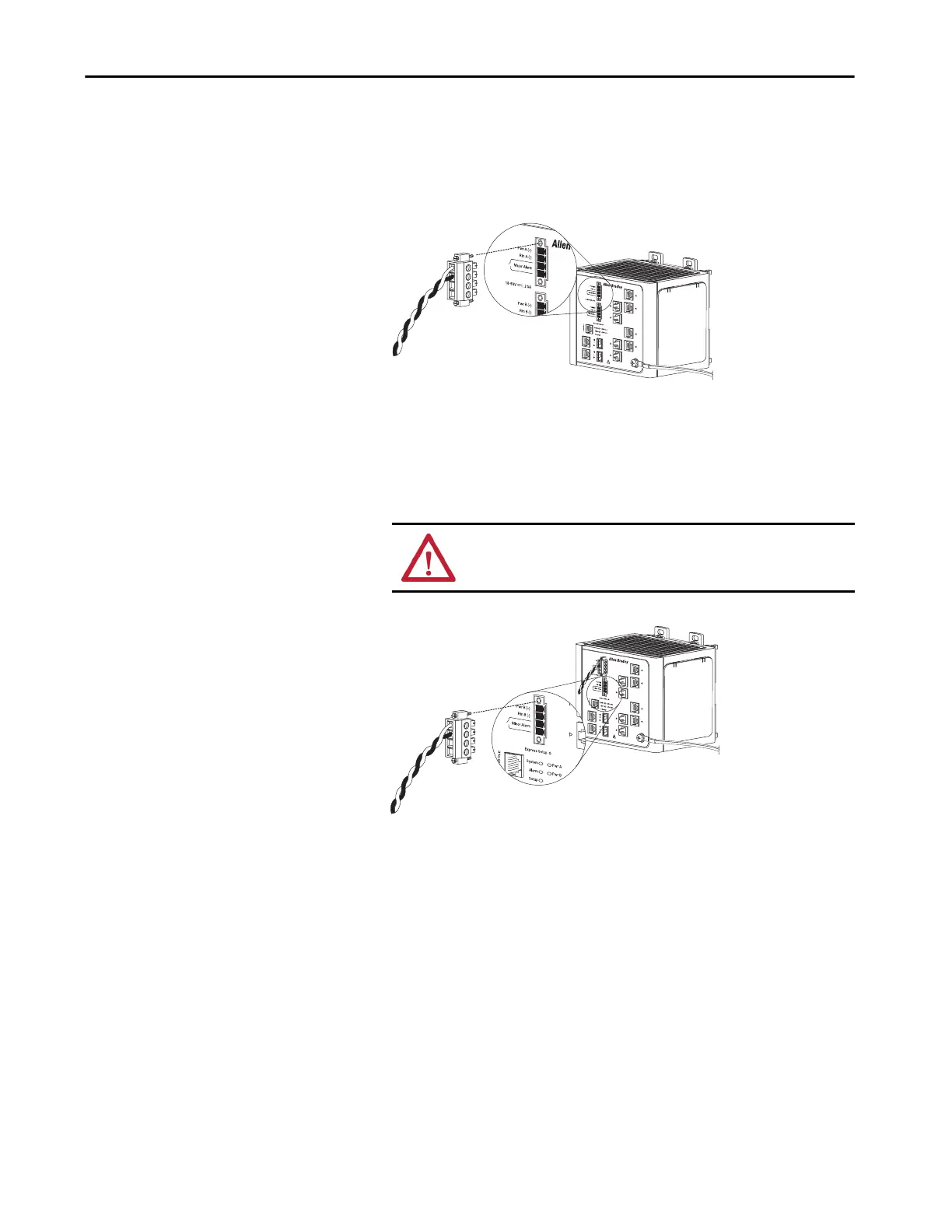

Follow these steps to connect the DC power source and relay connector to the

switch.

1. Insert the power and relay connector into the Pwr A receptacle on the

switch front panel.

2. Use a screwdriver to tighten the captive screws on the sides of the power

and relay connector.

3. If a second power source is required, insert a second power and relay

connector into the Pwr B receptacle on the switch front panel.

4. Use a screwdriver to tighten the captive screws on the sides of the second

power and relay connector.

ATTENTION: If multiple power sources are used, do not exceed the

specified isolation voltage

VRTA A

31786-M

VRTA A

31788-M

VRTA A
