Configure Switch Features Chapter 7

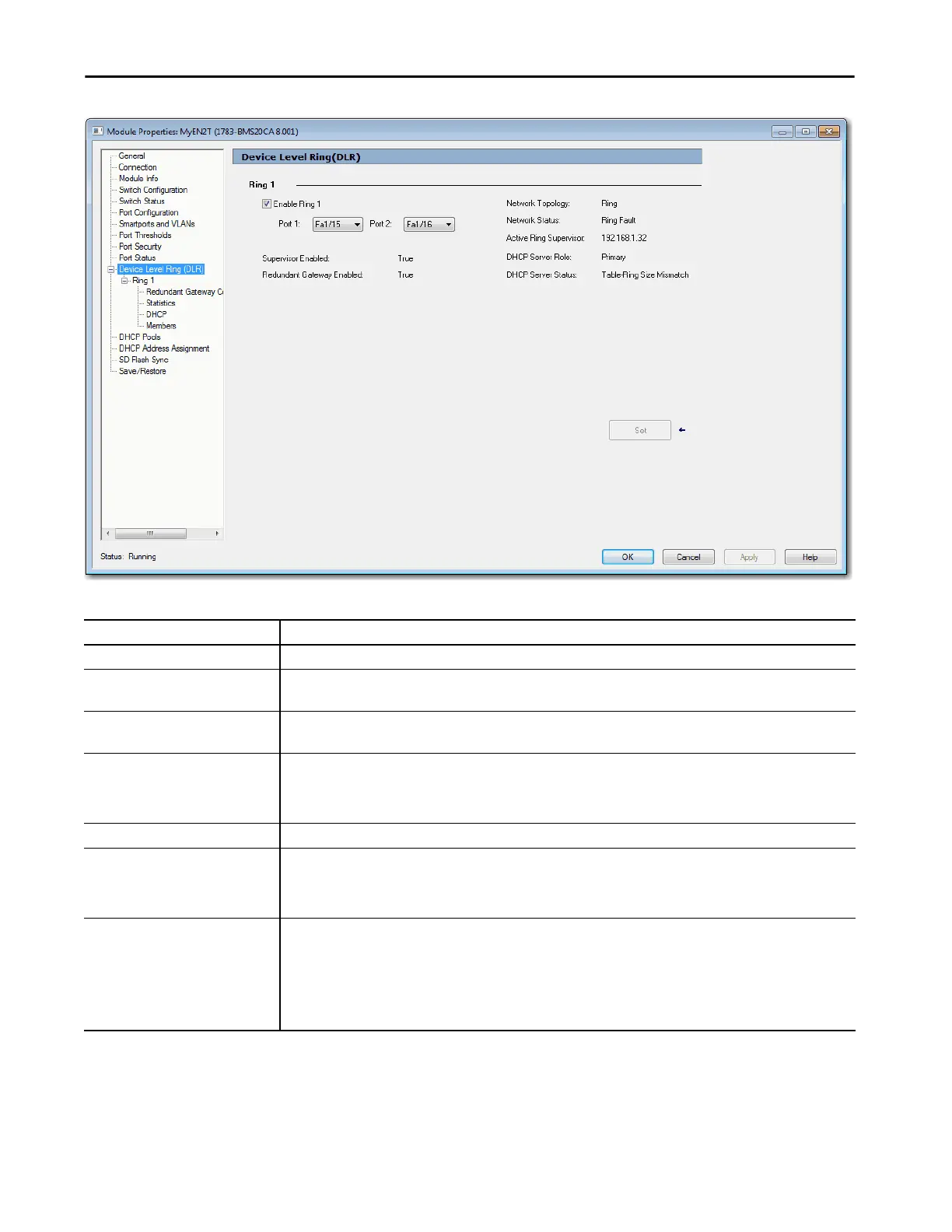

Table 46 - Device Level Ring (DLR) Fields
Field Description
Enable Ring 1/Enable Ring 2/Enable Ring 3 Check to enable DLR on the ports that are specified in the associated Port 1 and Port 2 fields for the ring.
Port 1 Choose a ring port. The default value is None.
This field is unavailable if the Enable Ring 1 checkbox is cleared.
Port 2 Choose a ring port. Port 1 and Port 2 cannot be the same port. The default value is None.
This field is unavailable if the Enable Ring 1 checkbox is cleared.
Supervisor Enabled Displays whether the switch is a ring supervisor.
Valid values:
• True— The switch is a ring supervisor.
• False—The switch is a ring node.
Redundant Gateway Enabled Displays whether redundant gateways are enabled for the ring.
Network Topology Displays whether the switch is operating in a DLR or linear network.
Valid values:
• Ring
• Linear
Network Status Displays the status of the network.
Valid values:
• Normal
• Ring Fault
• Unexpected Loop Detected
• Partial Network Fault
• Rapid Fault/Restore Cycle
