276 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Chapter 7 Configure Switch Features
2. In the Name field, type a unique name to identify the instance.
The instance name cannot include spaces or exceed 32 characters.
3. In the VLAN Association area, check the checkbox next to each VLAN
to assign to the instance.
For more information about VLAN assignments, see
page 260.

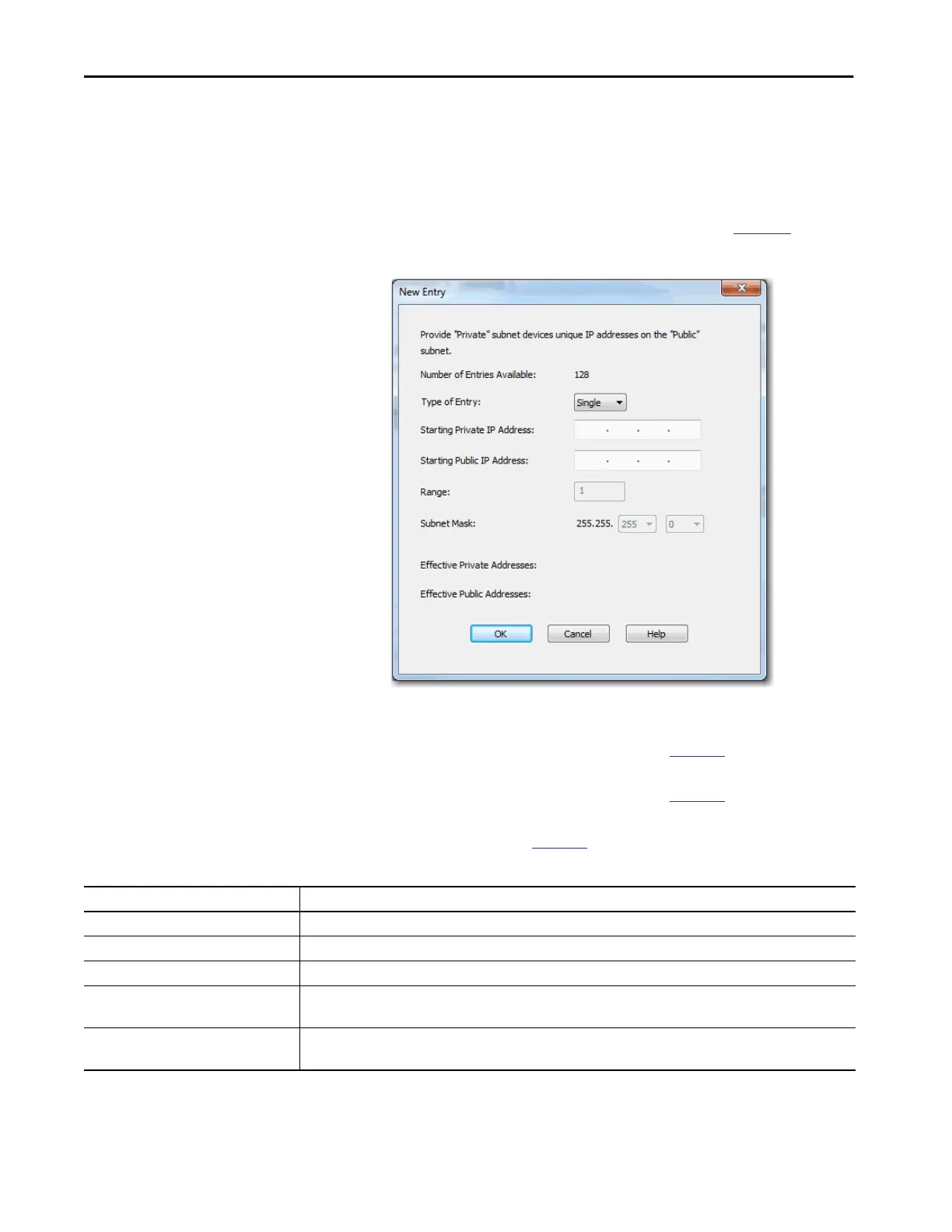

4. Click New Entry to display the New Entry dialog box.
5. Do one of the following:
• To translate one address for a device on the private subnet that
communicates on the public subnet, see
Table 64.
• To translate a range of addresses for devices on the private subnet that
communicates on the public subnet, see
Table 65.
• To translate all addresses in the private subnet or a portion of the
private subnet, see
Table 66.
Table 64 - Single Translation
Field Description
Type of Entry Choose Single. Single is the default value.
Starting Private IP Address Type the existing address for the device on the private subnet.
Starting Public IP Address Type a unique public address to represent the device.
Effective Private Addresses Displays the existing address for the device on the private subnet that is configured for translation.
If blank, verify that the values in the preceding fields are valid.
Effective Public Addresses Displays the unique public address to represent the device.
If blank, verify that the values in the preceding fields are valid.
