Chapter 7 Configure Switch Features
For Stratix 8000/8300 switches, in the navigation pane, click Advanced Port
Configuration.

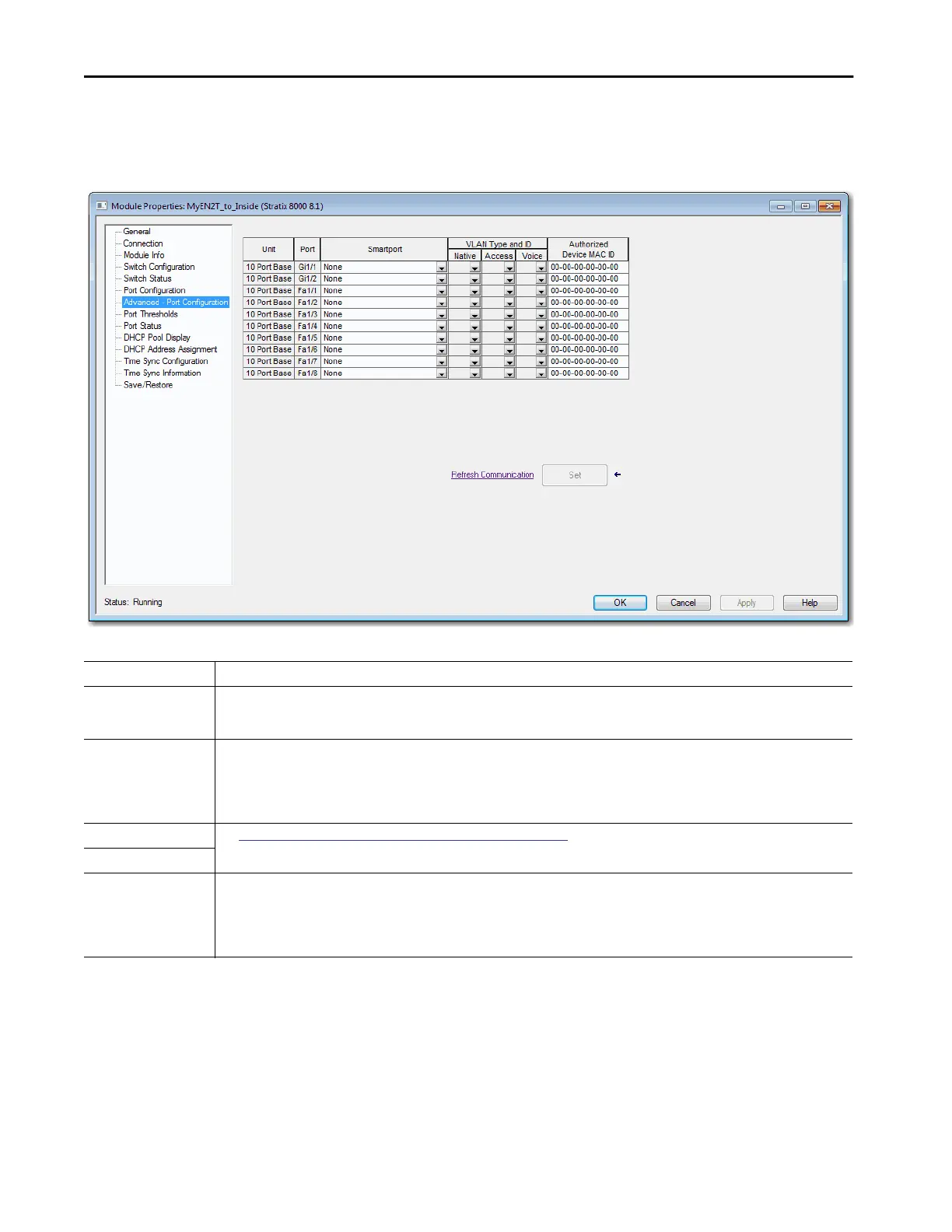

Figure 33 - Advanced Port Configuration for Stratix 8000/8300 Switches
Table 79 - Advanced Port Configuration Fields for Stratix 8000/8300 Switches
Field Description
Unit Indicates where the port resides:
• Base (for example, 1783-MS10T).
• Expansion module (for example, 1783-MX08T).
Port Indicates the port that is selected for configuration.
The port number includes the port type (Fa for Fast Ethernet and Gi for Gigabit Ethernet), the base or expansion module number (1, 2, or 3), and the
specific port number, such as in the following examples:
• Gi1/1 is Gigabit Ethernet port 1 on the base.
• Fa2/1 is Fast Ethernet port 1 on the first expansion module.
Smartport See
Assign Smartports and VLANs via the Logix Designer Application on page 358.
VLAN Type and ID
Authorized Device MAC ID To authorize a specific MAC address to communicate on the port, type the MAC address of the device that is connected to the port. You can authorize
only one MAC address to communicate on the port. If other MAC addresses communicate on the port, they are blocked. This feature must not be set
for ports that are connected to other switches or routers.
The MAC address is also known as Ethernet address, physical address, or hardware address. Each node on the network has a unique MAC address.
The MAC ID is six hexadecimal numbers, such as 00-00-BC-22-A0-D8.
