Chapter 8 Monitor the Switch

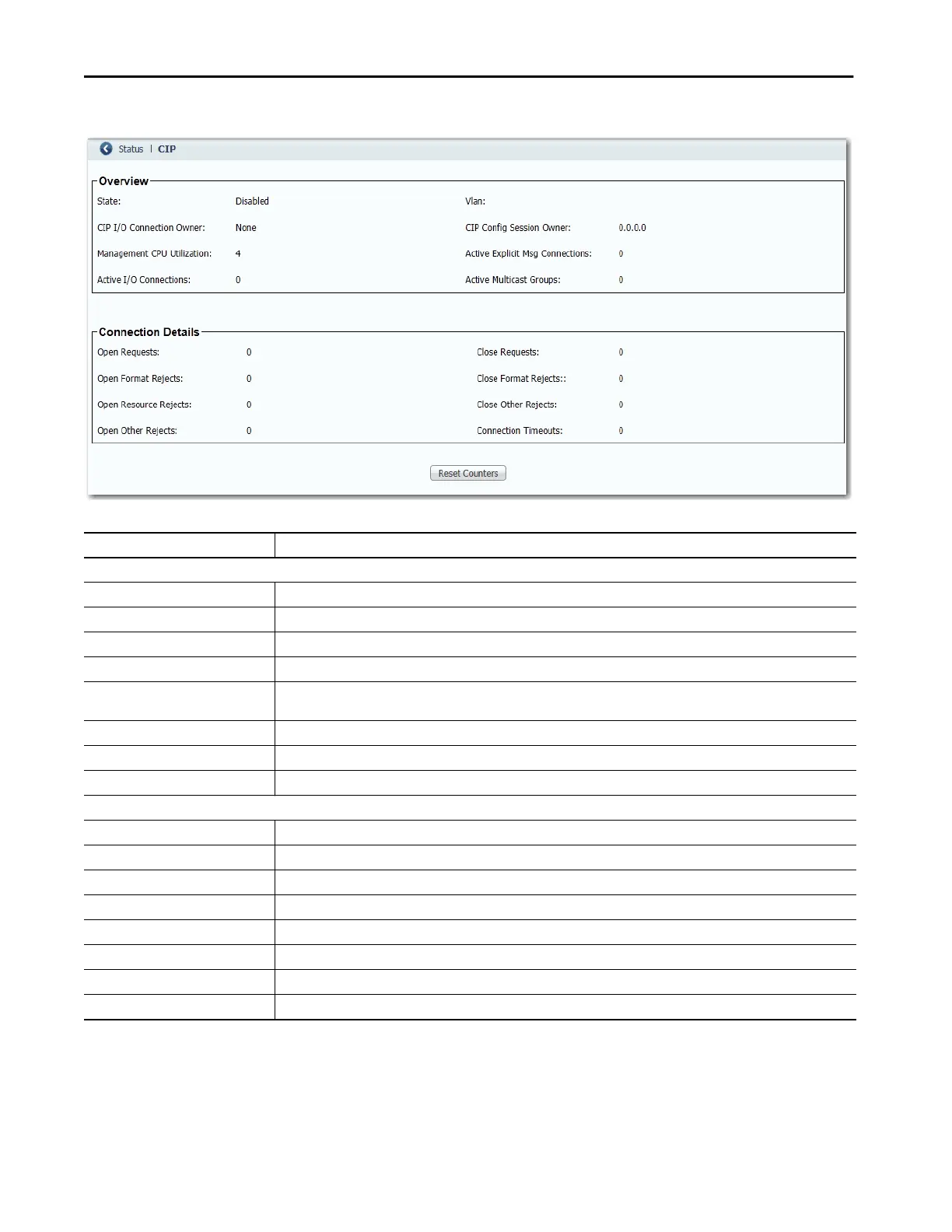

From the Monitor menu, choose CIP Status.
Table 113 - CIP Status Fields
Field Description
Overview
State The state of the CIP connection (Enabled or Disabled).
Vlan The VLAN ID.
CIP I/O Connection Owner The IP address of the device to and from which application-specific I/O output data is sent and received.
CIP Config Session Owner The IP address of the device controlling the CIP configuration session.
Management CPU Utilization (%) Percentage of the Management CPU used for management functions. Switch functions have dedicated ASICs. Management functions
do not impact the ASICs.
Active Explicit Msg Connections The number of active, explicit messaging connections to the switch as a target.
Active I/O Connections The number of active I/O connections with the switch as a target.
Active Multicast Groups The number of multicast groups, including CIP multicast groups that flow through the switch.
Connection Details
Open Requests The number of Forward Open requests received by the switch to establish a connection with the switch.
Close Requests The number of Forward Close requests received by the switch after a connection was successfully established with the switch.
Open Format Rejects The number of Forward Open requests directed to the switch that failed because the request is not in the proper format.
Close Format Rejects The number of Forward Close requests directed to the switch that failed because the request is not in the proper format.
Open Resource Rejects The number of Forward Open requests that failed to establish a new connection for reasons such as insufficient memory.
Close Other Rejects The number of Forward Close requests that failed for reasons such as incompatible electronic keying.
Open Other Rejects The number of Forward Open requests that failed for reasons such as incompatible electronic keying.
Connection Timeouts The number of CIP connections that timed out due to inactivity.
